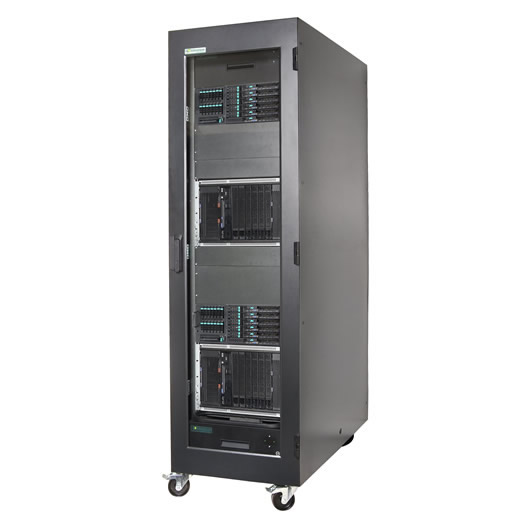

AcoustiRACK ACTIVE 33U Soundproof Quiet Rackmount Cabinet

AcoustiRACK® Active is a range of soundproofed quiet rack mount cabinets using exciting Anti Noise technology that handles whatever noisy IT equipment you need to put in a standard 19" enclosure. The AcoustiRACK® Active range is the only soundproof rack to incorporate Silentium's proprietary Active Noise Control (ANC) technology and it is based on an adapted Knurr rack design. And is approved by HP! By combining traditional soundproofing techniques with noise cancelling technology spatial noise reduction can be achieved across the entire noise frequency range.

AcoustiRACK ACTIVE® 33U Soundproof Rackmount Cabinet

Manufacturers figures are as follows:

• Noise reduction in the range 20 dB(A) to 30 dB(A)
• Maximum thermal load: up to 8.0 kW (27,312 BTU/hr) - thermostatically controlled

The AcoustiRACK® Active comes in 2 main heights with a useable capacity of 15 & 33U rack spaces (physical 23U & 42U), both are 1200mm deep.

The US products are:

• MARA15U-1200 unit 15U (based on Knurr 23U)
• MARA33U-1200 unit 33U (based on Knurr 41U)

The AcoustiRACK® has been designed to trap and absorb unwanted noise generated inside the rack, while actively allowing free air movement and heat exchange with the outside of the unit, resulting in up to 8KW cooling/heat dissipation. The thermal performance of the AcoustiRACK® ACTIVE is driven by two fan modules, one located at the top and one at the bottom of the cabinet. These fan modules provide forced air-flow into and out of the rack. Silentium’s proprietary noise-cancelling technology is highly effective in reducing low-frequency noises.

Once combined with unique high quality acoustic materials, this product achieves unprecedented spatial noise reduction over the entire frequency bandwidth of the audible spectrum of up to 20dBA to 30dBA. These high performances are achieved by using the patent pending modular Active Silenced Fan Tray™ (ASFTTM) units.

AcoustiRACK® ACTIVE 33U Rackmount Enclosure Specifications

Useful Videos

For more information on Quiet Racks please view the following videos on www.quiet-rack.com:-

Quiet Racks and their Benefits

IT Noise, and Thermals and How to Deploy a Quiet Rack.
