The SWiF (short for "Silent Whisper Fan") series is a result of Coolink's long experience as an OEM supplier and continues the tradition of superior fan quality that has convinced hundreds and thousands of users over the years. The high-precision double ball bearing ensures optimal, long-term stable quietness, making the transparent-blue SWiF fans a perfect synthesis of excellent silent-performance, exciting design and reliable quality.

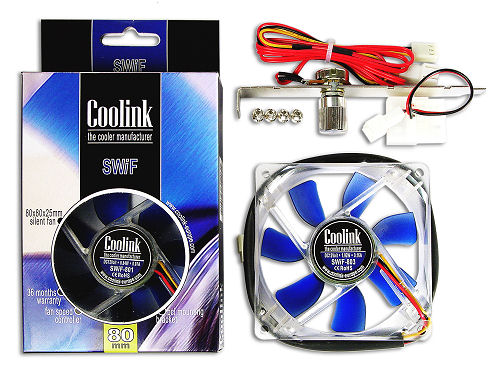

Coolink SWiF-802 80mm Case Fan
Specifications
| Fan size (edge to edge) |
80 mm |
| Manufacturer |
Coolink |
| Model |
SWiF-802 |
| Air volume at full speed (12V), m3/h ±10% |
50 |
| Noise level at full speed (12V), dB(A) |
19.0 |
| Fan speed at full speed (12V), RPM ±10% |
2000 |
| Power consumption, W |
1.20 |
| Weight, g |
132 |
| Approximate cable length, cm |
30 |
| Life expectancy @ 25°C continuous use |
3 years |
| Power connector |
3-pin |
| Bearing type |
2-Ball |
| Mounting hardware included |
Screws |
| Fan depth |
25 mm |
| Rated voltage |
12 VDC |
Features
- Excellent airflow performance at minimal noise levels
- High precision double ball bearing
- Protective cable sleeving
- Includes 3 to 4 pin adapter
- Includes 4 metal fan mounting screws
- Manual fan speed control
- PCI mounting bracket for adjustable fan speed knob
- 36 months warranty
