It is all about efficiency, so goes the public mind. But being 82+ efficient was the minimum goal for Enermax's engineers. Enermax wanted to create the best power supply series in any regard and to have a worthy successor to the 1kW-class defining GALAXY & GALAXY DXX series’. By making GALAXY EVO as the world’s first power supply to be FUTURE CPU ready! & FUTURE GPU ready!, and Enermax have achieved it!

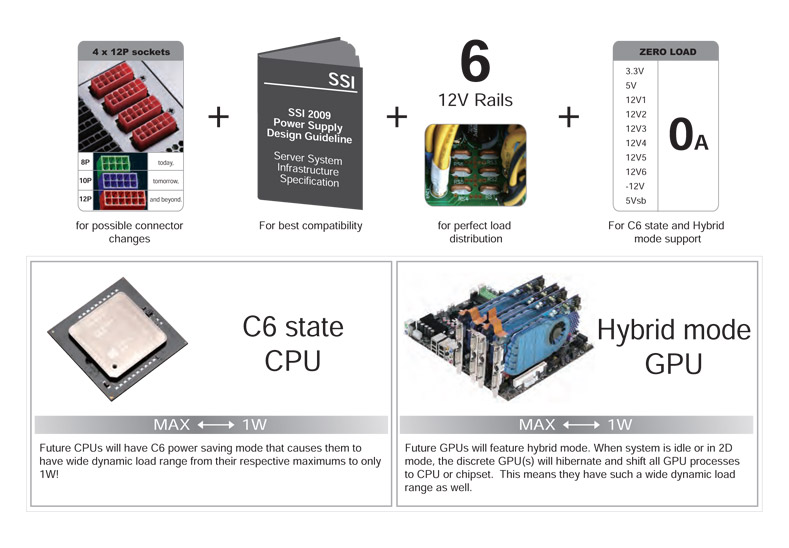

Normally, nobody can dare to claim such, but Enermax can, because they have implemented everything necessary for the future: Four 12p sockets for possible connector changes & six massive 12V rails of 30A each for perfect load distribution and flexibility, no matter what is coming up. Besides complying already to the upcoming EPS12V power supply Design Guide, especially the ZERO LOAD Design assures compatibility. By needing no load at all, Enermax anticipates to have no issues at all with any new CPU or GPU or their features like C6 state or Hybrid Modes.
Move
Enermax Galaxy Evo PSU.
Enermax Galaxy Evo PSU.
Enermax Galaxy Evo PSU.
Enermax Galaxy Evo PSU.
Enermax Galaxy Evo PSU.

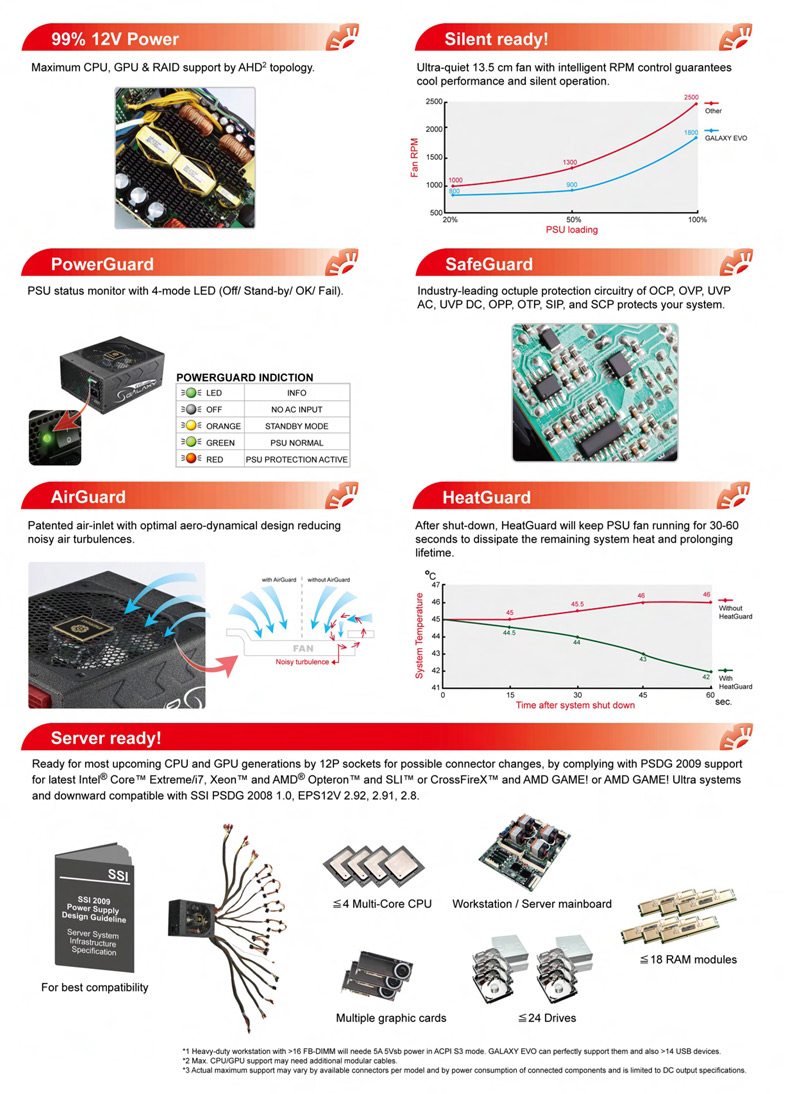

Enermax Revolution 85+ Features
| 82PLUS READY! |
High performance PSU series with max. 89% efficiency@20-100% load. Certified by 80 PLUS® organization |
12 CPU/GPU
24 DRIVES MAX
|
The world's most advanced design supporting the most diverse CPU, GPU & drive connector configurations. |
| FUTURE CPU READY! |
Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V power supply design guides for compatibility & by ZERO LOAD Design for C6 state functions. |
| FUTURE GPU READY! |
Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by six massive 12V rails for perfect load distribution & by ZERO LOAD Design for Hybrid Mode functions. |
| 24/7 @ 50°C READY! |
Non-Stop industrial class performance at 50°C/122°F ambient. |
| AHD²² Topology |
Industry-leading "Asymmetric Hybrid DC-to-DC" topology with the world’s highest efficiency & most stable performance. |
| CrossFireX™ Certified |
(ENERMAX Galaxy EVO 1250W CrossFireX™, EGX1250EWT-01)
© 2007 Advanced Micro Devices, Inc., ATI, the ATI logo, CrossFireX, and Radeon are combinations thereof are trademarks of Advanced Micro Devices, Inc. |
| SILENT READY! |
Ultra-quiet 13.5cm fan with intelligent RPM control guarantees cool performance and silent operation. |
| PowerGuard |
PSU status monitor with 4-mode LED (Off / Stand-by / OK / Fail). |
| SafeGuard |
Industrial-leading "Asymmetric Hybrid DC-toDC" topology with the world's highest efficiency & stability. |
| AirGuard |
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulence's. |
| HeatGuard |
Keeps the power supply fan running for 30-60 seconds after shut down to dissipate the remaining system heat prolonging lifetime by up to 20%. |
| 99% 12V Power |
World's first EPS12V PSU with 99% 12V output capability. |
| SERVER READY! |
SSI PSDG 2009 support for latest Intel® Core™ Extreme/i7, Xeon™ and AMD® Opteron™ and SLI™ or CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8. |
| DXX READY! |
For PCI Express 2.0/DXX next-generation graphic cards with 6+2P (8P) PCIe connectors. |
| EMC READY! |
Full-scale electromagnetic filtering protects your system against radiation interferences. (CE EMC EN61204 compliance). |

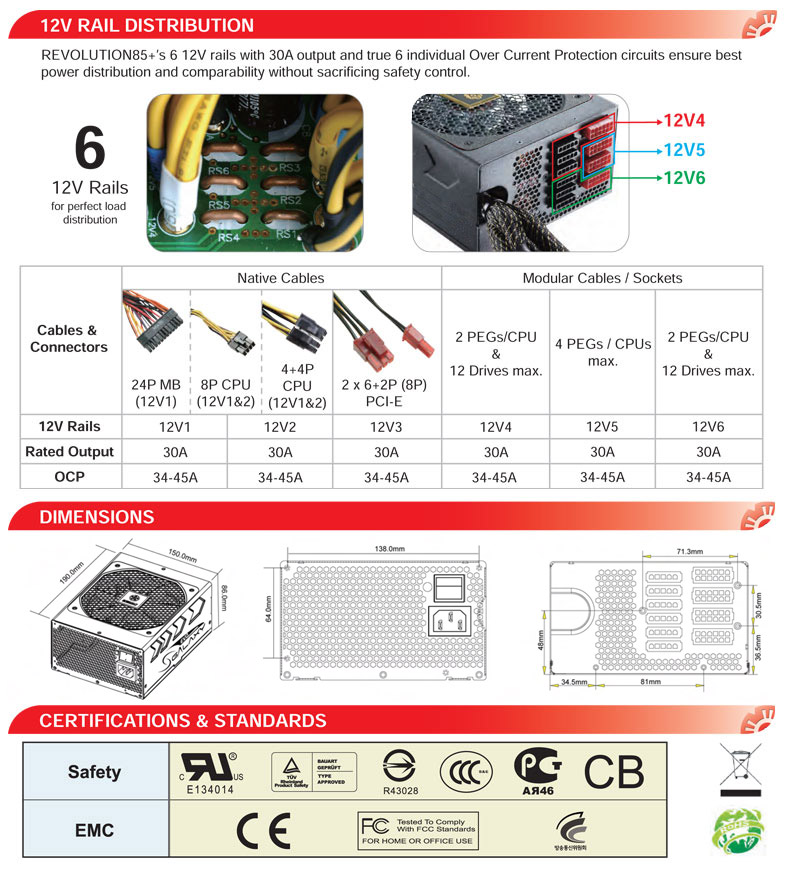

PSU Specification
| Enermax Galaxy Evo 1250W PSU Specification |
| Model |
ENERMAX GALAXY EVO EGX1250EWT-01 |
| AC input |
115-240VAC, 50-60hz, 11-5.5A, Active PFC (Maximum range: 100-264VAC, 47-63Hz) |
| DC output |
Rated |
3.3V |
5V |
12V1 |
12V2 |
12V3 |
12V4 |
12V5 |
12V6 |
-12V |
5Vsb |
| 0-25A |
0-25A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-0.6A |
0-5A |
| Combined |
170W |
1248W (104A) |
7.2W |
25W |
| Total Power |
1250W |
| Peak Power |
1500W |
| Environment |
| Temperature |
Operation ambient: 0~50°C/32~122°F (for full rated output) |
| Storage ambient: -40~70°C/-40~158°F |
| Humidity |
Operation: to 85% relative humidity, non-condensing at 25 °C/77°F |
| Storage: to 95% relative humidity, non-condensing at 50°C/122°F |
| Others |
| Cooling |
One 13.5cm two-ball bearing fan, speed auto controlled. |
| 800-1800RPM |
| MTBF |
> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25 °C |
| (MIL-HDBK-217F standard) |
| Dimension |
150 (w) x 86 (h) x 190 (d) mm |
| Weight |
2.95kg (without modular cables) ±50g |
| Safety |
UL/cUL(Level 6), TUV, CCC, GOST, CB |
| EMC |
CE, FCC, MIC |
Power Supply Unit Reviews
| Enermax Galaxy Evo Reviews |
There are six +12V rails 30A each, with a combined power of 104A. With performance, efficiency, good looks and a quiet135mm fan, what's not to like! For more reviews go to 3DGameman.com |
 |
Enermax took what was already a spectacular platform and made it more spectacular with the Evo Galaxy 1250W! Read the full review at Jonny Guru.com |
 |
NEW Warranty Upgrade
ENERMAX is pleased to announce the upgrade of its current 3 year warranty on GALAXY EVO series to 5 years.
The warranty upgrade is not only valid for newly sold units, but retroactively for all units sold. Owners of these models can simply consider their units to have a 5 year warranty. No additional registration or action is required.
"This warranty upgrade is part of our ongoing 20-year anniversary campaign throughout 2010 to celebrate our achievements during this period and to give back to our valued customers a part of the trust and appreciation, they have shown to us in these 20 years", Steven Su, founder & president of ENERMAX, elaborates. "When we started 20 years ago, we had yet to establish ourselves in the industry by the innovative energy we stand for today. Our two flagship PSU series' exemplify our spirit and thus we wanted to match their warranty with what they stand for."
