Enermax Modu82+ II 625W ATX Quiet Power Supply

Efficiency is a key factor in modern systems. Organizations such as Climate Saver Computing™ are focused on improving the efficiency of a computer’s power delivery. Today’s average desktop PC wastes over half of the power delivered to it, and the wasted electricity unnecessarily increases the cost to power computers as well as the emissions of greenhouse gases. Enermax is committed to reduce this waste and to combat climate change by meeting and exceeding Climate Saver Computing guidelines, setting new benchmarks for the PC PSU industry by reaching 82-88% efficiency with all of the new MODU82+ II and PRO82+ II series at 20%-100% load.

These new power supplies are also some of the quietest units in the world thanks to two new patented technologies: SpeedGuard and AirGuard. SpeedGuard allows the PSU fan to operate only at 400 to 500 rpm when the power supplies are under 50% load. It lowers the total noise profile by an astonishing 5 dBA. AirGuard is a mechanical design which bends the housing around the air-inlet to the fan and it help to reduce the total noise level by up to 2 dBA.

Besides being one of the first that complies with Intel’s ATX12V v2.3 standards, MODU82+ II and PRO82+ II offers some of the strongest +12V rails in its class. Both series are rated at 40°C with triple +12 rails that can support up to an amazing 25A on each rail. In addition, The MODU82+ II series come with 12 pin modular connectors that present endless combinations and possibilities for future CPU and graphic needs.



Hide Thumbs

First

Previous

Pause

Next

Last

Set Speed Slideshow speed: 5 seconds

Move

Enermax Modu82+ II PSU

•
  Enermax Modu82+ II quiet power supply.
•
  Enermax Modu 82+ II PSU side view showing modular sockets.
•
  Enermax Modu 82+ II efficiency.



Enermax MODU 82+ II 625 Watt Features

ATX12V v2.3 ready: Compliant with the newest standard for desktop power supplies.

82PLUS ready: 82-88% efficiency @ 20-100% load. Compliant with 80 PLUS® BRONZE efficiency requirements.

DXXI ready: 100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.

AMD® CrossFireX™ certified: ENERMAX MODU82+ II 425/525/625W CrossFireX™, EMD425AWT II-01 / EMD525AWT II-01 / EMD625AWT II-01.

Certified by AMD® for GAME! ready systems: The AMD team tests & validates all key features of a product before it can be communicated as AMD GAME! product. This includes hardware stability, interoperability and performance testing.

24/7 @ 40°C ready: Non-Stop industrial class performance at 40°C/104°F ambient.

FUTURE ready: 12Pin modular design for possibly upcoming new CPU's and graphics 10 and/or 12Pin connectors.

SpeedGuard: Advanced fuzzy logic 12cm fan speed control for optimal cooling and minimum noise (Patented).

AirGuard: Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.

HeatGuard: Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.

CordGuard: Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

GAMING ready: ATX12V v2.3 support for latest Intel® Core™ 2 Duo/Quad/Extreme/i7/i5,and AMD® Athlon™ 64X2 & Phenom™ II and CrossFireX™.

SafeGuard: Industry-leading octuple protection circuitry of OCP, OVP, DC UVP, AC UVP, OPP, OTP, SCP & SIP.

TRIPLE 12V rails: The best rail design for this PSU class for maximum safety and compatibility.

100% Japanese Electrolytic Capacitors: Highest components standards for maximum durability and stability.

WORLD ready: 100-240VAC in with automatic adjustment and active PFC for global usage.

New Free Fan: To start the celebrations of ENERMAX' 20-year Anniversary in 2010, a free fan is included in the retail box. It is a special version of ENERMAX' TWISTER Bearing-based MAGMA series with additional HALO Frame cut-outs to reduce turbulence.

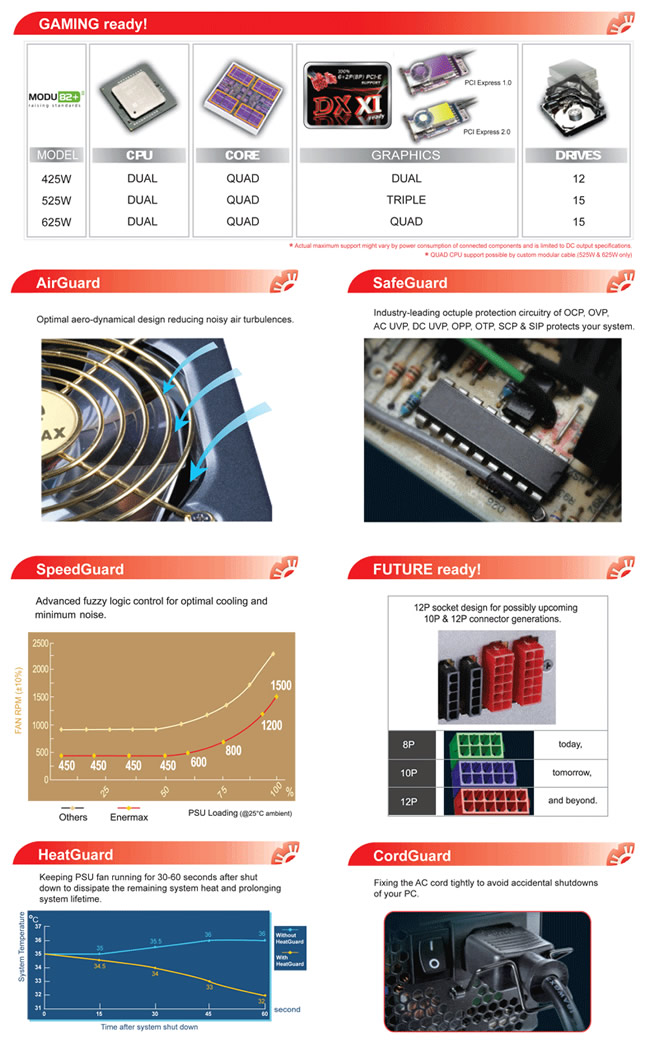

Enermax Modu 82+ II PSU Features.

PSU Specification
