Enermax have produced a new modular quiet power supply with 80 PLUS® Bronze rating - the
NAXN 82+ 750W.
Move

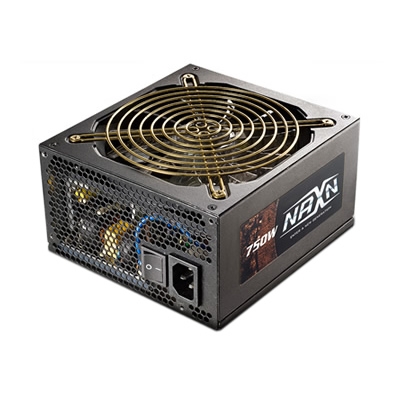

Enermax NAXN 82+ 750W Quiet Power Supply.
Enermax NAXN 82+ 750W Quiet Power Supply.
Enermax NAXN 82+ 750W Quiet Power Supply.
Enermax NAXN 82+ 750W Quiet Power Supply.
Enermax NAXN 82+ 750W Quiet Power Supply.
Enermax NAXN 82+ 750W Features

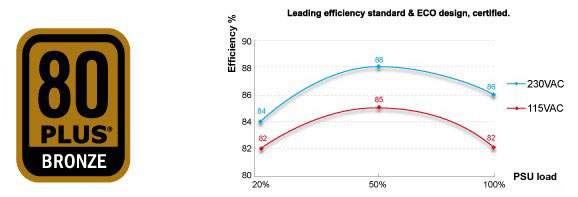

82PLUS Ready! Compliant with
80 PLUS® Bronze efficiency requirements.

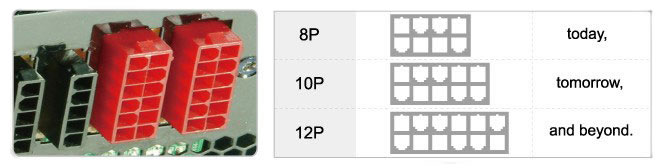

FUTURE Ready! 12P modular
socket design for future CPU's and graphics connectors.

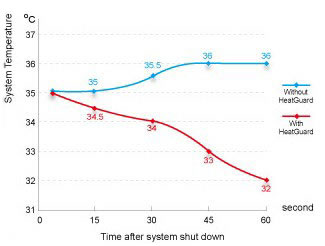

Heatguard: Keeps fan running
30-60 seconds after shutdown to dissipate system heat.
SafeGuards Your System: Multiple
protection circuitry of OVP, UVP, SCP, OPP, and SIP.
Enermax NAXN 82+ 750W Cables and Connectors
PSU Specification
| Enermax NAXN 82+ 750 Watt Power Supply Technical Specification |
| |
ENM750AWT |
| AC Input Voltage |
100~240VAC, 47~63Hz |
| AC Input Current |
10A |
| DC Output Rating |
Rated |
Combined |
| +3.3V |
22A |
130W |
| +5V |
22A |
| +12V1 |
35A |
648W (54A) |
| +12V2 |
35A |
| +12V3 |
- |
- |
| +12V4 |
- |
- |
| -12V |
0.3A |
3.6W |
| +5Vsb |
0.3A |
15W |
| Total Power |
750W |
Power Supply Unit Reviews
| Enermax NAXN82+ 750W Reviews |
The Enermax NAXN 750 W has an advantage against these other products having a modular cabling system. Read the full review at HardwareSecrets.com |
 |
The NAXN 82+ 750W unit was one of the quietest power supplies we have ever tested, generating only 27.2dBA at 70% load. Read the full review at vr-zone.com |
 |
Enermax has done a fine job with the NAXN 82+ 750W and offers consumers a very complete package not only for today but far into the future. The NANX 82+ 750W is DXXI ready for upcoming models which may require two 8-Pin PCI-E connectors per card. For gamers to be ready for these cards they might want to take a close look at this unit. Read the full review at ClubOverclocker.com |
 |
