After the successful introduction of the NF-P12 120mm fan in November, Noctua presented today their first 92mm retail fan: The NF-B9 complements Noctua's much acclaimed 80 and 120mm fan series, which have been recommended by over 150 international websites and magazines, and achieves outstanding airflow and pressure performance at exceptionally low noise levels.
The NF-B9's highly-optimized blade design achieves an exceptional level of airflow and static pressure that most other fans can only reach at much higher speeds. Bevelled blade tips, Vortex-Control Notches as well as Noctua's SCD drive system and premium-grade SSO-Bearing ensure outstanding quietness and long-term stability.
Move

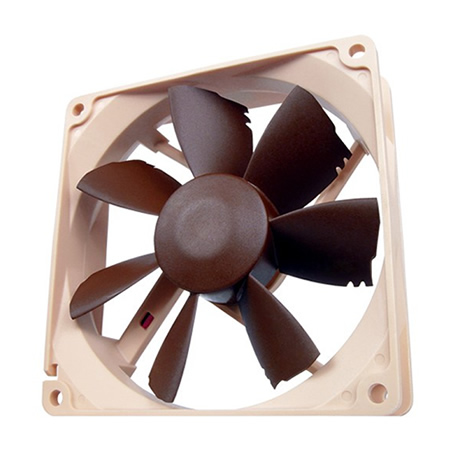

Noctua NF-B9 Quiet 92mm Cooling Fan.

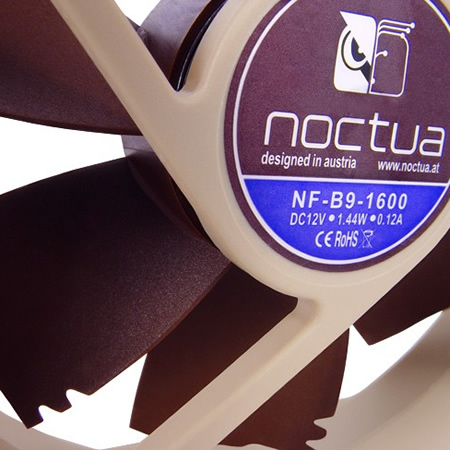

Noctua NF-B9 Quiet 92mm Cooling Fan uses SSO-Bearing technology.

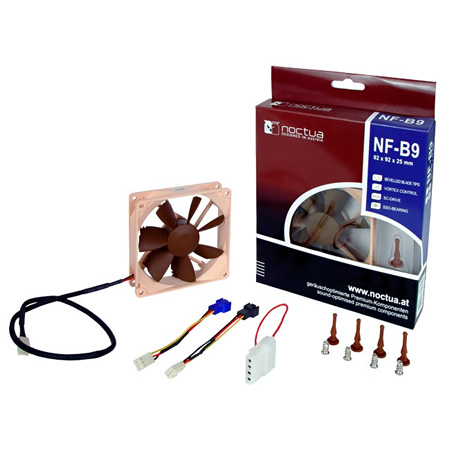

Noctua NF-B9 Quiet 92mm Cooling Fan with Components and Retail Packaging.
Noctua NF-B9 Quiet 92mm Cooling Fan Retail Packaging.
The NF-B9 has been specifically developed for applications such as CPU coolers that demand superior pressure and airflow performance. Thanks to psychoacoustic optimizations like the Vortex-Control Notches, the new SCD Drive System and Noctua's premium-grade SSO-Bearing, the NF-B9 achieves exceptional quietness and long-term stability.
For more information on the technical background of the fan please visit Noctua's website.
Fan Features
 |
Beveled Blade Tips
Due to advanced design measures like the beveled blade tips, the NF-B9 is surprisingly quiet despite its outstanding airflow and pressure performance. |
 |
Vortex-Control Notches
Psychoacoustic optimizations like the Vortex-Control Notches make the NF-B9's noise pattern more pleasant to the human ear. |
 |
Smooth Commutation Drive
The new SC drive system reduces torque variations and thereby ensures improved running smoothness, particularly at lower speeds. |
 |
Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability. |
Noctua NF-B9 Cooling Fan Specifications
| Noctua
NF-B9 Quiet PC Fan Specifications |
| Size |
92x92x25 mm |
| Bearing type |
SSO-Bearing |
| Blade Geometry |
Nine Blade Design with VCN |
| Rotational Speed (+/- 10%) |
1600 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
1300 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
1000 RPM |
| Airflow |
64.3 m³h - 37.84 cfm |
| Airflow with L.N.A. |
52.6 m³h - 30.96 cfm |
| Airflow with U.L.N.A. |
41.1 m³h - 24.19 cfm |
| Acoustical Noise |
17.6 dB(A) |
| Acoustical Noise with L.N.A. |
13.1 dB(A) |
| Acoustical Noise with U.L.N.A. |
7.9 dB(A) |
| Static Pressure |
1.61 mm H2O |
| Static Pressure with L.N.A. |
1.09 mm H2O |
| Static Pressure with U.L.N.A. |
.64 mm H2O |
| Input Power |
1.32 W |
| Input Current |
0.11 A |
| Voltage Range |
12 V |
| MTBF |
150,000 h |
| Mounting hardware included |
4 Vibration Compensators, 4 Fan Screws, 3 to 4-pin adapter |
| Accessories |
Ultra-Low-Noise Adapter (U.L.N.A.) and Low-Noise Adapter (L.N.A.) |
| Warranty |
Six years |
More Information
Datasheet
for Noctua NF-B9
Noctua NF-B9 Cooling Fan Reviews
| Noctua NF-B9 Reviews |
I don't hesitate to give either fan our recommended award. I have been
very impressed at the flexibility of these fans for noise and respectable
airflow. Read
the full review at XtremeComputing.co.uk |
 |
Noctua as always made a high quality product that exceeds even the highest
expectations. NF-B9 fan is a fusion of high airflow and low noise that
can satisfy virtually anyone. Read the full review at HWReviewLabs.com. |
|
Compared to other 92mm it is once again way ahead of the competition. Read
the full review at Clunk.org.uk. |
|
