Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearings and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

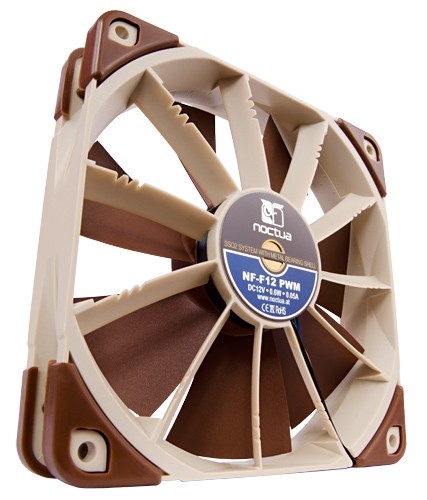

The Noctua NF-F12 PWM Quiet Computer Fan.

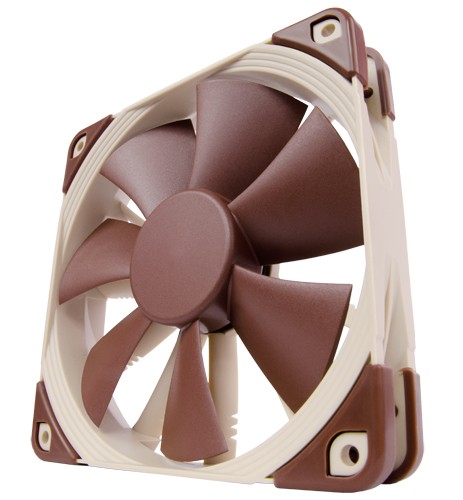

The Noctua NF-F12 PWM uses the Self-Stabilizing Oil-Pressure Bearing.

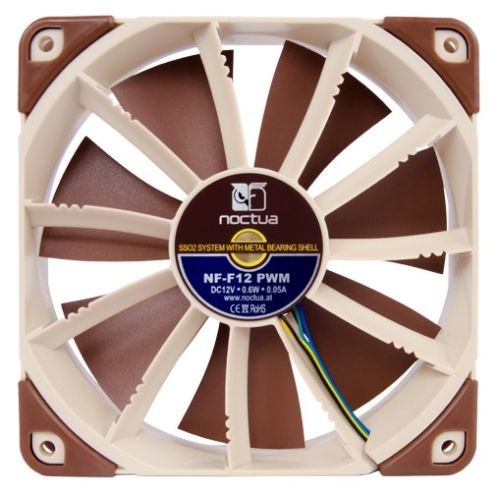

The Noctua NF-F12 PWM quiet computer fan uses the new Focused Flow Frame design.

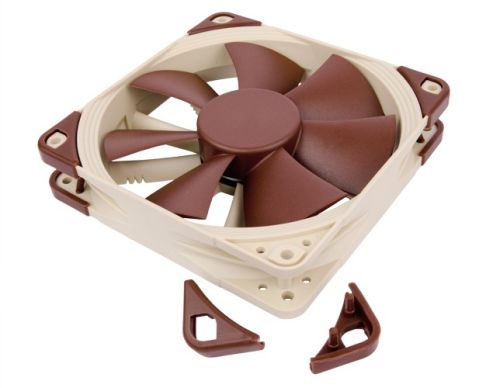

The Noctua NF-F12 PWM quiet PC fan with Integrated Anti-Vibration Pads.

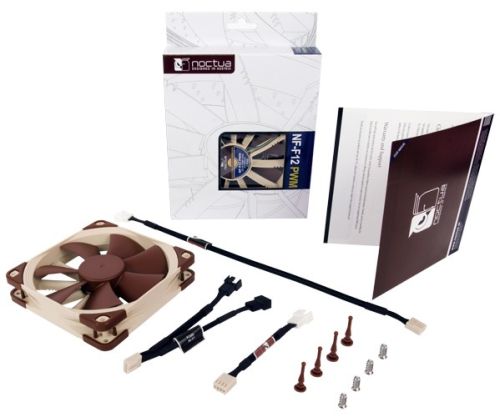

The Noctua NF-F12 PWM quiet PC fan with components and retail packaging.
Noctua NF-F12 PWM Technical Specification.
| Noctua NF-F12 PWM Product Specification. |
|---|
| Size |
120x120x25 mm |
| Connector |
4-pin PWM |
| Bearing |
SSO2-Bearing |
| Blade Geometry |
Heptaperf™ |
| Frame Technology |
Focused Flow™ Frame |
Rotational Speed (+/- 10%) |
1500 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
1200 RPM |
| Min. Rotational Speed (PWM)(+/- 10%) |
300 RPM |
| Airflow |
93.4 m³ |
| Airflow with L.N.A. |
74.3 m³ |
| Acoustical Noise |
22.4 dB(A) |
| Acoustical Noise with L.N.A. |
18.6 dB(A) |
| Static Pressure |
2.61 mm H2O |
| Static Pressure with L.N.A. |
1.83 mm H2O |
| Max. Input Power |
0.6 W |
| Input Current |
0.05 A |
| Voltage Range |
12V |
| MTBF |
> 150,000 h |
| Scope of Delivery |
- Low-Noise Adapter (L.N.A.)
- 4-Pin y_Cable
- 30cm Extension Cable
- 4 Vibration Compensators
- 4 Fan Screws
|
| Warranty |
6 years |
Noctua NF-F12 PWM Features.
| Noctua NF-F12 PWM Features. |
|---|
 |
Focused Flow™ Frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
More Information |
 |
Varying Angular Distance and Vortex Control Notches
The NF-F12’s stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan’s sound pattern more agreeable to the human ear.
More Information |
 |
Heptaperf™ Impeller
Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12’s seven blade Heptaperf™ impeller has been carefully optimized to achieve a perfect balance between power and quietness.
|
 |
Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
More Information |
 |
Inner Surface Microstructures
With the tips of the fan blades plowing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
More Information |
 |
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.< |
 |
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
More Information |
 |
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
More Information |
 |
Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-F12 uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
More Information |
 |
Ultra-Low Power Consumption
The NF-F12 draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn’t only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-F12 after 5 years of continuous use. |
 |
Low-Noise Adapter
The NF-F12 is supplied with a Low-Noise Adapter (L.N.A.) that reduces the maximum fan speed from 1500 to 1200rpm. The L.N.A can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.> |
 |
Extensive Cabling Options
The fan’s short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-F12 fan to the same PWM fan header for automatic control. |
 |
6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty. |
More Information
More information can be found at Noctua NF-F12 PWM FAQ's.
