The NF-P12 has been specifically developed for applications such as CPU coolers that demand superior pressure and airflow performance. Thanks to psychoacoustic optimizations like the Vortex-Control Notches, the new SCD Drive System and Noctua’s premium-grade SSO-Bearing, the NF-P12 achieves exceptional quietness and long-term stability.
For more information on the technical background of the fan please visit Noctua’s website here.
Noctua NF-P12 Technical Specification.
| Noctua NF-P12 Product Specification. |
|---|
| Size |
120x120x25 mm |
| Bearing |
SSO-Bearing |
| Blade Geometry |
Nine Blade Design with VCN |
| Rotational Speed (+/- 10%) |
1300 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
1100 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
900 RPM |
| Airflow |
92.3 m³/h - CFM 54.3 |
| Airflow with L.N.A. |
78,5 m³/h - CFM 46.2 |
| Airflow with U.L.N.A. |
63,4 m³/h - CFM 37.3 |
| Acoustical Noise |
19,8 dB(A) |
| Acoustical Noise with L.N.A. |
16,9 dB(A) |
| Acoustical Noise with U.L.N.A. |
12,6 dB(A) (extrapolated value) |
| Static Pressure |
1,68 mm H2O |
| Static Pressure with L.N.A. |
1,43 mm H2O |
| Static Pressure with U.L.N.A. |
1,21 mm H2O |
| Input Power |
1,08 W |
| Input Current |
0,09 A |
| Voltage Range |
12V |
| MTBF |
> 150,000 h |

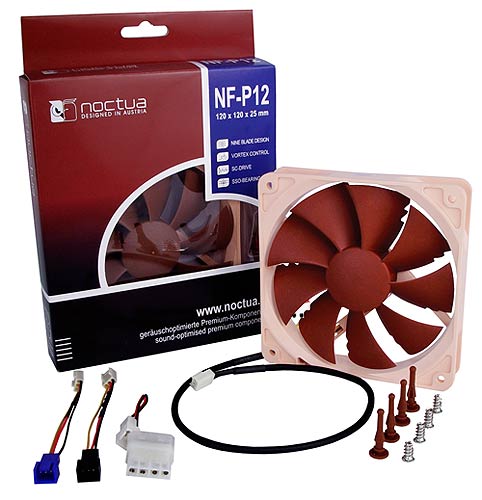

| Scope of Delivery |
- Low-Noise Adaptor (L.N.A.)
- 4 Vibration Compensators
- 3:4-Pin Adaptor
- 4 Fan Screws
|
| Warranty |
6 years |
Noctua NF-P12 Features.
| Noctua NF-P12 Features. |
|---|
 |
Pressure-optimized Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 provides superior pressure and airflow performance.
More Information at www.noctua.at |
 |
Vortex-Control Notches
Psychoacoustic optimizations like the staggered Vortex-Control Notches make the NF-P12 surprisingly quiet.
More Information at www.noctua.at |
 |
Smooth Commutation Drive
The NF-P12's new drive system reduces torque variations and thereby ensures improved running smoothness.
More Information at www.noctua.at |
 |
Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability.
More Information at www.noctua.at |
More Information
More information can be found in the Noctua info sheet (PDF)
|
Noctua OEM: |
Quiet PC USA distribute Noctua products - please contact us if you require bulk quantities for Resale or for OEM quiet PC system building. |
