The NF-P12-1300 has been specifically developed for applications such as CPU coolers that demand superior pressure and airflow performance. Thanks to psychoacoustic optimizations like the Vortex-Control Notches, the new SCD Drive System and Noctua's premium-grade SSO-Bearing, the NF-P12 achieves exceptional quietness and long-term stability.
Move

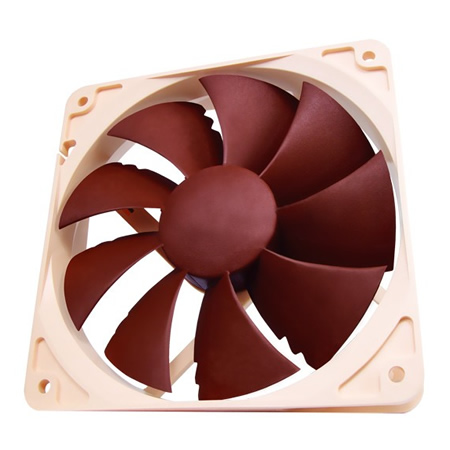

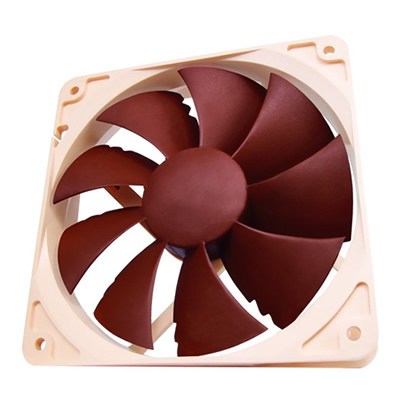

Noctua NF-P12 Quiet 120mm Cooling Fan.

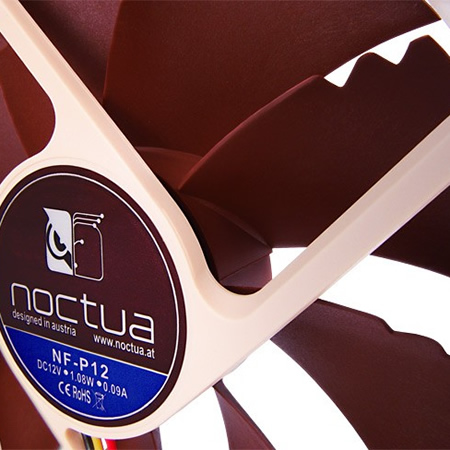

Noctua NF-P12 Quiet 120mm Cooling Fan uses SSO-Bearing technology.

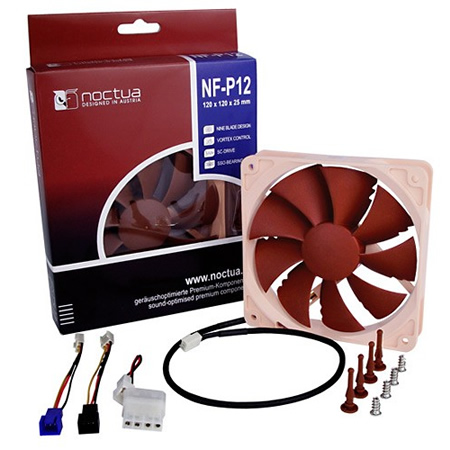

Noctua NF-P12 Quiet 120mm Cooling Fan with Components and Retail Packaging.
Noctua NF-P12 Quiet 120mm Cooling Fan Retail Packaging.
Noctua NF-P12 Technical Specification
| Noctua NF-P12 Product Specification |
|---|
| Size |
120x120x25 mm |
| Bearing |
SSO-Bearing |
| Blade Geometry |
Nine Blade Design with VCN |
| Rotational Speed (+/- 10%) |
1300 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
1100 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
900 RPM |
| Airflow |
92.3 m³/h - 54.32 cfm |
| Airflow with L.N.A. |
78,5 m³/h - 46.20 cfm |
| Airflow with U.L.N.A. |
63,4 m³/h - 37.32 cfm |
| Acoustical Noise |
19,8 dB(A) |
| Acoustical Noise with L.N.A. |
16,9 dB(A) |
| Acoustical Noise with U.L.N.A. |
12,6 dB(A) (extrapolated value) |
| Static Pressure |
1,68 mm H2O |
| Static Pressure with L.N.A. |
1,43 mmH2O |
| Static Pressure with U.L.N.A. |
1,21 mmH2O |
| Input Power |
1,08 W |
| Input Current |
0,09 A |
| Voltage Range |
12V |
| MTBF |
> 150,000 h |
| Scope of Delivery |
- Low-Noise Adapter (L.N.A.)
- 4 Vibration Compensators
- 3:4-Pin Adapter
- 4 Fan Screws
|
| Warranty |
6 years |
Noctua NF-P12 Features
| Noctua NF-P12 Features |
|---|
 |
Pressure-optimized Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 provides superior pressure and airflow performance.
|
 |
Vortex-Control Notches
Psychoacoustic optimizations like the staggered Vortex-Control Notches make the NF-P12 surprisingly quiet. |
 |
Smooth Commutation Drive
The NF-P12's new drive system reduces torque variations and thereby ensures improved running smoothness. |
 |
Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability. |
More Information
Datasheet
for Noctua NF-P12
Noctua NF-B9 Cooling Fan Reviews
| Noctua NF-P12 Reviews |
I have absolutely no hesitation in recommending the Noctua NF-P12 120mm
cooling fans as a worthy addition to your cooling system. Read
the full review at Overclock3D.net |
|
It is blindingly obvious the amount of science and time which has been
invested in the NF-P12. There is no doubt that it is the best 120mm fan
that we have ever come across, low noise combined with decent airflow
makes it a winner. Read
the full review at OverclockersTech.com. |
|
Without doubt this is where the Noctua scores heavily, being the quietest fan I've found that actually also cools. Read
the full review at Clunk.org.uk. |
 |
