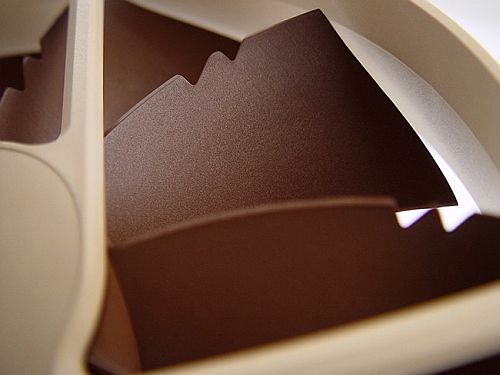

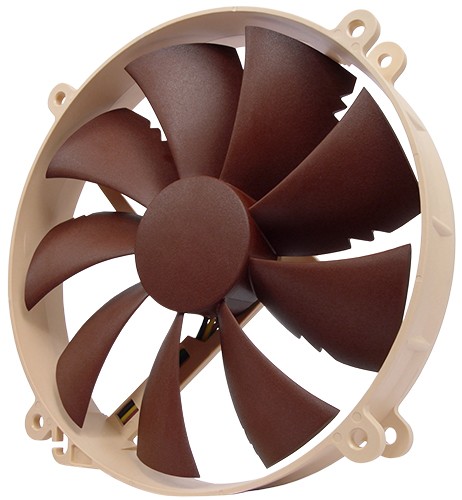

Following in the footsteps of the successful NF-P12, the NF-P14 is a highly optimized, premium quality 140mm fan with Vortex-Control Notches for superb quietness and outstanding aerodynamic efficiency. Metal reinforcements, SCD2 technology and Noctua's premium grade SSO-Bearing guarantee exceptional running smoothness and excellent long-term stability. Using the same hole-spacing as common 120mm fans and achieving a superior airflow/noise ratio, the NF-P14 is ideal for upgrading 120mm CPU or case fans. 6 years warranty and versatile 1200/900/750 rpm speed settings, the NF-P14 FLX is a premium quality fan that offers full flexibility in quiet to ultra-quiet CPU or case cooling.
Move
Noctua NF-S12A PWM Quiet Computer Fan
Noctua NF-S12A PWM Quiet Computer Fan
Noctua NF-S12A PWM Quiet Computer Fan
Noctua NF-P14 FLX Technical Specification
| Noctua NF-P14 FLX Product Specification |
|---|
| Size |
140x140x25 mm |
| Bearing |
SSO-Bearing |
| Blade Geometry |
NF-P14 Blade Design with VCN |
| Rotational Speed (+/- 10%) |
1200 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
900 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
750 RPM |
| Airflow |
110,3 m³/h - 64.92 cfm |
| Airflow with L.N.A. |
83.7 m³/h - 49.26 cfm |
| Airflow with U.L.N.A. |
71,2 m³/h - 41.91 cfm |
| Acoustical Noise |
19,6 dB(A) |
| Acoustical Noise with L.N.A. |
13,2 dB(A) |
| Acoustical Noise with U.L.N.A. |
10,1 dB(A) |
| Static Pressure |
1,29 mm H2O |
| Static Pressure with L.N.A. |
0,77 mm H2O |
| Static Pressure with U.L.N.A. |
0,53 mm H2O |
| Input Power |
1,2 W |
| Input Current |
0,1 A |
| Voltage Range |
12V |
| MTBF |
> 150,000 h |
| Scope of Delivery |
|
| Warranty |
6 years |
