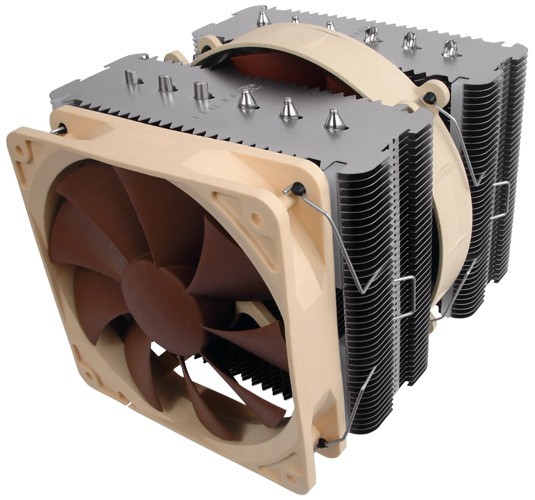

Having received more than 250 awards and recommendations from the international press, Noctua's NH-D14 has become a benchmark in premium quality quiet cooling. The SE2011 version is a special edition for Intel's Core i7-39xx/38xx (Sandy Bridge-E) high-end platform and is an elite choice for an elite platform.
Noctua's NH-D14 SE2011 combines a massive six heatpipe dual radiator design with an exquisite NF-P14/NF-P12 dual fan configuration, the NH-D14 SE2011 is built for ultimate quiet cooling performance. Topped off with a tube of Noctua’s award-winning NT-H1 thermal compound as well as the new SecuFirm2™ mounting system for LGA2011, the NH-D14 is the unparalleled choice for the highest level of quality quiet cooling.
Noctua NH-D14 SE2011 Features
 |
Award-winning NH-D14 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-D14’s quality and performance. Recommended by more than 250 international hardware websites and magazines, it is renowned to be one of the best high end coolers on the market.
|
 |
Dual NF-P14/NF-P12 fan setup
Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14’s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.
|
 |
Dual NF-P14/NF-P12 fan setup
The NH-D14 sports a premium quality dual fan setup consisting of Noctua’s award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.
|
 |
Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NH-D14 SE2011’s NF-P12 and NF-P14 fans use Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus make the fans quieter at lower speeds.
|
 |
Excellent component cooling
Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn’t only contribute to the NH-D14’s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
|
 |
SecuFirm2™ mounting system for LGA2011
Noctua’s enthusiast grade SecuFirm2™ systems meet the highest demands in safety, contact pressure and ease-of-use. Tailor-made for LGA2011, the new NM-I2011 mounting brings the trusted SecuFirm2™ quality to Intel’s new Core i7-39xx/38xx platform.
|
 |
NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
|
Noctua Quiet CPU Cooler Specifications
| Noctua NH-D14 SE2011 Specifications |
| Socket compatibility |
Intel LGA2011 |
| Height (without fan) |
160 mm |
| Width (without fan) |
140 mm |
| Depth (without fan) |
130 mm |
| Height (with fan) |
160 mm |
| Width (with fan) |
140 mm |
| Depth (with fan) |
158 mm |
| Weight (without fan) |
900g |
| Weight (with fan) |
1070/1240 (with 2 fans) g |
| Material |
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating |
| Fan compatibility |
140x140x25mm & 120x120x25mm |
| Scope of Delivery |
- 1x NH-D14 Heatsink
- 1x NF-P14 PWM premium fan
- 1x NF-P12 PWM premium fan
- 4x Vibration-Compensators (for using NF-P12 as case fan)
- 4x Fan screws (for using NF-P12 as case fan)
- 2x Ultra-Low-Noise-Adapter (L.N.A.)
- Y-Split Cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit for LGA2011
- Noctua Metal Case-Badge
|
| Warranty |
6 Years |
Noctua NH-D14 SE2011 Fan Specifications
| Noctua Fan Specification |
| Model |
Noctua NF-P14 PWM & Noctua NF-P12 PWM |
| Bearing |
SSO-Bearing |
| Rotational Speed (+/- 10%) |
1200 / 1300 RPM |
| Max Rotational Speed with L.N.A. (+/- 10%) |
900 / 900 RPM |
| Min Rotational Speed PWM (+/- 10%) |
300 / 300 RPM |
| Airflow |
110.3 / 92,3 m³/h |
| Max Airflow with L.N.A. |
83.7 / 63,4 m³/h |
| Max Acoustical Noise |
19.6 / 19,8 dB(A) |
| Max Acoustical Noise with L.N.A. |
13.2 / 12.6 dB(A) |
| Input Power |
0.96 / 0.6 W |
| Voltage Range |
12 V |
| MTBF |
> 150.000 h |
Additional Information
For FAQ's please visit Noctua’s website.
For detailed installation instructions please visit Noctua’s website.
Reviews
| Noctua NH-D14 CPU Cooler Reviews |
Noctua have managed to create the ultimate cooler through a very efficient and well thought design rather than relying on the brute force of a high RPM fan. The U.L.N.A is further proof of that, managing to stay ahead of the competition even with both fan spinning at a mere 900 RPM. At idle, where normally we see very little variation, Noctua disproves the convention and sets the benchmark once again.
Read the full review at Vortez PC Hardware News and Reviews. |
 |
