Noctua NH-D14 combines a massive six heatpipe dual radiator design with an exquisite NF-P14/NF-P12 dual fan configuration, the NH-D14 is built for ultimate quiet cooling performance. Topped off with a tube of Noctua’s award-winning NT-H1 thermal compound as well as the new SecuFirm2™ multi-socket mounting system, the NH-D14 is an elite choice for the highest demands in premium quality quiet cooling.

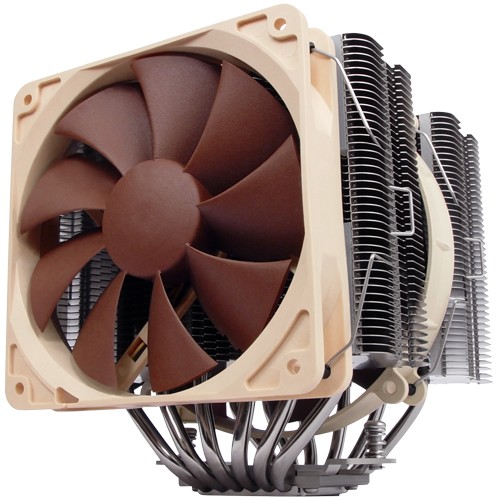

Noctua NH-D14 6 heatpipe quiet CPU cooler.

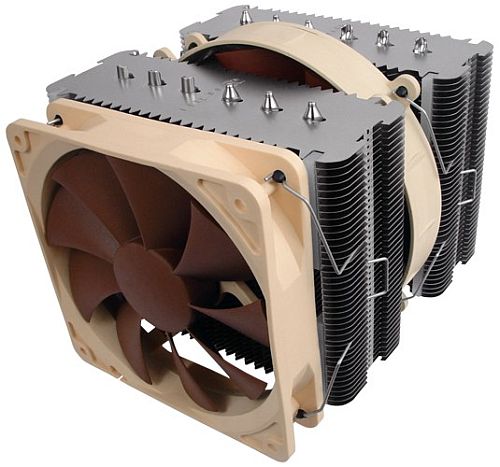

Noctua NH-D14 dual fan, dual radiator quiet CPU cooler.

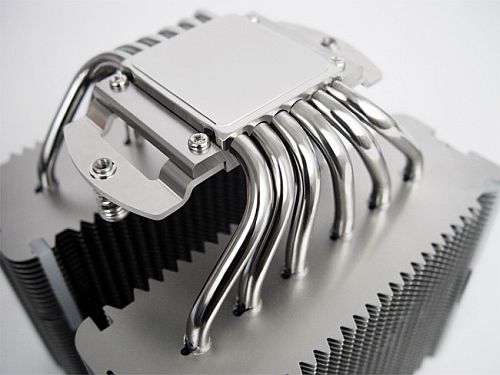

Noctua NH-D14 6 heatpipes and base plate view.
Noctua NH-D14 dual radiator top view.
Noctua NH-D14 Features
 |
Dual NF-P14/NF-P12 fan setup
Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14’s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.
|
 |
Dual NF-P14/NF-P12 fan setup
The NH-D14 sports a premium quality dual fan setup consisting of Noctua’s award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.
|
 |
Asymmetrical design for high compatibility
An asymmetrical design that gives more clearance towards the RAM slots ensures good compatibility despite of the cooler’s size. The NF-P12 fan can be moved upwards or left off in order to further improve compatibility. |
 |
Excellent component cooling
Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn’t only contribute to the NH-D14’s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
|
 |
SecuFirm2™ multi-socket mounting system
Noctua’s enthusiast grade SecuFirm2™ multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, contact pressure and ease-of-use.
|
 |
NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
|
Noctua Quiet CPU Cooler Specifications
| Noctua NH-D14 Specifications |
| Socket compatibility |
Intel LGA1366, LGA1156, LAG775,AMD AM2, AM2+, AM3 (backplate required) |
| Height (without fan) |
160 mm |
| Width (without fan) |
140 mm |
| Depth (without fan) |
130 mm |
| Height (with fan) |
160 mm |
| Width (with fan) |
140 mm |
| Depth (with fan) |
158 mm |
| Weight (without fan) |
900g |
| Weight (with fan) |
1070/1240 (with 2 fans) g |
| Material |
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating |
| Fan compatibility |
140x140x25mm & 120x120x25mm |
| Scope of Delivery |
- 1x NH-D14 Heatsink
- 1x NF-D14 fan
- 1x NF-P12 fan
- Mounting-clips for 2 fans
- 2x Ultra-Low-Noise-Adapter (U.L.N.A.)
- Y-Split Cable
- NT-H1 thermal compound
- SecuFirm2™ mounting kits
|
| Warranty |
6 Years |
Noctua NH-D14 Fan Specifications
| Noctua Fan Specification |
| Model |
Noctua NF-P12 & Noctua NF-P12 |
| Bearing |
SSO-Bearing |
| Rotational Speed (+/- 10%) |
1200 / 1300 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
900 / 900 RPM |
| Airflow |
110.3 / 92,3 m³/h |
| Airflow with U.L.N.A. |
83.7 / 63,4 m³/h |
| Acoustical Noise |
19.6 / 19,8 dB(A) |
| Acoustical Noise with U.L.N.A. |
13.2 / 12,6 dB(A) |
| Input Power |
1.2 / 1,08 W |
| Voltage Range |
12 V |
| MTBF |
> 150.000 h |
Additional Information
For FAQ's please visit Noctua’s website.
For compatibility please visit Noctua’s website.
For detailed installation instructions please visit Noctua’s website.
Reviews
| Noctua NH-D14 CPU Cooler Reviews |
Noctua have managed to create the ultimate cooler through a very efficient and well thought design rather than relying on the brute force of a high RPM fan. The U.L.N.A is further proof of that, managing to stay ahead of the competition even with both fan spinning at a mere 900 RPM. At idle, where normally we see very little variation, Noctua disproves the convention and sets the benchmark once again.
Read the full review at Vortez PC Hardware News and Reviews. |
 |
