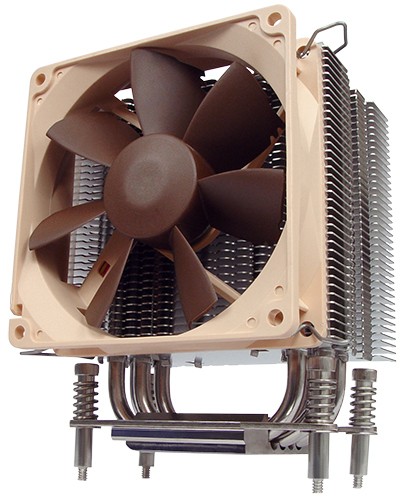

Product Details - Noctua NH-U9DX Ultra Quiet CPU Cooler for Dual Xeon
Xeon Sockets 604, 771
Based on Noctua's compact NH-U9 series and fitted with the award-winning NF-B9 fan and NT-H1 thermal compound, the NH-U9DX forms a complete premium quality package that provides excellent quiet cooling performance for 4U Xeon workstations and servers. The new SecuFirm2™ mounting system for socket 771 is highly convenient and makes the NH-U9DX a tailor-made drop-in replacement for standard Intel coolers. To make your Xeon systems quieter has never been so easy!
Tailor-made for Dual Xeon

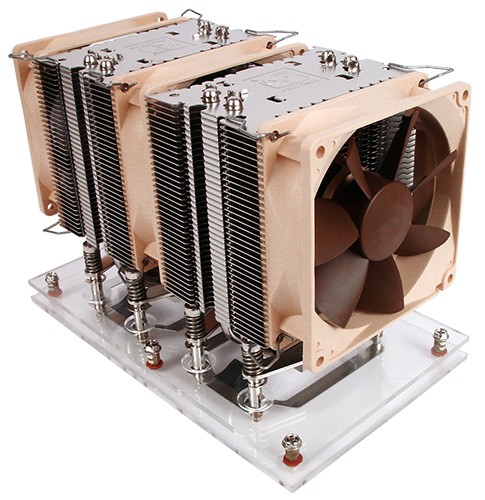

The NH-U9DX's fin shape has been modified so that two coolers form an air duct on Dual Xeon setups, producing superior cooling performance at very low noise levels.
SecuFirm2™ for Socket 771 and 604
Completely pre-installed, the new SecuFirm2™ mounting system ensures maximum convenience and extremely short installation time.
Drop-in replacement for standard Intel coolers
SecuFirm2™ for Socket 771 is fully compatible with the original Intel installation system so that the NH-U9DX works as a simple drop-in replacement.
NF-B9 92mm premium fan
Featuring psychoacoustic optimizations and Noctua's premium-grade SSO-bearing, the award-winning NF-B9 is renowned for its exceptional quietness and long-term stability.
NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Features
-
Four Dual-Heatpipes for optimal heat absorption
-
37 aluminum cooling fins for optimal heat dissipation
-
Soldered joints for optimal heat-transfer
-
Screwless fan-mount including anti-vibration strips
-
Universal fit for sockets LGA771, mPGA604 and Xeon 5000 and 7000
-
Supplied with very quiet Noctua fan, from 7.9 dB(A)
Specifications
Model |
Noctua NH-U9DX |
| Dimensions(H x W x D) mm (with fan) |
122 x 96 x 90mm |
| Dimensions(H x W x D) mm (without fan) |
122 x 96 x 65mm |
| Material |
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating |
| Application |
Intel Xeon 5xxx & Xeon 7xxx |
| Socket compatibility |
Intel LGA 771 & mPGA 604 (10mm mounting holes only) |
| Fan compatibility |
92 x 92 x 25mm (2 fans mountable) |
| Weight (with fan) |
590g |
| Weight (without fan) |
500g |
| Warranty |
6 years |
Fan Specifications
Model |
Noctua NF-9B |
| Bearing |
SSO-Bearing |
| Rotational Speed (+/- 10%) |
1600 RPM |
| Rotational Speed with *L.N.A. (+/- 10%) |
1300 RPM |
| Rotational Speed with *U.L.N.A. (+/- 10%) |
1000 RPM |
| Fan |
Noctua 92 x 92 x 25mm Vortex Control (2 fans mountable) |
| Airflow |
24.2 - 37.6 cfm |
| Acoustical Noise |
7.9 - 17.6 dB(A) |
| Input Power |
1.32 W |
| Voltage Range |
12V |
| MTBF |
> 150.000 h |
* LNA = Low noise adaptor
* ULNA = Ultra low noise adaptor
Includes
- 1x NH-U9DX Heatsink
- 1x NF-B9 fan
- Mounting-clips for 2 fans
- Ultra-Low-Noise-Adaptor (U.L.N.A.)
- Low-Noise-Adaptor (L.N.A.)
- NT-H1 thermal compound
- SecuFirm2™ mounting kits for 771/604
Installation instructions
For more information on the technical background of the fan please visit Noctua’s website here.
For detailed installation instructions please visit Noctua’s website here.
If there are any further questions regarding this CPU cooler, take a look at Noctua’s FAQs for more information.
