The NM-I3 SecuFirm2™ Mounting-Kit makes all Noctua CPU coolers compatible with Intel's LGA1156 & LGA1366 sockets for Core i5 and Core i7 processors. Designed to combine outstanding reliability, optimal contact pressure and easy, straightforward installation, SecuFirm2™ is an enthusiast-grade mounting system that meets the highest demands in safety, performance and ease-of-use.

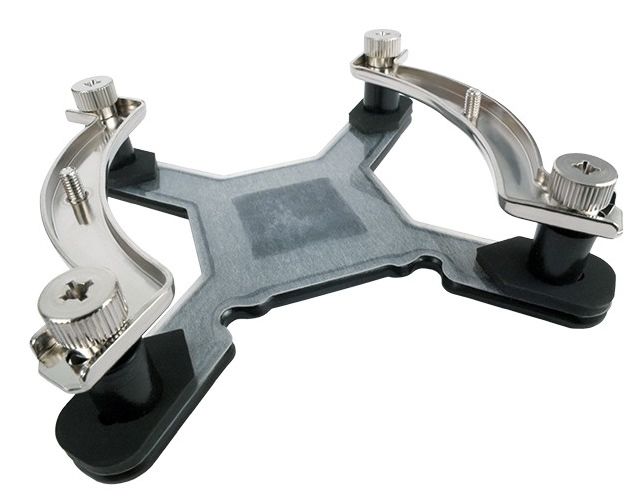

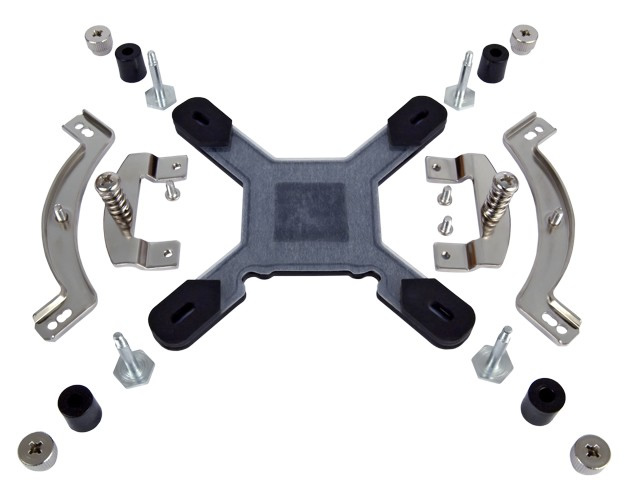

Noctua NM-I3 Mounting Kit.
Noctua Fan Mount Features
 |
Ultimate Reliability
Noctua's SecuFirm™ mounting systems are renowned for their excellent reliability, minimize the stress on mainboards and make it possible to transport the system without uninstalling the CPU cooler. With tens of thousands of units sold, there's not a single known case of failure. |
 |
Backplate with Screw-Threads
SecuFirm2™ utilizes a backplate with screw-threads that simply installs on top of the stock LGA1366/LGA1156 backplate. Not having to remove the stock backplate significantly reduces overall installation time and eliminates the risk of damaging the CPU socket. Thanks to the screw threads, the backplate can't slip during the installation process.
|
 |
Integrated Fastening Brackets
Fully integrated fastening brackets with fixed pressure screws and springs greatly facilitate the installation process. No more fiddling with screws and springs! |
 |
Maximum Convenience for Enthusiasts
Thanks to the use of separate mounting bars, uninstalling and reinstalling the cooler only takes two screws. Loosening two thumbscrews gives full access to the socket without the backplate falling off, making it a child's play to change CPUs even if the mainboard is installed inside a case. |
 |
Backwards Compatibility
SecuFirm2™ is fully backwards compatible with all Noctua coolers since 2005, making them safe long-term investments that can be used for several CPU generations.
|

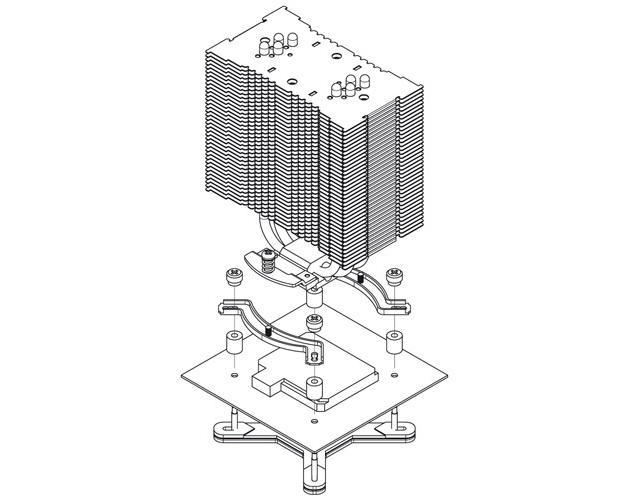

Noctua NM-I3 Mounting Diagram.
Specifications
| Noctua NM-I3 Heat Sink Mounting Kit Specifications |
| Socket compatibility |
LGA1366, LGA1156, LGA775 |
| Supported CPU series |
Intel Core i5 & Core i7 |
| Cooler compatibility |
Noctua NH-C12P, NH-U12P, NH-U12P SE1366, NH-U9B, NH-U12F, NH-U9F, NH-U12, NH-U9
|
| Compatibility |
Intel LGA1366 / LGA775 and AMD socket AM2 / AM2+ / AM3 |
Please Note!
Owners of Noctua CPU coolers can obtain the NM-I3 Mounting-Kit free of charge via the Noctua site. A proof of purchase (photo, scan or screenshot of the invoice) of both a Noctua CPU cooler and either a socket 1156/1366 mainboard or socket 1156/1366 CPU are required.
