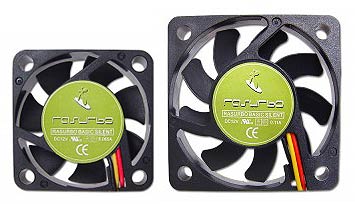

Rasurbo “Basic Silent” fans provide the performance of high-end fans at an attractive price; the perfect solution for all those looking for quiet, high-performance quality fans that don’t cost a fortune!
Both the 40mm and 50mm fans are 10mm thick and have 3-pin connectors for
direct attachment to motherboard fan headers (pins). This allows the
motherboard to read the fan's RPM (speed) and, if supported, the
motherboard can sound an alarm in the unlikely event the fan fails.
For customers who are short of motherboard fan headers, we would recommend using the Zalman Multi-Connector Cable ZM-MC1 to convert our 3-pin
computer fans to a 4-pin connector or opt for the AcoustiFan DustPROOF
Series, for connection to an available 4 pin connector from the power
supply.
Specifications
| |
40mm Quiet Cooling fan |
50mm Quiet Cooling fan |
| Fan size (edge to edge) |
40 mm |
50 mm |
| Model |
RS40M |
RS50M |
| Air volume at full speed (12V), CFM ±10% |
4.7 |
10.0 |
| Noise level at full speed (12V), dB(A) |
19.0 |
22.0 |
| Fan speed at full speed (12V), RPM ±10% |
4300 |
4000 |
| Power consumption, W |
0.60 |
1.08 |
| Weight, g |
16 |
20 |
| Approximate cable length, cm |
30 |
| Life expectancy @ 25°C continuous use |
2 years |
| Power connector |
3-pin |
| Bearing type |
Sleeve |
1-Ball |
| Accessories |
None |
| Mounting hardware included |
4 screws |
| Fan depth |
10 mm |
| Rated voltage |
12 VDC |
