Using the Scythe Kaze Ace 5.25" controller, up to four fans can be independently regulated with four temperature sensors that will monitor your system temperature in either °C or °F from four different points within your PC, keeping it cool and quiet.
The Kaze Master Ace also includes an integrated acoustic alarm function to warn the user when any overheating or fan failure occurs within the system. With a wide range of monitoring, the fan voltage can be independently controlled from 3.7 - 12 V. The fans can also be turned off when they are not needed.
The Scythe Kaze Master comes in brushed black aluminum paired with brilliant flashy blue display.

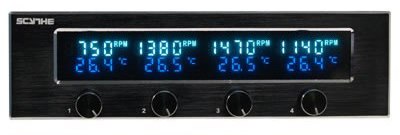

Scythe Kaze Master Ace Fan Controller with digital outputs.
Scythe Kaze Master Ace Fan Controller with the brushed black aluminium finish.

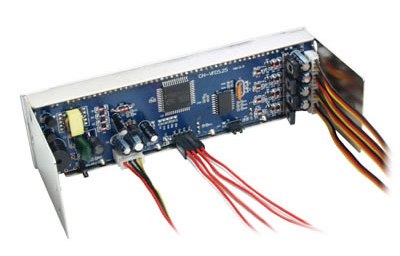

Rear inside view of the Scythe Kaze Master Fan Controller, showing the fan connectors.
Controller Specifications
| Scythe Kaze Master Ace 5.25" Technical Specification |
|---|
| Model Name: |
Kaze Master Ace 5.25 |
| Model Number: |
KM02-SL (Silver) |
| Manufacturer: |
Scythe Co., Ltd. Japan |
| Dimension (W x H x D) |
148.5 x 42.5 x 63 mm / 5.85 x 1.67 x 2.48 in |
| Display Dimension |
114 x 20 mm / 4.49 x 0.79 in |
| DC Input |
5 V or 12 V (From PC Power Supply Unit) |
| Fan Adjustment Range |
3,7 V (±10%) ~ 12 V (±10%) |
| Fan Channel |
4 |
| Maximum Fan Ampere per Channel |
1 Ampere (= 12 W max.) |
| Fan Speed Range |
0 ~ 9990 rpm (Display: 30 rpm steps) |
| Temperature Module Channel |
4 |
| Temperature Range |
0 ~ 100°C / 32 ~ 199,9°F |
| Measurement Frequency |
Every 2 Seconds |
| Weight |
165 g / 5,35 oz. |
Controller Features
Aluminum Design:
High-quality materials were used when producing the Kaze Master Ace. The front consists of brushed aluminum and accentuates the blue illuminated VFD display in an optimal way.
Fan Control and Temperature Monitoring:
With the Kaze Master Ace, four fans can be controlled independently, and four temperatures (in either ° C or °F) can be monitored. An integrated acoustic alarm function (which can be deactivated by a jumper) warns the user from overheating and failure of a fan, keeping the PC cool and quiet.
Wide Range of Fan Controller:
The fan voltage can be independently controlled from 3.7 - 12 V, in addition, the fan can be switched off completely which allows the user to choose between high and ultra-cooling operation.
Controller Reviews and Awards
| Kaze Master Ace - Reviews and Awards |
The Kaze Master Ace 5.25in looks great, with a black, brushed aluminum fascia, embedded display and four responsive dials edged in chrome. Sleek and easy to use. Overall: 85%, Premium Grade Award. Full Review |
 |
| The Scythe Kaze Master Ace (KMA-02) - Full Review in German |
 |
With the KazeMaster, Scythe followed the K.I.S.S. principle to a tee. The four fan controllers and temperature sensors should handle most cases. The jumpers allow you to disable the caution speaker or select between Celsius and Fahrenheit. The attractive finish, available in silver or black, surrounds a great looking VFD Display. Installation and performance were excellent. The test unit is now running cooler running less fans and at lower speed. A solid looking and feeling product, it truly deserves our Editor's Choice Award. Full Review |
 |
