Thermalright T-Rad² GTX SLI/Crossfire GFX Cooler.

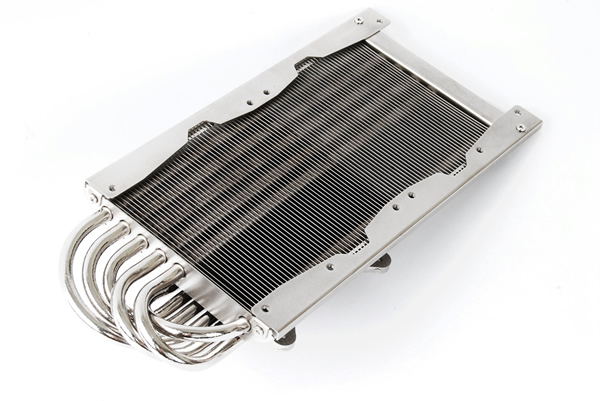

- Light and Slim designed heatsink; 25mm in total height with large cooling surface area
- Options to install two 92mm fans or one 120mm quiet fan. Two low noise 92mm (1500rpm) fans included
- Supports multiple nVidia and ATI video cards in SLI and Cross Fire mode

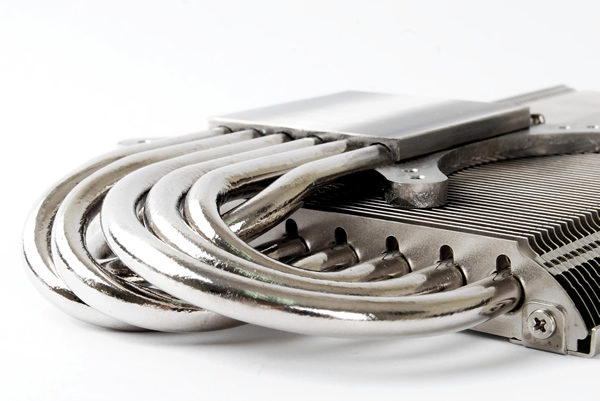

- Six nickel-plated heatpipes to reduce oxidation effect, maintaining top performance for long term usage

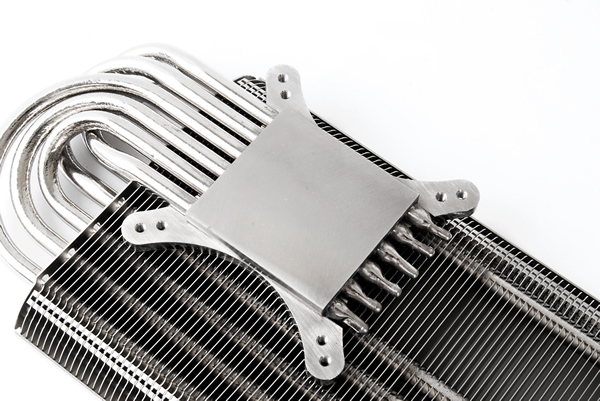

- Features an all copper base and soldering technology that has each heatsink fin soldered to the heatpipes for a definite contact in producing high efficiency rate of heat transfer.
- Vast compatibility with nNvidia GTX-200 Series / 9 Series and ATI 4000 Series video cards
- Includes complete set of RAM heatsinks and Chill Factor Thermal Paste.
Thermalright T-Rad² GTX SLI/Crossfire Graphics Card Cooler.
Heatsink Specifications
| Thermalright T-Rad² GTX Quiet Video Card Heatsink Specifications |
| Dimension (LxWxH) |
228 x 104 x 25mm |
Weight |
360g |
| Recommended Fan |
All 92 x 92 x 25 fans / All 120 x 120 x 25 fans |
| Heat Pipes |
Nickel plated heat pies X 6 |
| Base Material |
Copper Base |
| Compatibility |
Please view the Thermalright page for the extensive compatibility list |
Fan Specifications
| Thermalright 92mm Fan Specifications |
| Dimension (LxWxH) |
92 x 92 x 25mm |
| Noise |
22.4 dBA |
Thermalright T-Rad² GTX SLI/Crossfire Graphics Card Heat SInk
.
| Thermalright T-RAD² GTX Graphics Card Cooler Review |
Thermalright brings out a great alternative to the HR-03 with the thinner T-Rad2 while still offering great performance. View the full review at Legit Reviews. |
 |
If you plan on installing two T-Rad2 GTX on your video cards for SLI/CF mode then please, before installing the T-Rad2 GTX for SLI or CF, check to see if you have at least two PCI slots between the first and second video card. This takes up the assumption that the fan to be utilized is of 25mm in height/thickness. If a thinner fan is used, the above limitation does not apply.
