The Ultra Series features a patent-pending design of the fins. In every corner of every fin, a "winglet" is created. This bending of the corners creates an increased air pressure and in return decreases air resistance, so even with a low RPM fan you get massive air flow through the fins. The use of the Thermalright 120mm Ultra quiet fan significantly reduces high CPU temperatures. With a low fan RPM, the cooler is extremely quiet but performance remains, which is what you would expect from a high-end CPU cooler.

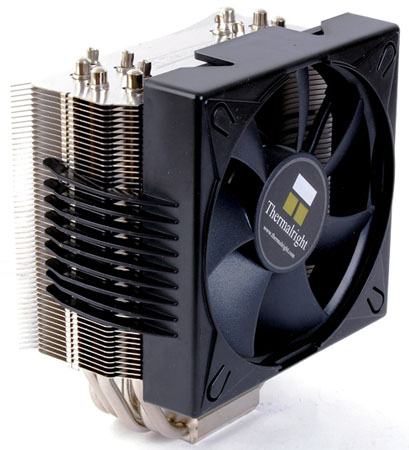

The Thermalright Ultra 120 Extreme 775 RT Quiet CPU Cooler. Image shows the 120mm cooling fan attached.
The heatsink uses U-shaped heatpipes to transfer the heat from the base of the cooler up and through the attached fins, maximizing the heat transfer. But that's not all, due to the winglet design mentioned earlier, it also increases the surface area. All these features translate into efficient and quiet cooling cooling typical of the high standard set by Thermalright's high quality CPU heatsinks.

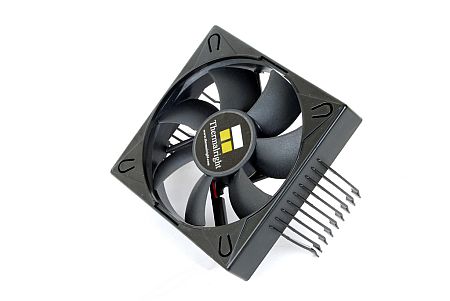

The Thermalright Ultra 120 Extreme 775 RT Quiet CPU Cooler 120mm fan and fan holder. Image shows the 120mm cooling fan and fan holder.
CPU Cooler Features
- Uses high quality aluminum fins for best balance of heat absorption and conduction.
- Utilizes six high quality 6mm heatpipes, strategically positioned to pick up the heat from the CPU.
- Proprietary bent winglet design to minimize airflow resistance.
- Heat pipes soldered to base (nickel plated) and fins for optimum heat transfer.
- Stack of 52 pieces of aluminum fins, the most over any other heatsinks in the market. Can be covered entirely by a 120mm fan to absorb all in-coming air flow.
- Vast compatibility list for multiple multi-core CPUs and platforms.
- Includes one Ultra low noise 'Fluid Dynamic Bearing' fan (1000 RPM)
- Includes the NEW 120x120x25mm fan holder.
Technical Specifications
CPU Heatsink
Dimension: L132 x W163 x H160.5 mm
Weight: 790g (Heatsink only)
Heat pipes: Six heat pipes
CPU Cooling Fan
Dimension: L120 * W120 * H25mm
Bearing type: FDB (Fluid Dynamic Bearing)
Rated Speed: 1000RPM
Noise Level: 15.8 dBA
Air Flow: 38.9CFM
Socket Compatibility
- Supports Intel Socket 775
-
Supports Intel Core 2 extreme and any Socket 775 Processor
-
Supports Intel Core i7 Processor (mounting kit sold separately)
Cooler Installation
It is recommended that you view the Thermalright FAQ's page for further information about installing this quiet CPU cooler.
