Zalman's CNPS8000B Ultra Quiet CPU cooler combines powerful cooling performance with versatile compatibility rendering it suitable for lower profile chassis where space is at a premium.
The CNPS8000B is designed with four "C" shaped heatpipes that transfer the heat from the copper base to the top edge of the fins. This allows the whole heatsink to be used more efficiently. Coupled with a Zalman ultra quiet 92mm PWM fan the result is a powerful, low profile and extremely quiet CPU cooler. With FSB (Fluid Shield Bearing) bearings, the fan’s lifespan and noise is improved considerably compared to previous sleeve bearing fans, while the fan noise has been noticeably reduced.
Move

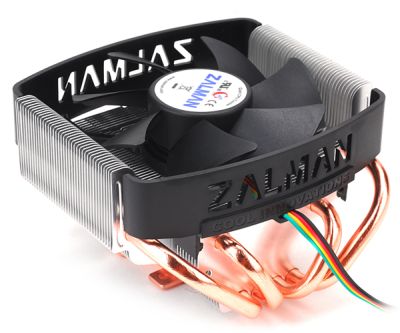

Zalman CNPS8000B CPU Cooler.
Zalman CNPS8000B Low Profile Ultra Quiet CPU Cooler.
Zalman CNPS8000B CPU Cooler.
Four heatpipes deliver powerful
cooling performance.
Slim profile - designed to fit low
profile and ATX cases.
The CNPS8000B fits a broad range of
sockets.
Once-piece clip and bolt for easy installation.
High Performance Super Thermal Grease ZM-STG2M.
Features
- Powerful Cooling Performance: Four heatpipes and aluminum fins are designed for maximum cooling while switching
noise (the high frequency harmonic noise that can result from voltage regulation) free, down-blowing 92mm PWM fan minimizes
noise and cools not only the CPU but also provides powerful peripheral cooling.
- Slim Profile: The CPU cooler's height is 66mm and designed to be installed in ATX case as well as slim or LP (low profile) cases.
- Versatile Compatibility: The CNPS8000B accommodates a broad range of sockets. Intel LGA1156/1366/775 and AMD FM1/AM3+/AM3/AM2+/AM2.
- Easy Installation: The cooler installation clip and bolt are designed as one-piece, making installation
convenient, and the patented back plate prevents flexing of the motherboard.
- High Performance Super Thermal Grease ZM-STG2M:The high performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS8000A for intensified cooling performance.
Zalman CNPS8000B Ultra Quiet CPU Cooler
Specifications
| Quiet CPU Cooler Specifications |
| Dimensions: |
108(L) X 108(W) X 66(H)mm |
| Weight: |
330g |
| Materials: |
Fins: Aluminum / Base: Copper |
| Dissipation Area: |
2,872cm2 |
| Heatpipes: |
4 'c'-shaped heatpipes |
| Fan: |
4 Pin 92mm PWM Fan |
| Fan RPM: |
1,400 ~ 2,800rpm ± 10 % |
| Noise: |
20 ~ 32dBA ± 10 % |
| Compatibility: |
Intel LGA1156/1155/1366/775
AMD FM1/AM3+/AM3/AM2+/AM2. |
| Fan Bearing |
FSB (Fluid Shield Bearing) |

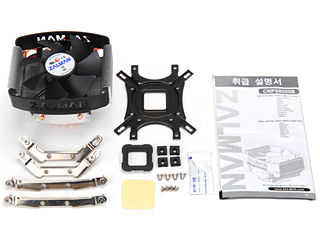

Zalman CPU Cooler Components
 |
- Cooler
- Backplate
- Side Caps
- Nuts
- Loading Block
- Double-sided Tape
- Thermal Grease (ZM-STG2M)
- User's Manual
- Intel / AMD Clip
|
Cautionary Notes
- Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children and pets.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking.
- During transportation of the system, the cooler must be removed. Zalman is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be revised to improve quality and performance.
- Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
