We are delighted to announce that Zalman have produced a new flagship product - the CNPS9700-LED CPU cooler. To look at the cooler, you would think it is exactly the same as the hugely-successful CNPS9500-LED. But on closer inspection, you will soon notice that the cooler is about 20% bigger! Instead of using a 92mm fan like in the CNPS9500, the CNPS9700-LED has a huge 110mm fan!

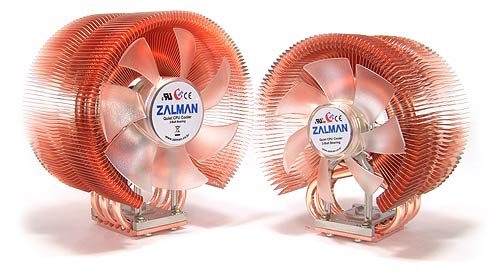

Image showing the size difference between the CNPS9700-LED and the CNPS9500-LED
The larger size of the cooler gives both an increase in airflow (due to the fan), and an increase in surface area (due to the fins). In combination, this gives unbeatable cooling performance. The cooler is multi-socket compatible, and comes not only with a Fanmate2 fan speed controller, but also Zalman’s well-respected premium heatsink compound, ZM-STG1.
Features
- Similar design to CNPS9500 but with 110mm fan for even better performance
- Supplied with Zalman’s thermal paste, ZM-STG1
- Compatible with Intel LGA775 and AMD’s AM2/S754/S939/S940
- From only 19.5 dB(A)
- Fanmate 2 included
Specifications
| CPU Compatibility |
Socket LGA775, AM2, 754, 939 and 940 |
| CPU supported clock speeds |
All speeds |
| Heatsink dimensions, mm |
90(L) x 124(W) x 142(H) |
| Materials |
Pure copper |
| Weight |
764g |
| Dissipation surface area |
5490 sq.cm |
| Fan dimensions |
110 x 110 x 25 mm |
| Thermal grease |
ZM-STG1 |
| Fan illumination |
Blue |
| Rotational speed |
1250 - 2800 rpm |
| Fan Controller |
FANMATE2 |
| Acoustic noise level |
19.5 - 35.0 dBA * |
* depending on fan speed
Compatibility
| |
Socket |
CPU |
Silent Mode |
Normal Mode |
| Intel |
775 |
Celeron D |
Supports all speeds |
Supports all speeds |
| Pentium 4 |
| Pentium D |
| Core 2 Duo |
| AMD |
AM2 |
Sempron |
Supports all speeds |
Supports all speeds |
| Athlon 64 |
| Athlon 64 X2 |
| Athlon 64 FX |
| 754 |
Sempron |
Supports all speeds |
Supports all speeds |
| Athlon 64 |
| 939 |
Athlon 64 |
Supports all speeds |
Supports all speeds |
| Athlon 64 X2 |
| Athlon 64 FX |
| Opteron |
| Dual-Core Opteron |
| 940 |
Athlon 64 FX |
Supports all speeds |
Supports all speeds |
| Opteron |
| Dual-Core Opteron |
