Description
Zalman's new GS1200 has a mesh design for air circulation, two large 200mm fans
for powerful cooling and excellent air flow, front USB3.0 port and HDD Docking
deck. This is a feature packed enthusiast case.
Move
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Zalman GS1200 Quiet Full Tower Case
Mesh Design for Effective Air Circulation
Maximum Cooling by Large 200mm LED Fans
Dedicated HDD Cooling 92mm LED Fan
USB 3.0 Ready for Rapid Data Transfer
Tool-Free Enabled HDD Installation
Docking Support on the Top of Case
Spacious 350mm Interior for Easy System Installation
Seperate Apertures for Easy CPU Cooler Installation
Tube Apertures for Liquid Cooling Systems
Cable Compartment for Neat Cable Management
SSD Support
Hot Swap Support
Features
- Mesh Design for Effective Air Circulation (Front Bezel):
The front of case is designed with mesh for effective air circulation throughout
the system, and dust filters are placed inside the mesh to prevent dust collection.
- Maximum Cooling Performance by Large 200mm LED Fans: Large 200mm LED fans expel hot air quickly from the case, maintaining a cool
and calm operating system. (Left side (1) and top (1) panel)
- Dedicated HDD Cooling 92mm LED Fan: The dedicated
92mm HDD LED fans in front of the case blow cool air through the hard disk
keeping the HDD's temperature to a minimum and reducing
high temperature related errors for a stable operating system.
- USB 3.0 Ready for Rapid Data Transfer: USB 3.0 port allows a rapid data transfer rate up to 5 Gbps Max.
- Tool-Free Enabled HDD Installation: The Tool-Free HDD Mount
Trays allow easy HDD installation/removal and maintenance.
- Docking Support on the Top of Case: The docking support on top of the case allows convenient connection to
HDDs. * HDD and scratch-resistant pad for case are provided.
- Spacious 350mm Interior for Convenient System Installation: The interior has been designed to be spacious for easy
installation and maintenance of various components, especially for large, high performance VGA card.
- Separate Apertures for Convenient CPU Cooler Installation: Separate apertures for CPU cooler are provided for convenient CPU cooler
installation without having to remove motherboard from case.
- Tube Apertures for Liquid Cooling Systems: Tube apertures are provided at the rear of the case for
convenient water cooling set-up and maintenance.
- Cable Compartment for Neat Cable Management: The Cable Compartment enables tidy cable management and unimpeded airflow
for stable system operation.
- SSD Support: Besides the existing HDD, GS1200 also supports SSD (Solid State Disk).
- Hot Swap Support: By incorporating Hot Swap, cable free HDDs can be connected immediately upon installation.
Zalman GS1200 Quiet Full Tower Case Specifications
| Quiet Full Tower Specifications |
| Dimensions: |
260(W) x 570(H) x 640(D)mm |
| Weight: |
12.4kg |
| Materials: |
Plastic, Steel and Aluminum |
| Motherboard Compatibility |
Standard ATX / m-ATX / E-ATX |
| Power Supply Compatibility |
Standard ATX / ATX12V |
| VGA Compatibility |
Full Size (350mm) |
| 5.25" Drive Bay |
3 |
| Internal 3.5" Drive Bay |
6 |
| External 3.5" Drive Bay |
1 |
| Front Cooling Component |
92mm LED fan x2 |
| Rear Cooling Component |
120mm fan x 1 |
| Top Cooling Component |
200mm LED fan x1 |
| Side Cooling Component |
200mm LED fan x1 |
| Front I/O Ports |
Mic x 1, Headphones x 1, USB 2.0 x 3, e-SATA x1, USB 3.0 x1 |
| Hot Swap Support |
SATA I / SATA II |
| Color |
Black |

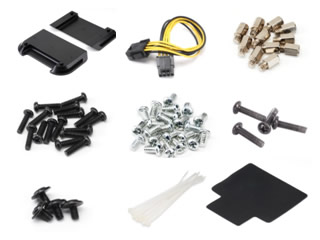

Zalman GS1200 Quiet Full Tower Components
 |
- Main Unit
- Stand (front x1, rear x1)
- CPU 12V Extension Cable x 1
- Stand-Off x 11
- A Bolt(PH 6-32*12) x 12 [HDD]
- B Bolt(PH 6-32*6) x 24 [M/B, PSU]
- C Bolt(PWH M3*12) x 4 [Foot]
- D Bolt(PWH M3*6) x 4 [SSD]
- Cable Tie x 10
- HDD Pad
- User's Manual
|
Cautionary Notes
- Please read this manual thoroughly prior to installation.
- Before installing, check the components and condition of the product, and
if any problem is found, contact the retailer.
- Avoid inserting objects or hands into the system while it is in operation
to prevent product damage and injuries.
- Check the manual when connecting cables. Incorrect connections may cause
short circuits leading to fire hazards.
- Do not block the front intake vent or the rear exhaust vent.
- Keep this unit away from heat sources, direct sunlight, water, oil, and
humid environments, and place the unit on a flat, stable, vibration-free,
and well-ventilated
area.
- Do not clean the product surface with chemicals or wet cloth. (chemicals:
industrial brightener, wax, benzene, alcohol, paint thinner, mosquito
repellent, aromatics,
lubricant, detergent etc.)
- Please wear gloves while handling this product to prevent injuries.
- Product design and specifications may be revised to improve quality
and performance.
- Zalman Tech Co., Ltd. is not responsible for any damages due
to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
|
