The world's first PWM fan speed controller, PWM Mate is a new option for PWM CPU coolers. The convenient but noisy PWM fan can be controlled either manually or automatically according to user's choice.
Move
Zalman PWM Mate Fan Speed Controller.
Zalman PWM Mate Fan Speed Controller.
Zalman PWM Mate Fan Speed Controller.
Zalman PWM Mate Features
The World's First PWM Fan Speed Controller: The controller modulates the PWM (Pulse Width Modulation) fan speed control signal allowing user defined PWM fan speed settings.
Variety of Control Modes: The 3-Step Automatic Mode and a Manual Mode provide flexible customization of fan speed control according to the user's environment.
Convenient Controls: The Mode Switch Button, Manual Speed Dial, and Mode Indicator LEDs provide convenience and ease of use.
Environment Friendly Design: Environment friendly materials incorporated for RoHS (Restriction of Hazardous Substances) compliance.
Zalman PWM Mate Specifications
| Zalman PWM Mate Specifications |
| Dimensions |
55 (L) x 24 (W) x 13.5 (H) mm |
| Weight |
12g |
| Output PWM Duty |
25% - 100% ± 5% |
| Connector |
4-Pin |

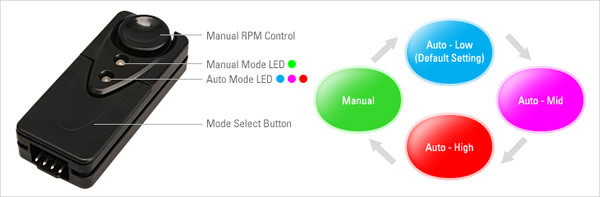

Zalman PWM Mate Mode Change Sequence

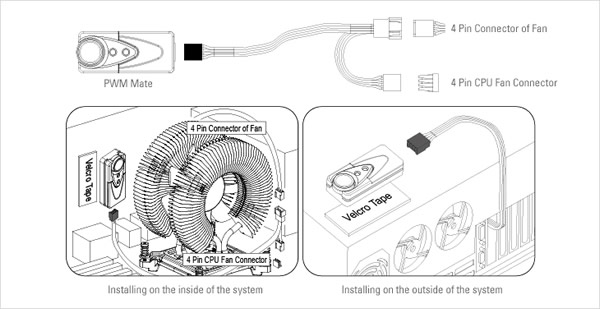

Zalman PWM Mate How To Install
Zalman PWM Mate Components
 |
- PWM Mate
- Cable for PWM Mate
- Velcro Tape
|
CAUTIONARY NOTES
- Compatible with 4-pin fan only.
- The specifications of any product may change without prior notice to improve performance.
