Processor Cooling for Peace and Performance!
There are no other coolers on earth designed like these. Now you can have excellent cooling performance but at the same time virtually no noise! The products employ advanced fin designs which give a vastly superior surface area to that offered by traditional extrusion-based products. Different versions are available to suit a variety of processors, and because of their unique design, the coolers are not only incredibly efficient at removing heat but are also very easy to install.
The Flower Cooler includes
a new fan assembly (FB123) with an adjustable bracket and a bigger
fan for better cooling performance.
The new fan assembly can be positioned
to provide optimal cooling in almost any motherboard/standard case
configuration and allows an additional fan to be installed for cooling a NP VGA Card.
Features
- CPU Flower Coolers do not generate noise and vibration in Silent Mode.
- The heat dissipating material of the Flower HeatSink (FHS) is Pure Copper and Aluminum.
- Separation of the FHS from the CPU fan prevents transfer of the fan's vibration to the CPU.
- By utilizing a 92mm fan, both the CPU and the motherboard chipset are cooled.
- The cooling fan can be mounted at any desired location, making it compatible with virtually all computer cases and motherboards
(Note: computer cases that have the power supply covering the CPU can not be used).
- With the included adjustable fan speed connector, the user can freely adjust the CPU fan's RPM.
- CPU can be cooled to a temperature sufficiently below the temperature required by the CPU manufacturer in Silent Mode.
- CPU Flower Coolers enable very stable operation of a CPU in an OVERCLOCKED environment.
* When OVERCLOCKING, the fan must be in Normal Mode.
* Quiet PC is not responsible for any damage to a system or a CPU caused by CPU OVERCLOCKING.
Product Overview

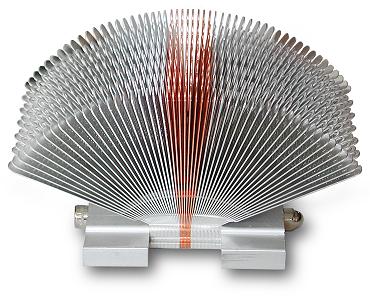

Now our most popular CPU cooler, the amazing and beautiful Zalman Flower is as versatile as it is effective. This socket 478 Pentium 4 version works up to 3 GHz and comes in a kit with everything you need, including heatsink, ultra-quiet fan, mounting bracket, Fan Mate speed controller, thermal compound, screws/bolts, clips and instructions. In addition, animated installation instructions are available.
The fan is held above the heatsink using an adjustable bracket (FB123, included) which fastens using the screws holding the AGP/PCI cards in place. Because the fan is larger than normal (92mm), it can be run very slowly yet still provide excellent airflow downward onto the heatsink. Combined with the efficiency of the flower fin arrangement and the use of copper as a fin material, this means you can have outstanding cooling performance but without the noise! The bracket is also capable of holding a second ultra-quiet 92mm fan (available separately), for cooling the AGP/PCI cards, particularly the graphics card.
As well as preventing vibration being transferred to the delicate CPU, the bracket allows positioning of the fan in any desired location, making it compatible with virtually all ATX tower/desktop cases and motherboards. However, please note that this product is not recommended for use with small form-factor computer cases which have the PSU mounted so that it covers the CPU and obstructs its airflow.
The speed of the fan is controlled using a Fan Mate variable voltage regulator, so you can set this manually to the speed you require, for best balance between noise and CPU temperature. At its lowest speed setting, adequate cooling is achieved even for the fastest processors, and the fan is almost completely inaudible.
It is recommended that you try to keep your CPU temperature below 70-75°C for reliable operation, but there will be no problem achieving this with the Flower cooler. In practice, temperatures as low as 35-50°C are often achievable. Because of its design, the Flower will appeal to people who need a quiet computer, and also those who need minimum CPU temperature for best stability when overclocking (overclocking is done at your own risk).
Although the Flower cooler looks physically very large, its appearance is somewhat deceptive. The product is compatible with all known motherboards (the heatsink has a very small footprint at its base, so that it clears raised components around CPU socket). If you are still unsure about clearances, then you can check product dimensions using the specification table below.
|
|
The Fan Mate controller is included in the Flower Cooler kit and allows total control
over the balance between silence and cooling |
|
The Flower Cooler ultra-quiet 92mm fan is held in place using an adjustable bracket fastened onto the PCI/AGP card slots as shown (card installation is not affected). This gives exceptionally low noise levels, and no vibrations are transmitted to the heatsink and CPU. |
NOTE: Some motherboards have difficulty measuring low fan RPM speeds on coolers such as this one. The problem can sometimes be fixed by updating the motherboard BIOS to the latest version available on the motherboard manufacturer's website. However, with some motherboards, the problem remains. Regardless, this will not affect performance. In addition, some motherboards will not boot if the CPU fan speed cannot be measured, as a safety feature. After rotating the Fan Mate speed control fully clockwise to enable booting, this feature needs to be disabled in the BIOS setup (set "CPU Fan Detect" or similar to "Disabled").
| Product Summary |
|
1. Designed specifically for Pentium 4 S478 up to 3 GHz
2. Best choice for excellent cooling and quietest possible operation (92mm fan)
3. Bracket can also hold second fan for VGA card cooling
4. Simple to install
|
| Model |
Zalman Flower Cooler CNPS6500B-ALCU |
| CPU compatibility |
S478 Pentium 4 only |
| CPU supported clock speeds |
All speeds (3 GHz theoretical maximum) |
| Heatsink dimensions |
120 x 83 x 65 mm |
| Base material |
Pure Copper and Aluminium |
| Weight |
400g |
| Surface area |
3300-3400 sq cm |
| Thermal resistance |
0.30 - 0.36°C/W * |
| Fan dimensions |
92 x 92 x 25 mm |
| Fan weight |
88g |
| Rotational speed |
1600 - 2500 RPM * |
| Acoustic noise level |
20.0 - 33.0 dBA * |
| Fan bearing type |
Sleeve |
| Fan Mate dimensions |
200 (L) x 21 (H) x 23 (W) mm |
| Fan Mate weight |
20g |
| Fan Mate output voltage |
5 - 11 VDC |
| Fan Mate maximum fan wattage |
6 W |
|
| * variable depending on Fan Mate setting |
How is it done?
- Firstly, because the fins have a very large effective surface area, less air needs to be shifted to produce a given rate of cooling. Therefore the fan can run slower and this produces much less motor bearing and wind noise.
- Secondly, because the fins are located perpendicular to the direction of airflow, minimal obstruction is caused to air being moved through the cooler and this reduces turbulence, decreasing wind noise even further. A lower fan speed also has the added benefits of a longer running life and a reduction in the build-up of dust, which is a common cause of premature component failure.
Compatibility
Before purchase, it is essential that you choose the correct cooler depending on which processor you intend to use it with. Compatible processors are as follows: Pentium III™, Pentium 4™, PPGA/FC-PGA Celeron™, Duron™ and Athlon™. The following tables offer advice on product selection and then the products themselves are discussed.
Please note that these coolers are not compatible with the following processors: Intel® Pentium® II, Pentium PRO® and Slot 1 (SECC) Celeron®. We regret that we have no Ultra-Quiet solutions for these processors.
| Compatible with INTEL Pentium 4(Socket 478) CPUs |
| Core Type |
Willamette (0.18 micron) |
Northwood (0.13 micron) |
| Silent Mode |
Up to 1.8 GHz |
Up to 2.8 GHz |
| Normal Mode |
2.0 GHz |
Over 3.06 GHz |
Silent Mode: The CNPS6500B-AlCu cooler kit comes with an adjustable fan speed controller (Fan Mate 1). When this controller is connected to your fan, you must turn it all the way down for this product to be running in Silent Mode.
