Introducing Zalman's new flagship quiet VGA cooler - the VF3000, featuring five 6mm heatpipes to increase heat transfer from the GPU, a variety of heatsinks to cool the surrounding components, dual 92mm LED fans and a FANMATE2 to control the fan speed.
The five heatpipes are connected to over 110 aluminum fins which are designed
to cool high end ATI GPUs. The fins are then cooled by two 92mm
fans. These fans not only cool the GPU but also the surrounding components
on the graphics card. This is done along with several heatsinks that are to
be attached to certain components on the card.
The VF3000A is for ATI graphics cards only, and has been specifically designed
for the Radeon HD5830, HD5850 and HD5870 cards. It is also important to note
that once this cooler has been installed the adjacent PCI slot will be
unusable
due to the width of the cooler.
Move
Zalman VF3000A VGA Cooler
Zalman VF3000A VGA Cooler
Zalman VF3000A VGA Cooler
Zalman VF3000A VGA Cooler
Powerful Cooling Performance
Ultra Quiet Design
Excellent Peripheral Component Cooling
Ultra Quiet 92mm Blue LED Dual Fans
High Performance Super Thermal Grease ZM-STG2M
Adjustable Fan Speed Controller - Fan Mate 2
Zalman VF3000A VGA Cooler Features
Powerful Cooling Performance: Utilizing Zalman's latest IHD (Interactive Heat transfer Design) technology in which the high performance heatpipe's 2-way heat transfer and maximum dissipation area provide powerful cooling performance.
Ultra Quiet Design : The heatsink is optimized for high performance during quiet operation, incorporating a switching noise (the high frequency harmonic noise that can result from voltage regulation) eliminated high capacity dual 92mm fan for intensified cooling performance and minimized noise.
Excellent Peripheral Component Cooling: The dual 92mm fans cool not only the heatsink and VGA RAM, but all other peripheral components surrounding the VGA chipset.
Ultra Quiet 92mm Blue LED Dual Fans: An ultra quiet 92mm fans are incorporated for minimized noise and Blue LEDs
heighten the cool aesthetics.
High Performance Super Thermal Grease ZM-STG2M: The high performance super thermal grease ZM-STG2M maximizes heat transfer from the GPU to the base of VF3000A for intensified cooling performance.
Adjustable Fan Speed Controller: FAN MATE 2, an adjustable fan speed controller, is included for performance
and noise level setting according to user preference.
Zalman VF3000A Specifications
| VGA Cooler Specifications |
| Dimensions |
239(L) x 98(W) x 51(H)mm |
| Weight |
430g |
| Base Material: Fin |
Pure Aluminum |
| Base Material: Base |
Pure Copper |
| Base Material: Heatpipes |
Pure Copper |
| Fan Dimensions |
92(L) x 92(W) x 15(H) mm |
| Fan Bearing Type |
EBR Bearing |
| Fan Speed: Silent Mode |
1,300rpm ± 10 % |
| Fan Speed: Normal Mode |
2,500rpm ± 10 % |
| Fan Noise Level: Silent Mode |
18dBA ± 10 % |
| Fan Noise Level: Normal Mode |
32dBA ± 10 % |

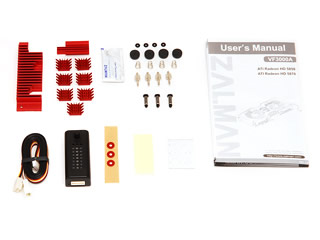

Zalman VF3000A VGA Cooler Components
 |
- VF3000A
- VGA RAM Heatsink
- Thermal Grease (ZM-STG2M)
- Rubber Rings
- PVC Washers
- Fixing Nuts
- Springs
- Nipples
- FET Heatsink
- Rubber Washers
- Fixing Pins
- FAN MATE 2
- FAN MATE 2 cable
- Double-sided Tape
- User's Manual
|
CAUTIONARY NOTES
- This cooler is specifically optimized and designed for reference VGA cards ATI Radeon HD5830, HD5850 and HD5870.
- By installing this product on a VGA (Video Graphics Array) card, two PCI slots immediately below the PCIe (or AGP) slot occupied by the VF3000A will become unusable.
- If this product is to be installed on a recently released VGA card, please check for compatibility at Zalman's website first.
- If the VGA card and/or its components interfere with the installation of this product, then stop the installation, refer to the list of compatible VGA cards or motherboards at Zalman's website, and install this product with one of the compatible VGA cards or motherboards.
- Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or any irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Please keep out of reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- During transportation of the system, the cooler must be removed. Zalman is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be revised to improve quality and performance.
- Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
