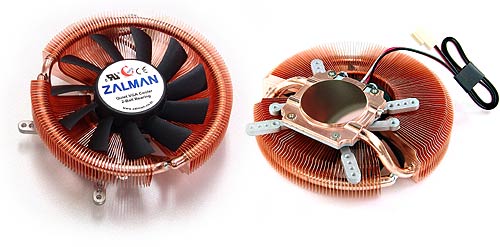

Zalman VF900-Cu Quiet Dual Heatpipe VGA Cooler is the highest performing VGA cooler utilizing heatpipe technology. The VF900-Cu has been tested on the latest ATI cards and has resulted in 6 - 9 degree's cooling difference when compared to those VGA coolers currently on the market.
More importantly, this VGA cooler reduces noise levels to 25 dB in Normal Mode and is universally compatible with both ATI and nVidia VGA cards.
Features
- The ultimate quiet cooler for video cards
- Pure copper heatsink and dual heatpipes for maximum performance
- Ultra-thin (0.2mm) copper fins minimizes airflow resistance
- Supplied with FANMATE2 controller to balance cooling and noise
- Lightweight design minimizes excess force on the VGA card
Specifications
| Weight |
185g |
| Heatsink Material |
Pure Copper |
| VGA RAM heatsinks supplied |
Yes, 8 |
| Fan Type |
80mm, 2-Ball Bearing |
| Fan Speed |
1350 - 2400 RPM |
| Noise Level |
18.5 - 25.0 dB(A) |
| Dimensions (LxWxH) |
96 x 96 x 30 mm |

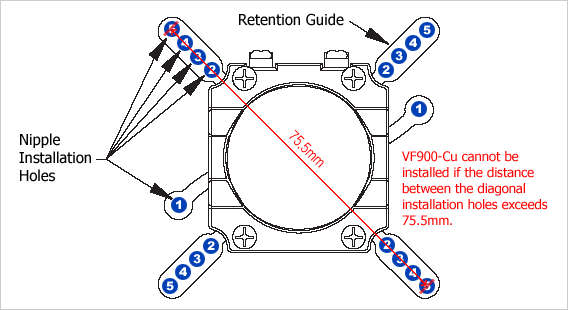

Compatibility Diagram
Compatibility Chart
| Nipple Installation Holes |
VGA Card |
 |
ATI X1600 Series
ATI X1300 Series
ATI Radeon 9*** Series (except 9550/9600)
ATI Radeon X*** Series
NVIDIA Geforce4 MX Series
NVIDIA Geforce FX 5200
NVIDIA Geforce FX 5500
NVIDIA Geforce FX 5600(FX 5700)
NVIDIA Geforce 6600 Series (except 6600 AGP Series) |
 |
NVIDIA Geforce4 Ti 4*** Series
NVIDIA Geforce FX 5700(Ultra) Series
NVIDIA Geforce FX 5800 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series) |
 |
ATI X1600 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
NVIDIA Geforce 7600 Series |
 |
NVIDIA Geforce FX 5900 Series
NVIDIA Geforce FX 5950 Series |
 |
ATI X1900 Series
ATI X1800 Series
NVIDIA Geforce 7900 Series
NVIDIA Geforce 7800 Series (except 7800GS)
NVIDIA Geforce 7600 Series
NVIDIA Geforce 6800 Series |
Components
- Heatsink Assembly (VF900-Cu)
- Eight RAM Heatsinks
- Four Nipple
- Four Fixing Nuts
- One PVC Washer Plate
- Four Rubber Rings
- Four Springs
- Thermal Grease
- FAN Controller(FAN MATE 2)
- Cable for FAN MATE 2
- Dual-sided Tape(to attach FAN MATE 2)
- User's Manual - in English and Korean
