Product Details - Zalman VF950 LED GPU VGA Cooler
The Zalman VF950 is equipped with Zalman's new and patented VFP (Variable Fin Profile) technology. The fan has been installed inside the heatsink which maximizes the cooling efficiency and the coolers maximized dissipation surface area provides excellent performance. Use of one high performance WBT(W Bending Technology) heatpipe helps provide this Graphic car cooler with maximum heat transfer.
The heatsink weight has been minimized with the use of thin aluminum fins (0.3mm), which eliminates excessive force on the VGA card to minimize possible stress on the graphics card. The Zalman V960 not only cools the VGA chipset and VGA RAM, but all other VGA components as well.
The newly improved installation structure provides easy installation and broad compatibility so that it can fit some of the larger graphics cards that are on the market.
The Zalman VR950 also comes with an 80mm Blue LED Fan for excellent performance and great aesthetics.
The Zalman VF950 GPU Heat Sink does not generate noise or vibration in Silent Mode.
Move
Zalman VF950 GFX quiet heat sink cooler.
Zalman VF950 near silent GPU cooler.
Zalman VF950 low vibration low noise GPU cooler.
Zalman VF950 GPU cooler for quiet GFX cards.
Quiet graphics card heat sink by Zalma.
-
Low noise graphics processing unit cooler.
GPU cooler made by Zalman, model vf950 for quiet pcs.
Quiet Zalman 950vf graphics card cooler.
GPU Heat Sink Specifications
| Heat Sink Specification |
|---|
| Dimensions |
126(L) x 80(W) x 30(H) mm |
| Weight |
190g |
| Base Material |
Dissipation Fins : Pure Aluminum
Base : Pure Copper, Heatpipe : Pure Copper |
| Heat Sink Fan Specification |
|---|
| Dimensions |
80(L) x 80(W) x 15(H) mm |
| Bearing Type |
2 Ball-Bearing |
| Speed |
Silent Mode |
1,400rpm ± 10 % |
Normal Mode |
2,500rpm ± 10 % |
| Noise Level |
Silent Mode |
19.0dBA ± 10 % |
Normal Mode |
29.0dBA ± 10 % |

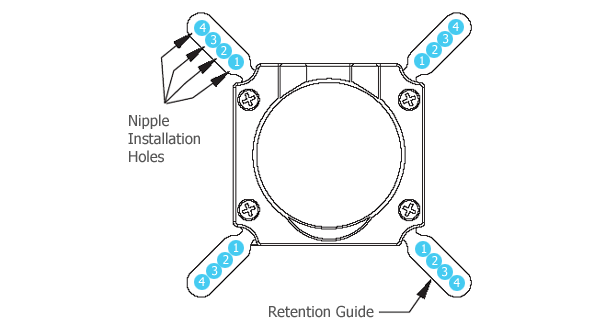

Nipple Installation Guide
Installation guide for the Zalman VF950 Graphics Card Cooler.
| Zalman VF950 GPU Installation Compatibility |
| 1 |
NVIDIA GeForce4 TI 4 series
NVIDIA GeForce FX 5700(Ultra) series
NVIDIA GeForce FX 5800 series
NVIDIA GeForce 6600 series (6600 AGP series exception) |
| 2 |
NVIDIA GeForce 6600 series (6600 AGP series exception) |
| 3 |
NVIDIA GeForce FX 5900 series
NVIDIA GeForce FX 5950 series |
| 4 |
ATI Radeon HD 4850 series
ATI Radeon HD 4830 series
ATI Radeon HD 3850 series
ATI Radeon HD 2600XT (DDR4) series
ATI Radeon X1800XL series
NVIDIA GeForce 9800GT series
NVIDIA GeForce 9600GT series
NVIDIA GeForce 9600GSO series
NVIDIA GeForce 8800GT series
NVIDIA GeForce 8800GS series
NVIDIA GeForce 8600GTS series
NVIDIA GeForce 8600GT series
NVIDIA GeForce 7950 series(7950GX2 exception)
NVIDIA GeForce 7900 series
NVIDIA GeForce 7800 series(7800GS exception)
NVIDIA GeForce 7600 series
NVIDIA GeForce 6800 series |
Graphics Card Cooler Components
 |
- One (1) VGA Cooler
- Eight (8) RAM Heatsink's
- Four (4) Nipples
- Four (4) Fixing Nuts
- One (1) PVC Washer Plate
- Four (4) Rubber Rings
- Four (4) Springs
- One (1) Thermal Grease
- One (1) Fan Controller (FAN MATE 2)
- One (1) Cable for FAN MATE 2
- One (1) Double-Sided Tape (to attach FAN MATE 2)
- One (1) User’s Manual
|
Graphics Card Cooler Reviews
| Zalman VF950 Reviews |
To be frank, I'm more than impressed with the VF-950. It does everything that a GPU Cooler should do and more. It's not too big and it's not too small either, so it's not going to cause a distraction in your system unlike other much larger coolers. Read the full review at XSReviews.com |
 |
Cautionary Notes
By installing this product on a VGA (Video Graphics Array) card, a PCI slot adjacent to the PCIe (or AGP) slot will become unusable.
The product cannot be installed on Matrox VGA cards, NVIDIA PCX 5 , NVIDIA GeForce 6600/7600/7900 AGP series
and ATI Radeon 9550/9600 series.
If the VGA card and/or its components interfere with the installation of this product, then stop the installation, refer to the list of compatible VGA cards at Zalman's website, and install this product with one of the compatible VGA cards.
The use of a fan positioned on the front side of the case and an exhaust fan positioned on the rear side of the case is recommended for enhancement of product performance.
Zalman is not responsible for any damages caused by overclocking
