Zalman's Modular 3-Bay HDD Rack supports up to 3 S-ATA 3.5" hard drives and provides Hot-Swap support.
Move
Zalman ZM-HDR1 Modular 3-Bay HDD Rack.
Zalman ZM-HDR1 Modular 3-Bay HDD Rack.
Zalman ZM-HDR1 Modular 3-Bay HDD Rack.
Zalman ZM-HDR1 Modular 3-Bay HDD Rack.
Supports HDD Hot-Swap.
Powerful HDD Cooling via 92mm Fan.
Tool-Free Design for Convenient Installation.
Convenient Press-Open HDD Bay Cover.
LED Indicators for HDD Operation.
Zalman ZM-HDR1 Modular
3-Bay HDD Rack Features
Modular 3-Bay HDD Rack: The ZM-HDR1 can be installed in
most standard three 5.25" bays, improving
compatibility with Zalman enclosures and those made by other manufacturers.
Supports HDD Hot-Swap: HDD Hot-Swap is supported, which makes
adding or removing HDD's convenient, and vibration is minimized by vibration
damping silicone rings.
Powerful HDD Cooling via 92mm Fan: A 92mm fan on the rear side of the bay provides powerful HDD cooling, and included
fan controller means you can set the fan speed according to your preference.
Tool-Free Design for Convenient Installation and Maintenance: The HDD clips onto the mounting tray which is designed for tool-free installation,
making adding or removing HDD quicker and more convenient.
Convenient Press-Open HDD Bay Cover: HDD door cover is opened easily by a One-Touch press of the door, making access
to the HDD convenient.
LED Indicators for HDD Operation: Blue LED is mounted in the front and indicates HDD operations.
Zalman ZM-HDR1 Modular 3-Bay HDD Rack
| Zalman ZM-HDR1 Specifications |
| Dimensions |
149(L) x 127.5(W) x 244.5(D)mm |
| Weight |
1.1kg |
| Material |
Steel (GI) 0.8T, ABS |
| Drive Bay |
3.5” S-ATA HDD Hot-swap x 3 |
| LED Color |
Blue |
| Fan Bearing Type |
Sleeve |
| Fan Dimensions |
92(L) x 92(W) x 25(D)mm |
| Fan RPM (Silent Mode) |
1,100rpm ± 10% |
| Fan RPM (Performance Mode) |
2,400rpm ± 10% |
| Fan Connector |
3-Pin |
| Fan Input Voltage |
12V |
| Supports Hot-Swap |
SATA I, SATA II |

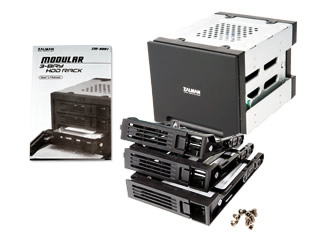

Zalman ZM-HDR1 Components
 |
- Main Unit
- HDD Trays
- Bolts
- User's Manual
|
