Description
Zalman's ZM-MH200 HUB has state of the art technology and great features. With sleek design, this HDD Dual Docking Station supports up to 2 SATA HDDs simultaneously, Port-Multiplier function, Hot Swap, Plug & Play and Blue LED power and HDD access indicator.
Move
Zalman ZM-MH200 HUB HDD Docking Station.
Zalman ZM-MH200 HUB HDD Docking Station.
Zalman ZM-MH200 HUB HDD Docking Station.
Supports Up to 2 SATA HDDs Simultaneously.
Two Built in USB Hub Ports.
Integrated SD, SDHC and Micro SD Card Reader.
Supports Hot-Swap and Plug & Play.
Rapid Data Exchange Through eSATA or USB 2.0 Cable Connection.
Close Up View of eSATA & USB 2.0 Cable Connection.
Blue LED HDD Access Indicator.
Features
- Two built-in USB hub ports: Two Built-in USB ports can
be used as USB hub to connect various peripheral devices.
- Supports up to 2 SATA
HDDs simultaneously: Supports "Port Multiplier®" function
enabling two SATA HDDs to exchange data through a single USB connection and
supports
2.5" and 3.5" SATA I/II HDDs up to 3TB.
- Integrated SD, SDHC and micro SD card reader: Two slots
for multi card readers support SD, SDHC and micro SD cards.
- Supports Hot-Swap
and Plug & Play: Supports Plug & Play and HDD Hot-Swapping,
so devices can be removed without turning the computer's
power off.
- Rapid data exchange through eSATA or USB 2.0 cable connection: Supports data transfer rates up to 3Gbps through eSATA or up to 480Mbps
through USB 2.0 interface.
- Blue LED HDD access indicator: ZM-MH200's top
panel features a blue LED power & HDD access
indicator.
Zalman ZM-MH200 HUB Specifications
| Dual HDD Docking Specifications |
| Product Code |
ZM-MH200 HUB |
| Dimensions |
158(L) x 158(W) x 90(H) mm |
| Materials |
Plastic |
| Color |
Black/White |
| Internal Interface |
2.5" & 3.5" S-ATA I/II |
| External Interface |
USB 2.0, e-SATA SD/SDHC & Micro SD |
| Power Supply |
Input: AC 100 ~ 240V / 50/60Hz / MAX 1.2A Output: DC 12V / 3A |

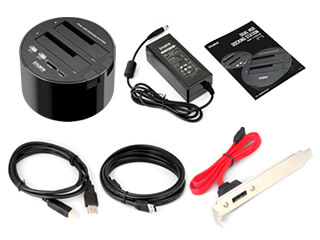

Zalman Dual HDD Docking Station Components
 |
- ZM-MH200 HUB
- Adaptor
- USB 2.0 Cable
- e-SATA PCI Bracket
- e-SATA Cable
- Foot Rubber (Replacement Extra)
- User's Manual
|
Cautionary Notes
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Keep this unit away from heat sources, direct sunlight, water, oil, and humid environments, and place the unit on a flat, stable, vibration-free, and wellventilated area.
- Do not clean the product surface with chemicals or wet cloth. (chemicals: industrial brightener, wax, benzene, alcohol, paint thinner, mosquito repellent, aromatics, lubricant, detergent etc.)
- Do not connect unit to computer without installing HDD to MH200. HDD and unit damage may occur.
- Avoid inserting objects or hands into the system while it is in operation to prevent product damage and injuries.
- Malfunctions can cause HDD data lose. Please backup critical data to another storage device. Zalman is not responsible for lost data.
- Changing RAID mode change, partitioning, and formatting will delete all HDD data. Please take proper caution.
- Transportation during HDD activity can damage HDD. Please turn the unit's power OFF unit before transport.
- When removing HDD from MS200, please take caution as the HDD can be hot.
- For extending periods of storage and chances of thunderstorms, please unplug device before storage to prevent short circuiting and electrocution.
- Product design and specifications may be revised to improve quality and performance.
- Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
|
