Description
Zalman's ZM-MH200 U3 has state of the art technology and great features. With sleek design, this HDD Dual Docking Station supports up to 2 SATA HDDs simultaneously, Port-Multiplier function, USB3.0 RAID, Hot Swap, Plug & Play and Blue LED power and HDD access indicator.
Move
Zalman ZM-MH200 U3 HDD Docking Station.
Zalman ZM-MH200 U3 HDD Docking Station.
Zalman ZM-MH200 U3 HDD Docking Station.
Supports Up to 2 SATA HDDs Simultaneously.
Supports USB3.0 RAID.
Data Transfer Rate Up to 5Gbps with USB3.0.
Supports Hot-Swap and Plug & Play.
High Quality USB3.0 Cable.
Blue LED HDD Access Indicator.
Features
- Installs up to 2 SATA HDDs: Supports "Port Multiplier®" function enabling two SATA HDDs to exchange data through a single USB connection and
supports 2.5" and 3.5" SATA I/II HDDs up to 6TB(3TB for each slot).
- Supports USB3.0 RAID: The rapid USB 3.0 interface supports DUAL, JBOD, RAID 0 and RAID 1 modes.
Dual: Each slot is recognized as an independent HDD: JBOD: Two HDD's are combined and recognized as a single HDD drive.
RAID 0: Data is striped into 2 HDDs for increased performance, but damage in 1 drive can cause total loss of data.
RAID 1: By mirroring the same data in 2 HDDs, damage in 1 drive does not affect data in the other HDD.
- Transfer rate up to 5Gbps: Supports the new USB 3.0 interface with a data transfer rate data up to 5Gbps when connected to a PC supporting USB 3.0.
- High Quality USB3.0 cable for rapid data access and exchange: High quality, premium USB 3.0 cable and chipset have been utilized for a stable and error-free data transfer.
- GPM(Green Power Management): In order to reduce the energy consumption and extend the HDD's lifespan, the HDD's are also switched to stand-by mode with the PC. The ZM-MH200 U3 will enter Standby mode if idle for 10 minutes. The unit requires startup time to exit Standby mode.
Zalman ZM-MH200 U3 Specifications
| Dual HDD Docking Specifications |
| Product Code |
ZM-MH200 U3 |
| Dimensions |
158(L) x 158(W) x 90(H) mm |
| Materials |
Plastic |
| Color |
Black/White |
| RAID Mode |
Dual, JBOD, RAID 0, RAID 1 |
| Internal Interface |
2.5" & 3.5" S-ATA I/II |
| External Interface |
USB 3.0 |
| Power Supply |
Input: AC 100 ~ 240V / 50/60Hz / MAX 1.2A Output: DC 12V / 3A |

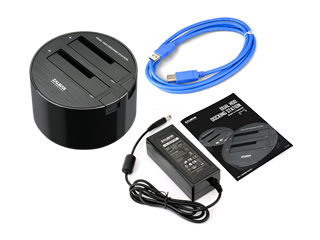

Zalman Dual HDD Docking Station Components
 |
- ZM-MH200 U3
- Adaptor
- USB 3.0 Cable
- Foot Rubber (Replacement Extra)
- User's Manual
|
Cautionary Notes
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Keep this unit away from heat sources, direct sunlight, water, oil, and humid environments, and place the unit on a flat, stable, vibration-free, and wellventilated
area.
- Do not clean the product surface with chemicals or wet cloth. (chemicals: industrial brightener, wax, benzene, alcohol, paint thinner, mosquito repellent, aromatics,
lubricant, detergent etc.)
- Do not connect unit to computer without installing HDD to MH200. HDD and unit damage may occur.
- Avoid inserting objects or hands into the system while it is in operation to prevent product damage and injuries.
- Malfunctions can cause HDD data lose. Please backup critical data to another storage device. Zalman is not responsible for lost data.
- Changing RAID mode change, partitioning, and formatting will delete all HDD data. Please take proper caution.
- Transportation during HDD activity can damage HDD. Please turn the unit's power OFF unit before transport.
- When removing HDD from MS200, please take caution as the HDD can be hot.
- For extending periods of storage and chances of thunderstorms, please unplug device before storage to prevent short circuiting and electrocution.
- Product design and specifications may be revised to improve quality and performance.
- Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
|
