Zalman's Northbridge Water Block is the ideal for customers who currently own a RESERATOR and would like to
silence their noisy Northbridge stock cooler. Many motherboard do come with fanless Northbridge coolers,
which is great from a noise point of view, but the heat still remains in the PC chassis. By using the Zalman ZM-NWB1,
the heat is effectively taken of the chassis and transferred in the water flow where it is either naturally
or actively dissipated.

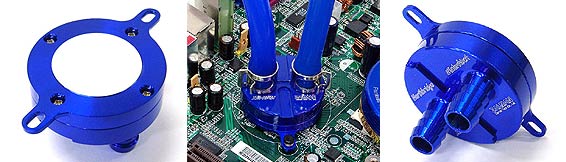

As you can see from the image to the right the ZM-NWB1 is compatible with motherboards that incorporate
push-pin or hooks to hold the existing Northbridge heatsink in place. Installation instructions are provide. There is
also animated instruction available here.
The ZM-NWB1 is an ideal choice for any water cooling system, whether it be Zalman's own RESERATOR1-PLUS,
or a system from another manufacturer. Either way, the cooling available to the Northbridge chipset will
be second to none! Please note that this part is not supplied with the RESERATOR1-PLUS, therefore you do
need to purchase it separately.
Product Specifications
| Model |
ZM-NWB1 |
| Compatibility |
All motherboards with push-pin holes or hooks |
| Base Material |
Pure aluminum |
| Dimensions |
43(L) X 43(W) X 14(H) mm |
| Weight |
48g |
| Compatible Tubes (OD x ID) |
13 x 10mm, 13 x 9mm, 12 x 8mm, 11 x 8mm, 10 x 8mm |
