The ZM-OP1 Noiseless Fan is comprised of a 80mm slim fan and a fan grill. It can be attached without using a supporting bracket. By attaching this noiseless fan, the ZM80C-HP VGA Heatpipe Cooler's cooling performance is greatly enhanced.

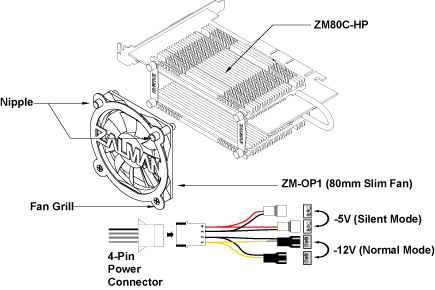

Exploded View
Fan Kit Components
- Two (2) Nipples
- 80mm Fan Grill
- 80mm Slim Fan
- Multi-Connector
- Bolts
Product Specifications
| Model |
Zalman ZM-OP1 |
| Weight |
75 g |
| Dimensions |
80(L) x 80(W) x 15(H) mm |
| Bearing Type |
2-Ball |
| Fan Speed (Silent Mode) |
1400 RPM ± 10% |
| Noise Level (Silent Mode) |
20 dB ± 10% |
| MTBF |
50,000 hrs |
| Grill |
80 mm |
| Multi-Connector |
ZM-MC1 (3-Pin) |
Cautions When Using ZM80C-HP Optional Package ZM-OP1
- Fans requiring start-up voltage of higher than +5V cannot use multi-connector's 5V connector. Check fan's specifications before use.
- This product does not support fan speed measurement.
