This simple but very useful little fan can be easily installed in a free PCI slot and will provide additional cooling to all parts of your PC, especially around the video card area. The ZM-SC100 obtains its power through the PCI slot so there is no need for additional wiring, and has a choice of three speed settings (low, medium or high) so you can choose the best performance/noise balance according to your preference. The switch is located on top of the product for ease of access, and has an adjacent small red LED to indicate power. The fan itself also has an LED which glows blue during operation. Like any PCI card, please ensure your PC is powered down before installing or removing the ZM-SC100.
Move
Zalman ZM-SC100 PCI GPU quite cooling fan.
Zalman ZM-SC100 low noise PCI graphics card cooler.
Zalman ZM-SC100 near silent PCI VGA graphics cooling unit.
Zalman ZM-SC100 quiet PCI graphics chip, card and processor cooler.
Zalman ZM-SC100 Graphics Card Cooler
Superior VGA Card & System Cooling
- Cools the graphic card's RAM, FET, and other core components for stable system operation.
PCI Slot Powered
- Powered by the motherboard's PCI slot, there is no need for additional power cables.
92mm Blue LED Fan
- The high capacity blue LED fan optimizes cooling performance and heightens the modding effect.
RPM Adjustability
- The fan's RPM can be set to 'low', 'medium', and 'high' according to the user's preference of noise level and performance.

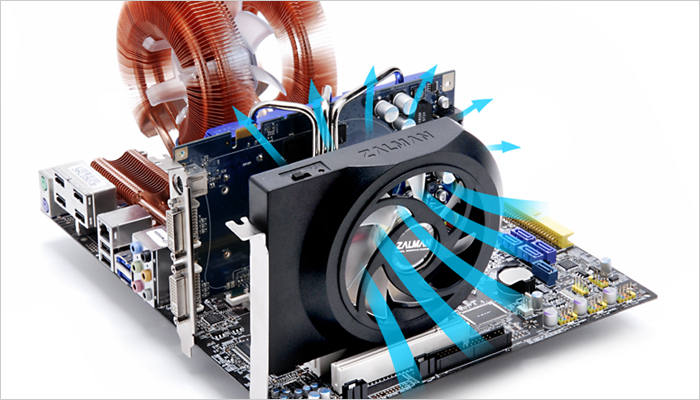

Zalman ZM-SC100 graphics card cooler showing good use of airflow for excellent cooling.
Zalman Graphics Card Cooler Specifications
| Zalman ZM-SC100 Specifications |
|---|
| Dimensions |
153(L) x 28.5(W) x 123(H) mm |
| Weight |
203g |
| Input Voltage |
DC 12V & 5V |
| Bearing Type |
2 Ball-Bearing |
| Fan Spec |
12V, 0.35A, 92mm |
| Fan Speed |
1400 - 2300 ± 10% |
| Noise Level |
18.0dBA - 27.5dBA ± 10% |
| Life Expectancy |
50,000 Hours |
Cautionary Notes
The specifications of any Zalman product may change without prior notice to improve the performance thereof.
