Zalman ZM-Z9 PLUS ATX Mid-Tower Case

Zalman introduce their new Z9 series of mid-tower enclosures with steel construction, front and top mesh panels, black coated interior, bottom-mounted PSU design plus tool-free installation of HDDs and SSDs. The Z9 PLUS also has a 2-channel fan controller, external LED temperature display and side acryl tuning.

Features

• Front Mesh Cover for High Cooling Performance: The front mesh bay cover provides cool air into the system while dust filters prevent dust from entering.
• Supports up to 7 System Fans: Up to 7 system fans are installed to expel hot air effectively from the case.
• Supports Bottom PSU Installation and Aperture for Cable Management: Z9 Plus supports bottom PSU installation and provides an aperture for cable management to make better use of interior space.
• Black Interior Coating: The interior of chassis is coated black to provide a sense of unity and elegant design.
• Tool Free HDD Installation with Anti-Vibration Rubber: The server-type Tool-Free HDD Mount Trays allow easy HDD installation/removal and maintenance.
• Spacious Interior for Installing 290mm Card: The interior has been designed to be spacious for easy installation and maintenance of various components.
• Front I/O module for Easy Component Change: Front I/O module enables the location of DVD-ROM and other components to be changed easily according to user preference.
• 2-Channel Fan Controller and Temperature Display: 2-Channel Fan controller for adjusting the system temperature and external LED temperature display are provided. By controlling noise and interior temperature with the fan speed, system can be operated at the most optimal condition.
• Side Acryl Tuning: Side Acryl Tuning is provided for users to view the interior of gaming system.
• Supports 4 USB 2.0: Front I/O module provides 4 USB 2.0 ports for user convenience and expandability.
• Supports Front, Top, Side 120mm Blue LED fan and Rear 120mm Fan: Four 120mm fans deliver maximum cooling, and 3 Blue LED fan emphasizes cool aesthetics.
• Front and Bottom Dust Filters: Dust filters in the front and bottom mesh covers prevent dust from entering the system and keep the internal components dust-free.
• Supports Solid State Drive (SSD): Space is provided on the back of M/B plate for installing 2.5" HDD/SSD.
• Separate Apertures for Convenient CPU Cooler Installation: Separate apertures for CPU cooler are provided for convenient CPU cooler installation without having to remove motherboard from case.
• 3IN1 Adapter Tray Provided: 3IN1 Adapter Tray is provided for installing FDD / 3.5" HDD / 2.5" HDD/SSD.
• Tube Apertures for Liquid Cooling Systems: Tube apertures are provided at the rear of the case for convenient water cooling set-up and maintenance.

Zalman Z9 PLUS Quiet Mid-Tower Case Specifications

Quiet ATX Mid-Tower Specifications
Dimensions:	207(W) x 464(H) x 504(D)mm
Weight:	7.2kg
Materials:	Plastic, Steel
Motherboard Compatibility	Standard ATX / m-ATX
Power Supply Compatibility	Standard ATX / ATX12V
VGA Compatibility	Full Size (290mm)
Expansion Slots	7
External 5.25" Drive Bay	3
Internal 3.5" Drive Bay	5
External 3.5" Drive Bay	1
Internal 2.5" Drive Bay	1
Front Cooling Component	120mm /140mm fan x 1 (120mm Blue LED fan x 1 standard)
Top Cooling Component	120mm /140mm fan x 2 (120mm Blue LED fan x 1 standard)
Bottom Cooling Component	120mm /140mm fan x 1 (option)
Rear (L) Cooling Component	120mm fan x 1 (standard)
Side Cooling Component	120mm fan x 2 (120mm Blue LED fan x 1 standard)
Front I/O Ports	Mic x 1, Headphones x 1, USB 2.0 x 4, Fan Controller, Temperature Display
Color	Black

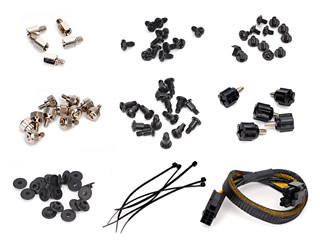

Zalman Z9 PLUS Quiet Mid-Tower Components

Main Unit Stand-off A Bolts (BH 6-32*6) [PSU/PCI Slot Installation] B Bolts (PWH M3*5) [M/B, FDD, SSD Installation] C Bolts (M3*6) [5.25" Bay ODD Installation] D Bolts (#6-32*4) [3.5" Bay HDD Installation] E-Bolts (#6-32*6) [3.5" HDD Installation] HDD Dust Proof Rubber [3.5" Bay HDD Installation] Cable Ties CPU 12V Extension Cable User's Manual

Cautionary Notes

1. Please read this manual thoroughly prior to installation.
2. Before installing, check the components and condition of the product, and if any problem is found, contact the retailer.
3. Avoid inserting objects or hands into the system while it is in operation to prevent product damage and injuries.
4. Check the manual when connecting cables. Incorrect connections may cause short circuits leading to fire hazards.
5. Do not block the front intake vent or the rear exhaust vent.
6. Keep this unit away from heat sources, direct sunlight, water, oil, and humid environments, and place the unit on a flat, stable, vibration-free, and well-ventilated area.
7. Do not clean the product surface with chemicals or wet cloth. (chemicals: industrial brightener, wax, benzene, alcohol, paint thinner, mosquito repellent, aromatics, lubricant, detergent etc.)
8. Please wear gloves while handling this product to prevent injuries.
9. Product design and specifications may be revised to improve quality and performance.
10. Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
