The Zalman ZM1000-HP Plus is updated version of the ZM1000-HP. This quiet power
supply is 80 Plus Silver Certified, and has a new heatpipe block design which
enhances cooling efficiency and reduces noise.
Move
Zalman ZM1000-HP Plus quiet PSU
Zalman ZM1000-HP Plus quiet PSU
Zalman ZM1000-HP Plus quiet PSU
Zalman ZM1000-HP Plus quiet PSU
Dual Heatpipes for Optimal Cooling
and Miminum Noise
Two-Forward Switching Design
Less Than 1W Standby Power Consumption
Modular Cables for Cable Management
& Air Circulation
Latest PSU Design Standard ATX12V v2.3
Four Independent +12V DC Outputs
Dual & 3-Way Graphics Card Support
Ultra Quiet 140mm Fan
Active PFC & Japanese-made Capacitors
ATX20+4 Pin Main Connector
Supports ATX12V CPU 4-Pin & EPS12V
CPU 8-Pin
Sleeved Cables
EZ Grip Connectors for ODDs & HDDs
Gold-Plated Terminals & 16AWG Wires
Multiple Safety Features
Features
Dual Heatpipes for Maximum Cooling Performance and Mininum Noise
- Dual heat-pipes with ultra cooling performance are incorporated on the main heat source, thus enabling high load operation at low fan RPM and dramatically reducing noise levels.
Two-Forward Switching Design
- The Two-Forward Switching Design minimizes switching loss and internal heat, for enhanced reliability and stability.
Highly Efficient Design and 80 PLUS® Silver Certified
- This power supply is capable of reaching a maximum of 90% efficiency (230VAC, Full & Typical Load) through its use of high switching frequency and low power-loss circuitry. This product has been 80 PLUS® Silver certified and guarantees higher efficiency compared to uncertified products. 80 PLUS® is an energy efficiency certification program administered by Ecos Consulting of the U.S.A.
Less Than 1W Standby Power Consumption
- The energy efficient Green IC circuitry consumes much less standby power (less than 1W) compared to other PSU's without this feature.
Modular Cables
- Modular cables provide organized cable management and improved air circulation inside the computer case.
ATX12V v2.3
- The latest PSU design standard is incorporated for compatibility with a wide range of CPUs, motherboards, and graphic cards.
Four +12V DC Outputs
- Four independent +12V outputs provide a stable power supply to major PC components.
Dual & 3-Way Graphic Card Support
- Three 6-Pin and three 6+2 Pin power connectors for PCI Express support and 3-way graphics card system.
Ultra Quiet 140mm Fan
- A Two-Ball Bearing fan maximizes airflow while minimizing noise for an superbly quiet computing environment.
Active PFC for Improved Power Factor & Reduced Harmonics
- By implementing Active PFC (Power Factor Correction), instead of Passive PFC (about 75%) has been improved up to 99% while harmful harmonic frequencies are reduced to meet the Line Harmonic Distortion Requirement of IEC61000-3-2 Class D.
Japanese-made Capacitors
- Japanese capacitors are incorporated in the 1st stage of smoothing circuit for reliability and stability even after an extended period of operation.
ATX20+4 Pin Main Connector
- ATX20+4 pin main connector broadens the range of motherboard compatibility.
Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
- Two ATX12V CPU 2x2(4-Pin) power cables can be combined to form an EPS12V CPU 8-Pin power cable.
Sleeved Cables
- All power cables are sleeved for easy cable management and improved air circulation inside the computer case.
EZ Grip Connectors for ODDs & HDDs
- EZ Grip Connectors allow convenient installation to ODDs & HDDs.
Gold-Plated Terminals & 16AWG Wires
- All connector terminals are gold-plated to minimize contact resistance and power loss. 16AWG wires, thicker than 18AWG, are incorporated to minimize voltage drop during high load operation.
Multiple Safety Features
- Safety features including Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, and Over-Temperature Protection safeguard the system.
WEEE & RoHS Compliant
- Complies with WEEE & RoHS environmental directives of the European Union.
- WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances)
- International Safety and EMC Certifications
Zalman ZM850-HP Plus Specifications
| Electrical & Physical Characteristics |
AC Input Range |
Voltage |
100VAC
~ 240VAC |
DC Output |
Frequency |
50Hz~60Hz |
Output V. |
Output Load Rating |
Combined
Power |
AC Input Current
(Rated) |
100VAC |
12A |
Imin |
Imax |
Ipeak |
240VAC |
6A |
+3.3V |
0.0A |
25A |
|
180W |
1000W |
PFC Type |
Active PFC |
+5V |
0.5A |
30A |
|
Power Factor |
99% Maximum
|
+12V1 |
0.1A |
28A |
30A |
984W |
Inrush Current Limit
(@ Cold start at 25°C) |
115VAC |
60A |
+12V2 |
0.0A |
25A |
27A |
230VAC |
150A |
+12V3
|
0.0A
|
35A
|
37A |
Efficiency |
90% Maximum @230VAC, Typical load |
+12V4 |
0.0A |
28A |
30A |
DC Output
Voltage
Regulations |
Output V. |
Regulation Range |
At Full
Load |
-12V |
0.0A |
0.5A |
|
6W |
+3.3VDC |
±5% +3.14V~+3.47V |
+5VSB |
0.1A |
3.5A |
|
17.5W |
+5VDC |
±5% +4.75V~+5.25V |
Protection Features |
+12V1DC |
±5% +11.4V~+12.6V |
Over
Voltage Protection(OVP) |
+12V2DC |
±5% +11.4V~+12.6V |
Over
Current Protection(OCP) |
+12V3DC
|
±5% +11.4V~+12.6V
|
Short Circuit Protection(SCP) |
+12V4DC
|
±5% +11.4V~+12.6V
|
Over Temperature Protection(OTP) |
-12VDC |
±10% -10.8V~-13.0V |
Under Voltage Protection(UVP) |
+5VSB |
±5% +4.75V~+5.25V |
Ambient Temperature |
DC Output
Ripple
& Noise |
Output V. |
Regulation Range |
At Full
Load |
Operation |
0°C ~ +40°C |
+3.3VDC |
50mV |
Storage |
-20°C
~ +60°C |
+5VDC |
50mV |
Ambient Humidity |
+12V1DC |
120mV |
Operation |
10%RH
~ 90%RH |
+12V2DC |
120mV |
Storage |
5%RH ~ 95%RH |
+12V3DC
|
120mV
|
Dimensions |
+12V4DC
|
120mV
|
210(L)
x 150(W) x 86(H) mm |
-12VDC |
120mV |
Weight |
+5VSB |
50mV |
4kg
(Full Package) |

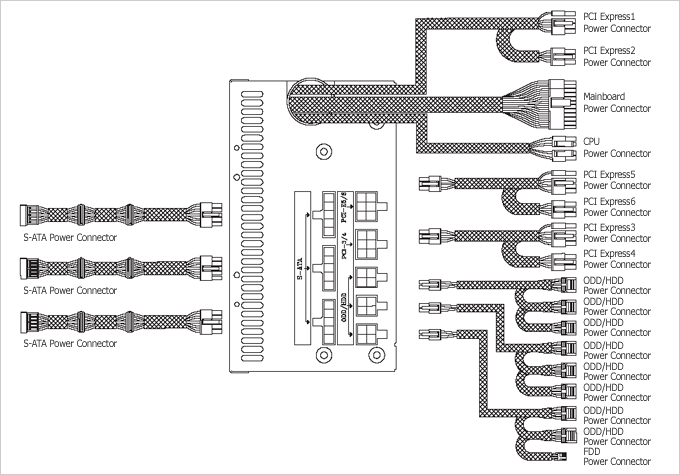

Output Power Cable Specifications
Zalman Power Supply Components
 |
- Power Supply
- Fixing Bolts
- Velcro Ties
- AC Power Cord
- User's Manual
|
Cautionary Warning
Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may result in damage to the motherboard.
Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
If the Power On light fails to light up when the main power button is pressed after completing the installation procedure, then some devices may be plugged in incorrectly or the motherboard may be faulty.
