Complies with Intel ATX12V ver. 2.2
ZM500-HP is ultra-quiet power supply complies with ATX12V Version 2.2, and supports the lastest dual-core CPUs(Intel Core2 series/AMD Athlon64-X2 series), as well as the lastest dual graphic card systems(SLI).

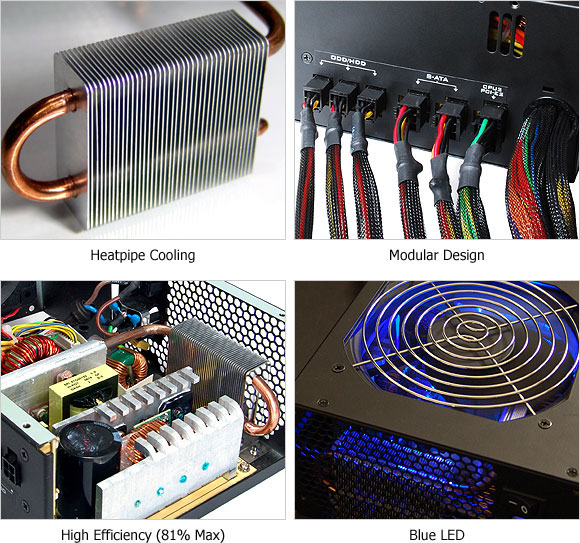

Features
- Heatpipe cooling system
- Modular design
- High efficiency, 81% max
- Blue LEDs
- Four independent 12V rails
PSU Specifications
|
500W PSU |
| Model Number |
ZM500-HP |
| +3.3V maximum output current |
24 A |
| +5V maximum output current |
24 A |
| +12V1 maximum output current |
18 A |
| +12V2 maximum output current |
25 A |
| Combined maximum output +3.3V / +5V |
140 W |
| Combined maximum output +12V1/ +12V2 |
423 W |
| ATX12V (4-pin) support |
Yes |
| EPS12V (8-pin) support |
Yes |
| 20-pin ATX connector |
Yes |
| 24-pin ATX connector |
Yes |
| PCI-E support (6-pin) |
Yes |
| Mains input voltage |
100-240 VAC, 47-63 Hz |
| Physical dimensions |
86 x 150 x 165 mm |
| Power conversion efficiency |
81% maximum at full load |
| Remote power on / off |
Yes |
| Fan speed control |
Thermal, maximum speed limited |
| Number of floppy drive connectors |
2 |
| Number of hard drive connectors |
7 |
| SATA connectors |
2 |
| Pentium 4 supported (ATX12V and AUX connectors) |
Yes |
| Over voltage protection |
Yes, on all outputs |
| Short circuit protection |
Yes, on all outputs |
| EMC, safety approvals |
UL, C-UL, CE, VDE, CB-NEMKO, TUV, FCC, MIC |
| +5VSB maximum standby current |
2.5 A |
| Monitor pass-through power socket |
No |
| Master power on/off switch |
Yes |
Heatpipe Installed for Maximum Cooling Performance and Ultra-Quiet Operation
A heatpipe with ultra-high cooling performance incorporated on the power supply’s main
rectifiers enables high load operation even at low RPM for a dramatic reduction in noise levels.
Improved Power Factor & Reduced Harmonics through Active PFC
By implementing Active PFC(Power Factor Correction), the Power Factor (PF) is improved from 75% (Passive PFC) up to 99% while harmful harmonic frequencies are reduced to meet the line harmonic distortion requirements of IEC61000-3-2 Class D.
High Efficiency Design
This power supply is capable of reaching a maximum of 84% efficiency(230VAC, Full & Typical Load) through its use of high switching frequency and low power-loss circuitry.
ATX20+4 Pin Main Connector
ATX20+4 pin main connector broadens the range of motherboard compatibility.
Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
Two ATX12V CPU 2?2(4-Pin) power cables can be combined to form an EPS12V CPU
8-Pin power cable.
Dual PCI Express VGA Power 6-Pin Connector
Support Nvidia SLi dual graphic card systems.
Module Cables
Modular cables provide organized cable management and improved air circulation inside the computer case.
Ultra Quiet 120mm Fan
Ultra quiet 2-Ball Bearing 120mm fan maximizes the airflow and minimizes the noise level enabling a noiseless computing environment with optimized cooling.
Two Independent +12VDC Outputs
Two +12VDC rails supply power independently to the CPU, VGA, motherboard, and peripheral components for the highest level of stability and performance.
EZ Grip Connectors for ODDs & HDDs
EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs.
Gold-Plated Terminals
Gold-plated the terminals minimize power loss by reducing contact resistance.
Sleeved Cables
All power cables are sleeved for easy cable management and improved air circulation inside
the computer case.
Multiple Safety Features
Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, Over-Temperature Protection.
Internal Blue LED
Blue LEDs are installed inside the power supply for cool aesthetics.
WEEE & RoHS
Complies to WEEE & RoHS Environmental Directives of Europe. - WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances)
