Introducing the new Zalman ZM600 ST PSU with Two-Forward Switching Design to minimise switching loss and internal heat. The Zalman ZM600-ST ultra quiet PSU offers outstanding reliability and durability.
Move
Zalman ZM600-ST quiet PSU.
Zalman ZM600 ST quiet power supply unit.
Zalman ZM-600 ST near silent power supply
Zalman ZM 600 ST virtually silent PSU.
Japanese Capacitors Provide High Reliability.
Two-Forward Switching Circuit Design.
ATX12V Ver2.3.
Two independent +12V outputs for core components.
Supports Dual Graphic Card Systems.
Ultra Quiet 120mm fan increases airflow.
Active PFC for High Power Factor & Reduced Harmonics.
ATX20 + 4Pin Main Connector.
Supports ATX12V CPU 4Pin and EPS12V CPU 8Pin.
Sleeved Cables.
Multiple Safety Features.
Features
80 PLUS® Certified High Efficiency Design
- With up to 86% efficiency (230V AC, 0% load) this power supply is 80 PLUS® certified and guarantees higher efficiency compared to uncertified products. 80 PLUS® is an energy efficiency certification program administered by Ecos Consulting of the U.S.A.
Outstanding Reliability and Stability
- Japanese capacitors are incorporated in the 1st stage smoothing circuit for reliability and stability even after an extended period of operation.
Two-Forward Switching Design
- The Two-Forward Switching Design minimizes switching loss and internal heat, for enhanced reliability and stability.
ATX12V v2.3
- The latest PSU design standard is incorporated for compatibility with a wide range of CPUs, motherboards, and graphic cards.
Dual Rail +12V DC Output
- Two independent +12V outputs for core components facilitate high stability operation.
Dual Graphic Cards Support
- 6-Pin and 6+2 Pin PCI-E Connectors are provided for dual graphic card setups. ATI CrossFire X Certified.
Ultra Quiet 120mm Fan
- An ultra quiet cooling fan increases airflow while minimizing noise for an ultra quiet computing environment.
Active PFC for Improved Power Factor & Reduced Harmonics
- By implementing Active PFC (Power Factor Correction), instead of Passive PFC with a Power Factor (PF) of 75%, the PF is improved up to 99% while harmful harmonic frequencies are reduced to meet the Line Harmonic Distortion Requirement of EC61000-3-2 Class D.
ATX20+4 Pin Main Connector
- ATX20+4 pin main connector enhances compatibility for both 20-Pin and 24-Pin type motherboard power connectors.
Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
- Two ATX12V CPU 2x2(4-Pin) power cables can be combined to form an EPS12V CPU 8-Pin power cable.
Sleeved Cables
- All power cables are sleeved for easy cable management and improved air circulation inside the computer case.
Multiple Safety Features
- Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, and Over-Temperature Protection features protect the system from potential electrical hazards
WEEE & RoHS Compliant
- Complies with WEEE & RoHS environmental directives of the European Union.
- WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances)
- International Safety and EMC Certifications
Zalman ZM600-ST Specifications
| Electrical & Physical Characteristics |
AC Input Range |
Voltage |
115VAC ~ 240VAC |
DC Output |
Frequency |
47Hz~63Hz |
Output V. |
Output Load Rating |
Combined
Power |
AC Input Current
(Rated) |
115VAC |
10A |
Imin |
Imax |
Ipeak |
230VAC |
5A |
+3.3V |
0.1A |
24A |
|
140W |
600W |
PFC Type |
Active PFC |
+5V |
0.2A |
24A |
|
Power Factor |
99% Maximum
|
+12V1 |
0.1A |
30A |
|
500W |
Inrush Current
Limit
(@ Cold start at 25°C) |
115VAC |
50A |
+12V2 |
0.5A |
30A |
|
230VAC |
100A |
-12V |
0.0A |
0.3A |
|
|
Efficiency |
86% Maximum @230VAC,
Typical load |
+5VSB |
0.0A |
2.5A |
3.5A |
DC Output
Voltage
Regulations |
Output V. |
Regulation Range |
At Full
Load |
Protection Features |
+3.3VDC |
±5% +3.14V~+3.47V |
Over Voltage Protection(OVP) |
+5VDC |
±5% +4.75V~+5.25V |
Over Current Protection(OCP) |
+12V1DC |
±5% +11.4V~+12.6V |
Short Circuit Protection(SCP) |
+12V2DC |
±5% +11.4V~+12.6V |
Over Temperature
Protection(OTP) |
-12VDC |
±10% -10.8V~-13.0V |
Under Voltage Protection(UVP) |
+5VSB |
±5% +4.75V~+5.25V |
Ambient Temperature |
DC Output
Ripple
& Noise |
Output V. |
Specification |
At Full
Load |
Operation |
0°C ~ +40°C |
+3.3VDC |
50mV |
Storage |
-20°C ~ +80°C |
+5VDC |
50mV |
Ambient Humidity |
+12V1DC |
120mV |
Operation |
5%RH ~ 95%RH |
+12V2DC |
120mV |
Storage |
5%RH ~ 95%RH |
-12VDC |
120mV |
Dimensions |
+5VSB |
50mV |
140(L) x 150(W)
x 86(H) mm |

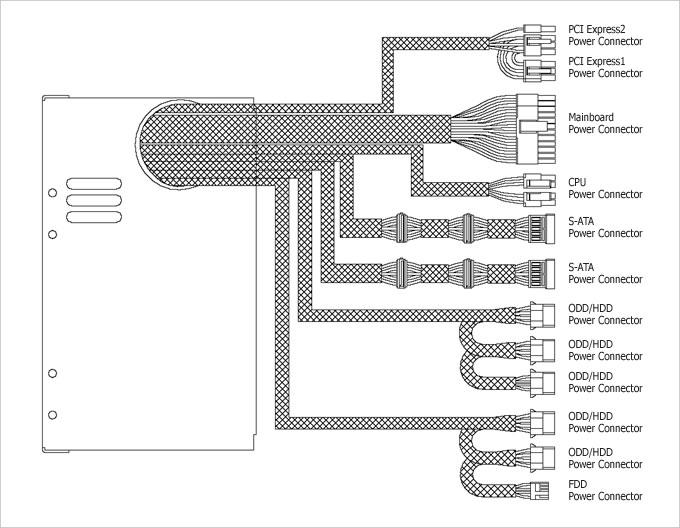

Output Power Cable Specifications
Zalman Power Supply Components
 |
- One (1) Power Supply
- Five (5) Cable Ties
- Four (4) Fixing Bolts
- One (1) AC Power Cable
- One (1) User Manual
|
Cautionary Warning
Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may result in damage to the motherboard.
Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
If the Power On light fails to light up when the main power button is pressed after completing the installation procedure, then some devices may be plugged in incorrectly or the motherboard may be faulty.
