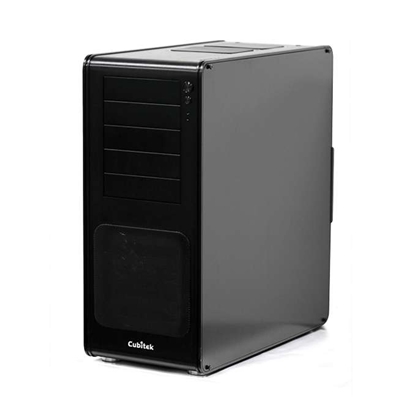

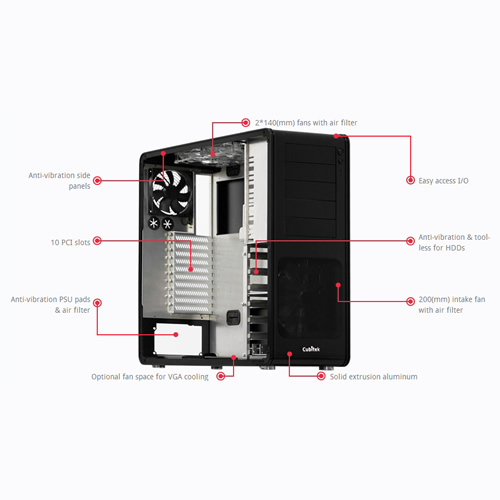

Cubitek HPTX ICE Features
- Solid - expertly crafted with extrusion aluminum, ICE Series has the lightness of aluminum with the durability and strength of steel.

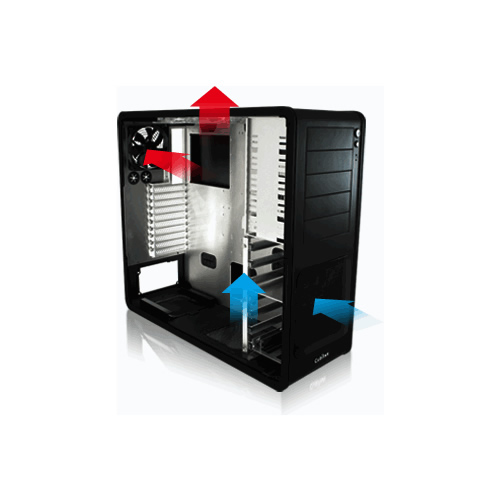

- Cool - dissipating heat faster than steel built chassis, the ICE Series extrusion aluminum construction keeps your system cool. Additionally, the well-placed fans and efficient interior layout ensures optimal system temperatures.
- Quiet - thicker materials mean less vibration. Capitalizing on the strength of the extrusion aluminum build and anti-vibration design of the side panels, the ICE Series eliminates vibration-induced-noise with its solid form.

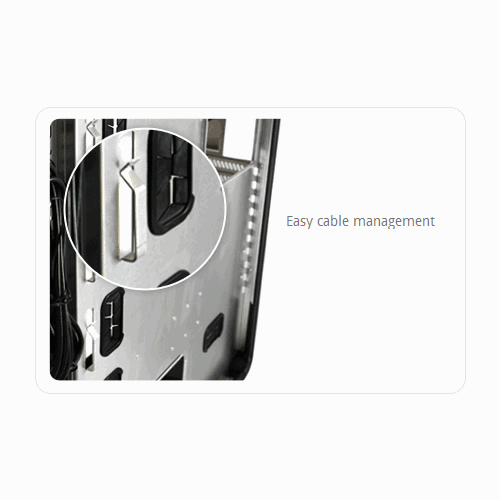

- Neat - looking sleek and professional thanks to its brushed extrusion aluminum build, the Ice Series keeps the interior neat and organized with its easy cable management.
- Anti-vibration PSU pads and air filter
- Easy access I/O
Cubitek HPTX ICE Specification
| Technical Specification | Cubitek HPTX ICE |
|---|---|
| Item Name | HPTX ICE |
| Item Number | CB-ICH-B509 |
| Color | Black with Aluminium Interior |
| Case Dimension (mm) | W 230 H 559 D 613 |
| Carton Size (mm) | W 285 H 610 D 697 |
| Net Weight (Kg) | 8.9 |
| Gross Weight (Kg) | 10.5 |
| Material | Aluminum |
| M/B | Mini ITX ; Micro ATX ; ATX ; XL-ATX ; EATX ; HPTX |

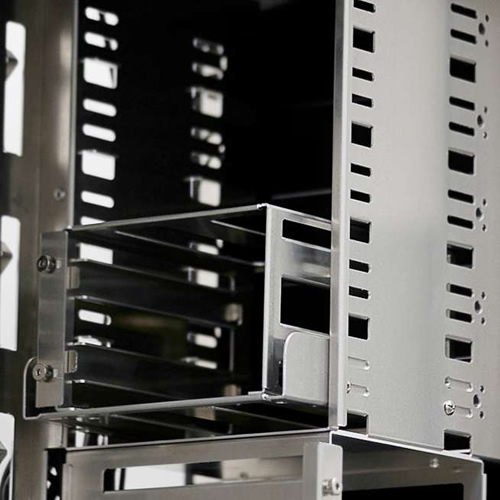

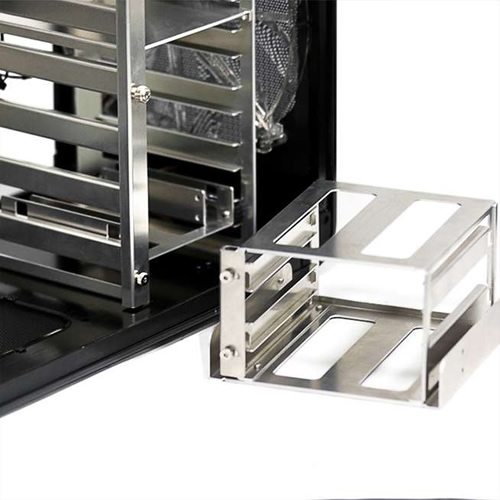

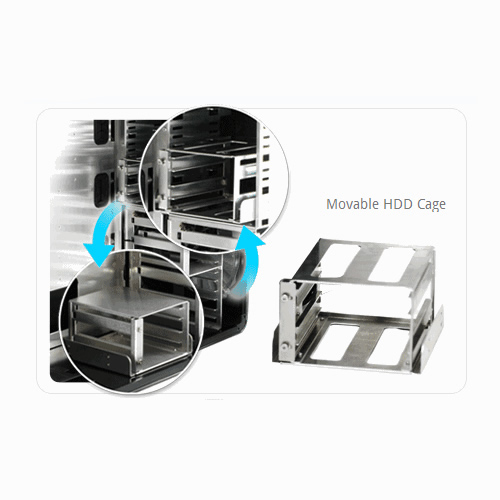

| Drive Bay | 5 x 5.25" Drive Bay (Exposed) 7 x 3.5" Drive Bay (Hidden) + 1 x Moveable HDD cage (2 x 3.5") 2 x 2.5" Drive Bay (Converted by one 3.5" drive bay) |
| I/O Panel | 2 x USB 3.0 L:850 (mm) 2 x USB 2.0 L:850 (mm) 1 x Audio L:950 (mm) 1 x Mic L:950 (mm) |
| Expansion Slots | 10 |

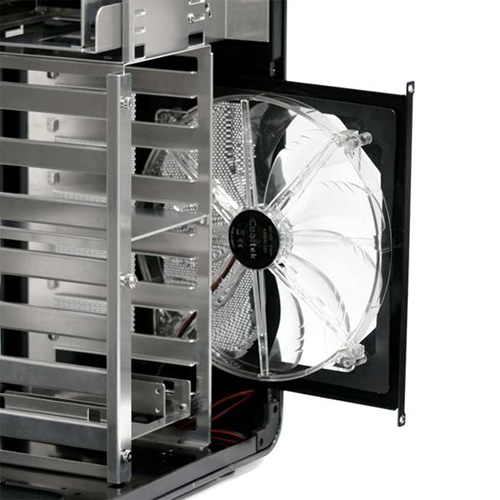

| Cooling System | Front 200(mm) Fan ( Blue LED ) 3pin; L:500(mm) Inflow 57.76 CFM; 24.45 dBA 2 x Top 140(mm) Fan ( Blue LED ) 3pin; L:250(mm) Outflow 49.05 CFM; 21.35 dBA Rear 120(mm) Fan ( Black ) 3pin; L:250(mm) Outflow 38.83 CFM; 17.34 dBA Bottom 140(mm) Fan ( Optional ) |
| PSU | Standard ATX PSU (Max. 300(mm)) |

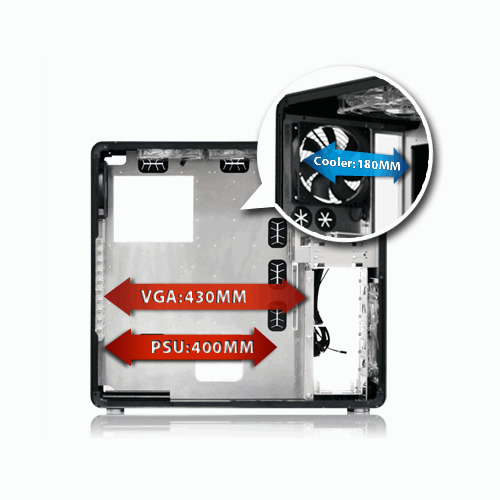

| Maximum Compatibility | VGA: Max. 430(mm) long CPU Cooler: Max. 180(mm) height |
