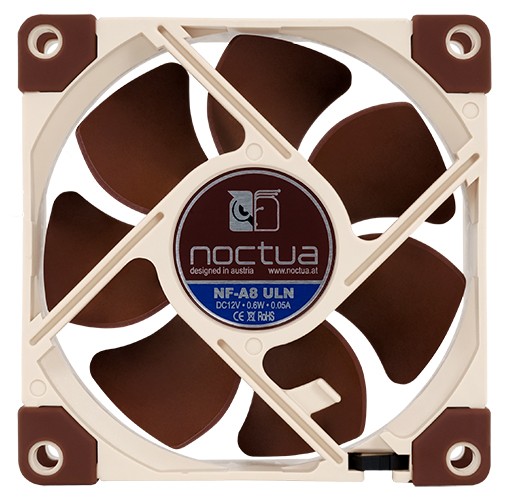

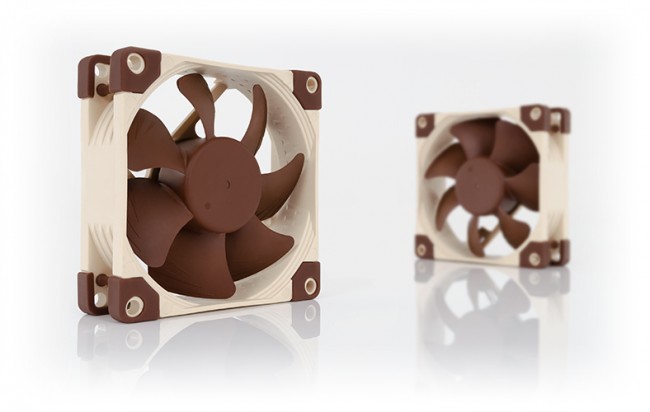

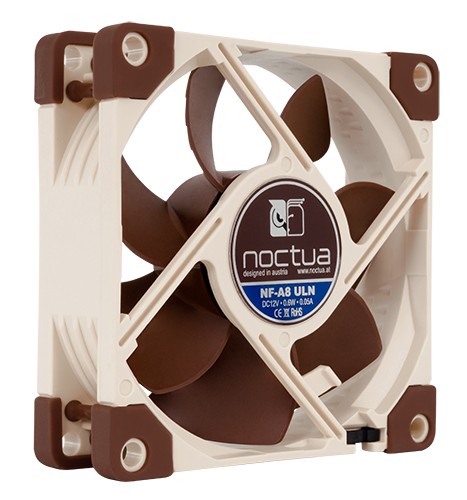

Noctua NF-A8 ULN 80mm Fan
The NF-A8 is a highly optimized, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimization) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The ULN version provides super-slow 1400/1100rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Noctua NF-A8 ULN Features
Noctua’s NF-R8 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 80mm fan. Thanks to its thoroughgoing aerodynamic optimizations, the NF-A8 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.

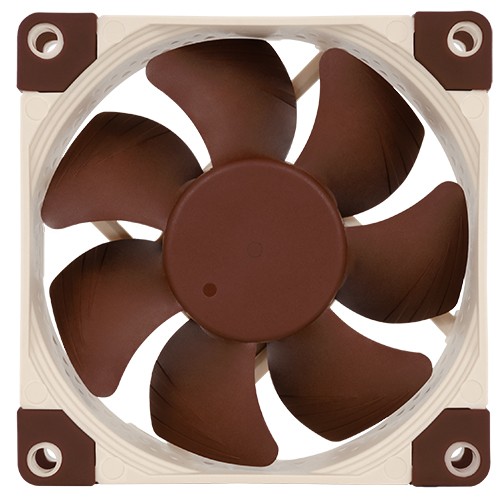

The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

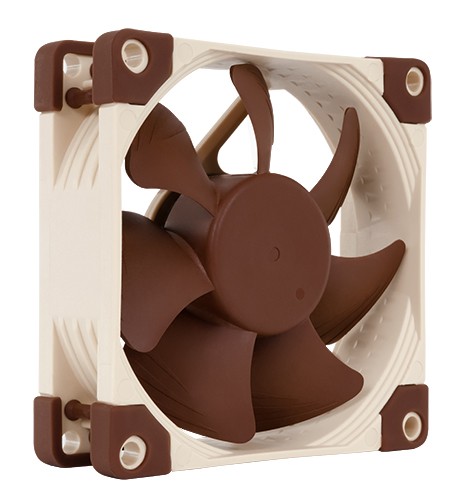

Noctua’s AAO (Advanced Acoustic Optimization) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
Inner Surface Microstructures
With the tips of the fan blades plowing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Noctua Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
The NF-A8 features the further optimized second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A8 remarkably quiet even at very close distance..
2 speed settings for maximum quietness
Providing 1400 and 1100 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.
Extensive Cabling Options

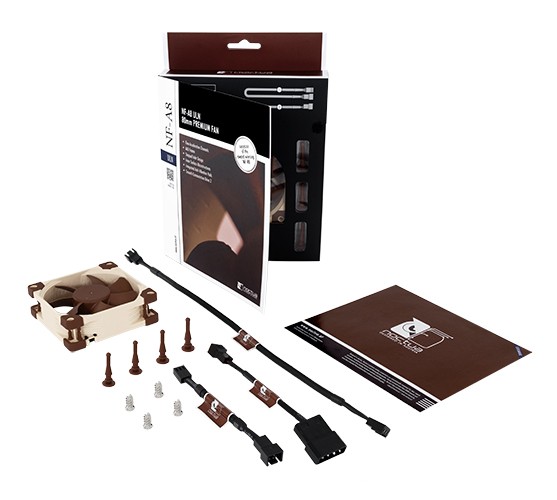

The fan’s short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-A8 fan to the same PWM fan header for automatic control.
6 years Manufacturer’s Warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A8 features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.
Noctua NF-A8 ULN Specifications
|Noctua NF-A8 ULN|
|Blade Geometry||A-Series with Flow Acceleration Channels|
|Frame Technology||AAO (Advanced Acoustic Optimization)|
|Rotational Speed (+/- 10%)||1400 RPM|
|Rotational Speed with U.L.N.A. (+/- 10%)||1100 RPM|
|Airflow||34.8 m³h - 20.48 cfm|
|Airflow with U.L.N.A.||25.6 m³h - 15.07 cfm|
|Acoustical Noise||10.4 dB(A)|
|Acoustical Noise with U.L.N.A.||6.5 dB(A)|
|Static Pressure||1.05 mm H2O|
|Static Pressure with U.L.N.A.||0.61 mm H2O|
|Max. Input Power||0.6W|
|Input Current||0.05 A|
|MTBF||> 150,000 h|
|Scope of Delivery||
- Datasheet for Noctua NF-A8 ULN
- Installation Manual for Noctua NF-A8 ULN
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at email@example.com or call Toll Free (877) 205-2020 for more information.
