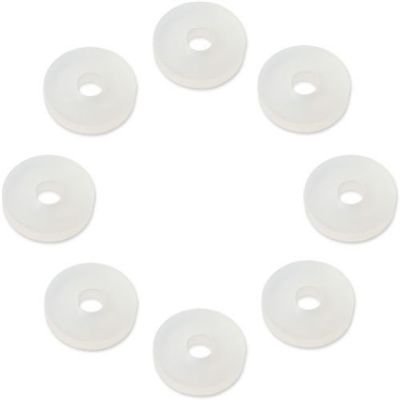

Acousti Anti-Vibration Silicone Washers 8 Pk - Translucent

Price: $1.25
  • SKUAP1003WC8
- +

These soft silicone washers are ideal for damping vibration from fans, hard drives, optical drives and power supplies. They are cheap, simple to install, and can be surprisingly effective. Although many PC components create noise in themselves, this can be made much worse when components are installed into a PC case, and their noise can become amplified by vibration of the metal onto which the component is mounted. These soft silicone general-purpose washers seek to reduce or eliminate this vibration effect, which often manifests itself as a deep, annoying rumbling sound.

Simply put one washer between the device and the metal panel onto which it is mounted, then put another washer onto the screw so it sits under the screw head, then screw the device into place. The silicone washers will sit on either side of the metal panel, and significantly reduce the amplified vibrational noise from the fan, drive or power supply. Easy!

Image shows the AP-1003W-C Anti-Vibration Silicone Washers Technical Drawing and Installation Example

AP-1003W-C Anti-Vibration Silicone Washers Technical Drawing and Installation Example.

The washers are available in retail packs of 8 and OEM packs of 1000 . 8 washers are needed to mount one fan/PSU/HDD/ODD, or 1000 washers can be used to mount 125 devices. If you decide to use only 4 washers per device, they will go twice as far, but the sound deadening effect may be lessened.

AP-1003W-C Anti-Vibration Silicone Washers (pack of 8) Features

  1. Super-soft silicone washers available in packs of 8 and 1000
  2. Excellent for reducing vibrational fan, drive and PSU noise
  3. Great value for money
  4. Easy to install - fit and forget
  5. Non-rubber material will not perish or degrade with time


AP-1003W-C Anti-Vibration Silicone Washers 8 Pack Specifications
Part code AP-1003W-C
Pack size 8 pcs
Washer thickness 2.0mm ±2%
Outer diameter 10.0mm ±2%
Inner hole diameter 2.5mm ±2%
Weight each 0.1745 g
Color Milky white translucent / clear
Material Soft silicone dampening polymer
Hardness Shore A40
Toxicity Non-toxic
REACH environmental compliance Yes
Flame retardancy UL94-V0
Electrical dielectric strength 23 kV/mm
Volume resistivity 6x10^7 Mohm.m
Normal Operating Temperature Range -20°C to +70°C
Warranty 24 months
