Description

Zalman introduce the CNPS9900 MAX CPU cooler with "composite heatpipe" technology which allows a Qmax of 300W. The CNPS9900 MAX has a 135mm LED fan, black nickel plated fins and has a broad compatibility covering both Intel 1155 / 1156 / 1366 / 775 and AMD AM3 / AM2+ / AM2.


Hide Thumbs First Previous Pause Next Last
Slideshow speed: 5 seconds

Move
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Zalman CNPS9900 MAX Quiet CPU Cooler.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Powerful Cooling Performance [Qmax: 300W].
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Ultra Quiet 135mm Blue LED fan.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Ultra Quiet 135mm Red LED fan.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Black-Pearl Nickel Plating.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Black-Pearl Nickel Plating.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    PWM Fan Seed Control.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    High Performance Super Thermal Grease ZM-STG2.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Versatile Compatibility - for Broad Range of Sockets.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    Intel Clip.
  • Image shows the Zalman CNPS9900 MAX Quiet CPU Cooler.
    AMD Clip.

Image shows the Zalman CNPS9900MAX Quiet CPU Cooler.



Features

  • Powerful Cooling Performance [Qmax: 300W]: Optimally designed pure copper fins effectively disperse heat away from the CPU via composite heatpipes, while the high capacity 135mm fan quickly cools the heatsink for stable operation of high performance CPUs. CNPS9900 MAX utilizes Composite Heatpipe which is 50% more effective in transferring heat compared to ordinary heatpipes.
    Image shows the Zalman CNPS9900 MAX Composite Heatpipe design.
  • Ultra Quiet 135mm Blue/Red LED Fan: An ultra quiet 135mm fan is incorporated for minimized noise. The Blue / Red LEDs heighten the cool aesthetics.
  • Black-Pearl Nickel Plating: The entire copper heatsink of CNPS9900 MAX is Black-Pearl® Nickel Plated for long-term corrosion resistance, while the deep Black-Pearl® tone along with the high intensity Blue / Red LEDs reinforce its powerful aesthetics.
  • PWM Fan Speed Control: The PWM(Pulse Width Modulation) Fan automatically adjusts fan speed(RPM) according to the CPU's temperature, while the included Resistor Cable(RC7P) provides the option of reducing the input voltage for overall reduction of fan speed and noise.
  • High Performance Super Thermal Grease ZM-STG2: The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS9900 MAX for intensified cooling performance.
  • Versatile Compatibility: CNPS9900 MAX accommodates a broad range of sockets. Intel LGA1155 / 1156 / 1366 / 775. AMD AM3 / AM2+ / AM2.

Zalman CNPS9900 MAX Quiet CPU Cooler Specifications

Quiet CPU Cooler Specifications
Dimensions: 94(L) x 131(W) x 152(H)mm
Weight: 755g
Materials: Pure Copper / Black-Pearl Nickel Plated
Dissipation Area: 5,402cm2
Fan Bearing: Long life bearing
Fan RPM: 900 ~ 1,500rpm ± 10 % (RC7P connected)
900 ~ 1,700rpm ± 10 % (RC7P not connected)
Noise: 18 ~ 27 dB(A) ± 10 % (RC7P connected)
18 ~ 30 dB(A) ± 10 % (RC7P not connected)
Compatibility: Intel LGA1155 / 1156 / 1366 / 775
AMD AM3 / AM2+ / AM2.

Zalman CPU Cooler Components

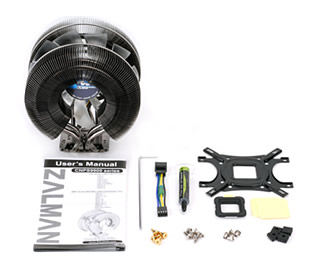

Image shows the Zalman CNPS9900 MAX components.
  • CNPS9900 MAX
  • Backplate
  • Thermal Grease (ZM-STG2)
  • Resistor (RC7P)
  • Wrench
  • Gold Bolts (Socket 1366)
  • Silver Bolts (Socket 1155 / 1156 / 775 / AMD)
  • Intel / AMD Clip
  • Nut (Slide) Caps
  • Nuts
  • Loading Block
  • Double-Sided Tape
  • User's Manual

Cautionary Notes

  1. Avoid inserting objects or hands into the fan while it is in operation to prevent product damage and injuries.
  2. Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention.
  3. To prevent possible injuries, gloves must be worn while handling this product.
  4. Excessive force exerted on the fan may cause damage to the fan and/ or system.
  5. Use and keep product away from the reach of children and pets.
  6. Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
  7. Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking.
  8. Before transportation of the system, the cooler must be removed.
  9. Zalman is not responsible for any damages that occur during the transport of a system.
  10. Enable PWM function in BIOS settings after installation.
  11. Product design and specifications may be revised to improve quality and performance.
  12. Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
