Thermalright HR-03 GTX Quiet Video Card Cooler for nVidia GTX280 and GTX260

Retail Price: $59.95
Price: $15.00
- +

The HR-03 series started life early 2007 and is highly recommended by many computer hardware enthusiasts. It doesn’t matter if it’s the HR-03 R600 or the HR-03 GT, they are all able to bring out the best in your high end video card with unprecedented overclocking results by providing maximum cooling performance.

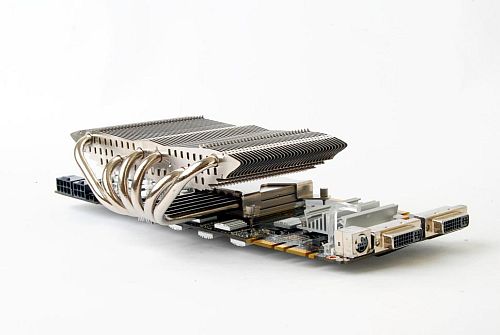

Thermalright ultra quiet heatsink shown installed on video card.


  • 6 quality heatpipes for maximum amount of heat transfer to work with 120mm*25mm fan for best configuration to suit your needs (fan not included).
  • Nickel-plated heatpipes to reduce oxidation effect, maintaining top performance for long term usage.
  • Proprietary through holes on fins for efficient ventilation and proficient cooling.
  • Heatpipes soldered to every heatsink fin to increase heat transfer efficiency.
  • Includes the VRM heatsink with proprietary thru holes adapted from the High Riser Series for best heat dissipation.
  • Sleek and stylish appearance.
Thermalright ultra quiet graphics card cooler shown from top angle.

Technical Specifications

  • Dimension: L133 x W156 x H38 mm Weight: 410g
  • Recommended Fan: 120 x 120 x 25mm fan
  • Heat pipes: Six heat pipes Nickel Plated Base material: copper

Compatible Graphic Cards

  • nVidia GTX280
  • nVidia GTX260 (65mm)
  • nVidia GTX285
  • nVidia GTX260 (55mm) (VRM Heatsink not included)

Please Note: When installing on a GTX Series video card a 120mm fan must be used.

Thermalright’s FAQs on the HR-03 GTX can be found here.
