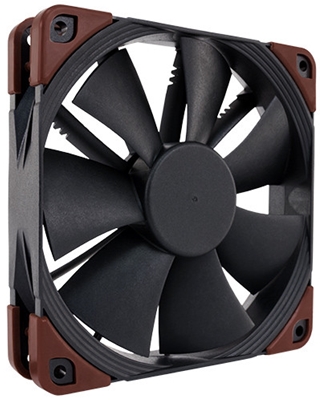

Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM 120mm Fan
Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM Specifications
|Mounting hole spacing
|105 x 105 mm
|Connector & pin hole configuration
|Fiberglass reinforced polyamide
|Fiber-glass reinforced polyamide
|Rotational Speed (+/- 10%
|Min Rotational Speed (PWM +/- 20%
|Rotational Speed @ 12V +/- 10%
|3.94 mm H2O
|Max. Input Power
|Max. Input Current
|Voltage PWM signal
|Scope of delivery
For more detailed information, please visit Noctua’s website.
If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at email@example.com or call Toll Free (877) 205-2020 for more information.
Noctua NF-F12 industrialPPC 24V 2000 SP IP67 PWM Features
Having received more than 150 awards and recommendations from the international press, Noctua’s NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
Running twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
The industrialPPC 24V SP models use Noctua's new NE-FD5 high-performance single-phase PWM motor driver IC. Thanks to its excellent commutation efficiency, the NE-FD5 enables the SP versions to achieve exactly the same performance as previous models with three-phase motors.
While the industrialPPC 24V model has been designed with 24V industrial applications in mind, it runs at a maximum speed of around 1100rpm in 12V PC environments and can be slowed down further via PWM, thus combining industrialPPC features and design with Noctua’s signature quietness.
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fiber-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fiber-glass reinforced PBT fans.
The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth.
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
The NF-F12 industrialPPC features the further optimized second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
