Description

Specifically conceived for pressure demanding applications such as CPU cooling, the classic NF-P12 120mm fan helped to found Noctua's reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua's novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua's signature SSO-Bearings and topped off with a 6 years manufacturer's warranty, the NF-P12 PWM is a proven premium choice for the highest demands.


Hide Thumbs First Previous Pause Next Last
Slideshow speed: 5 seconds

Move
Image shows the Enermax Modu82+ Quiet PSU
  • Image shows Noctua NF-R8 PWM Quiet 80mm Cooling Fan.

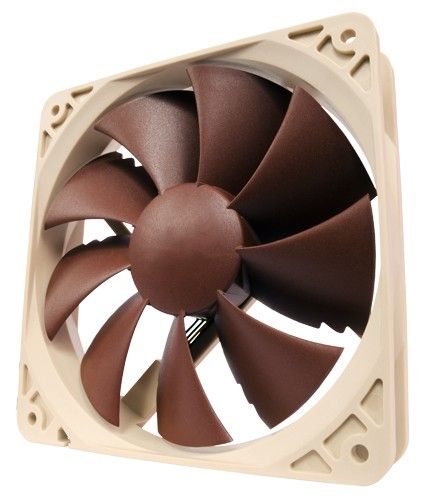

    Noctua NF-R8 PWM Quiet 80mm Cooling Fan.
  • Image shows Noctua NF-R8 PWM Quiet 80mm Cooling Fan.

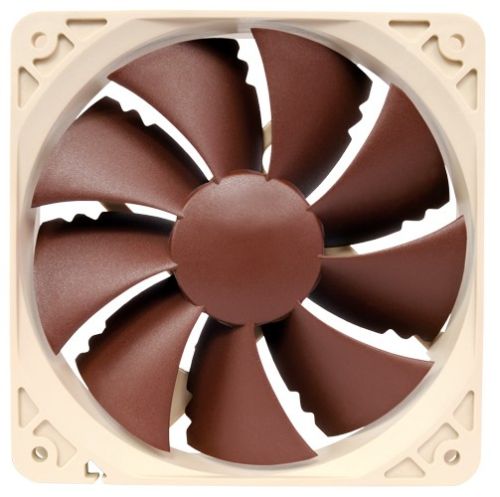

    Unique Pressure-optimized Nine-Blade Design.
  • Image shows Noctua NF-R8 PWM Quiet 80mm Cooling Fan.
    Noctua NF-R8 PWM Quiet 80mm Cooling Fan with Components and Retail Packaging.
  • Image shows Noctua NF-R8 PWM Quiet 80mm Cooling Fan.
    Noctua NF-R8 PWM Quiet 80mm Cooling Fan Retail Packaging.
Image shows Noctua NF-R8 PWM Quiet 80mm Cooling Fan.





Noctua NF-P12 PWM Technical Specification

Noctua NF-P12 PWM Product Specification
Size 120x120x25 mm
Connector 4-pin PWM
Bearing SSO2-Bearing
Blade Geometry Pressure-optimized Nine Blade Design with Vortex-Control Notches
Rotational Speed (+/- 10%) 1300 RPM
Rotational Speed with L.N.A. (+/- 10%) 300 RPM
Min. Rotational Speed (PWM)(+/- 10%) 300 RPM
Airflow 92.3 m³ / 54.33cfm
Airflow with L.N.A. 63.4m³ / 37.32cfm
Acoustical Noise 19.8 dB(A)
Acoustical Noise with L.N.A. 12.6 dB(A)
Static Pressure 1.68 mm H2O
Static Pressure with L.N.A. 1.21 mm H2O
Max. Input Power 0.6 W
Input Current 0.05 A
Voltage Range 12V
MTBF > 150,000 h
Scope of Delivery
  • Low-Noise Adapter (L.N.A.)
  • 4-Pin y_Cable
  • 30cm Extension Cable
  • 4 Vibration Compensators
  • 4 Fan Screws
Warranty 6 years

Noctua NF-P12 PWM Features

Noctua NF-P12 PWM Features
Image shows the Proven NF-P12 Design
logo.

Proven NF-P12 Design
Proven NF-P12 Design Tens of thousands of quiet cooling enthusiasts swear by Noctua's classic NF-P12. Its impressive quietness, excellent performance and impeccable, time-tested quality made the P12 a default choice for 120mm quiet cooling.

Image shows the Pressure-optimized Nine-Blade Design logo.

Pressure-optimized Nine-Blade Design
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.

Image shows the Vortex Control Notches.

Vortex Control Notches
Noctua’s signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan’s noise emission over a wider range of frequencies. This measure makes the NF-P12 PWM sound more pleasant to the human ear.

Image shows SSO Bearing logo.

SSO Bearing
Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

Image shows Custom designed PWM IC with SCD logo.

Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-P12 uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Image shows Ultra-Low Power Consumption
logo.

Ultra-Low Power Consumption
The NF-P12 draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn’t only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-P12 after 5 years of continuous use.

Image shows Low-Noise Adapter logo.

Low-Noise Adapter
The NF-P12 is supplied with a Low-Noise Adapter (L.N.A.) that reduces the maximum fan speed from 1300 to 900rpm. The L.N.A can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.

Image shows Extensive Cabling Options logo.

Extensive Cabling Options
The fan’s short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-P12 fan to the same PWM fan header for automatic control.

Image shows 6 years manufacturer’s warranty logo.

6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-P12 features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.
