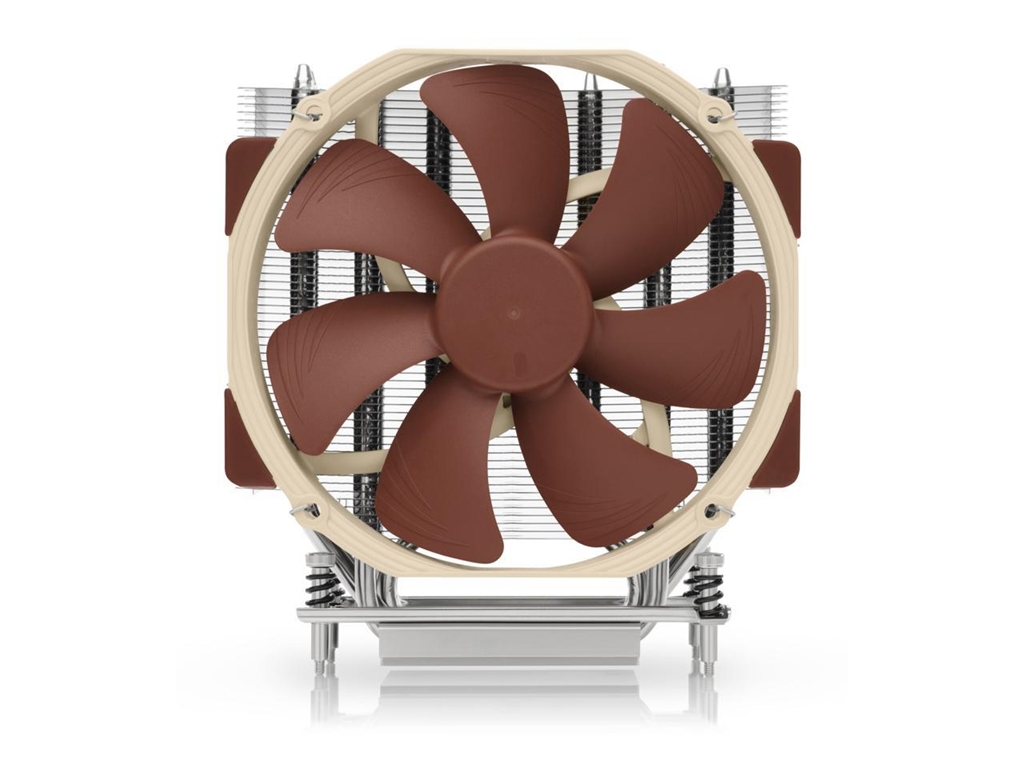

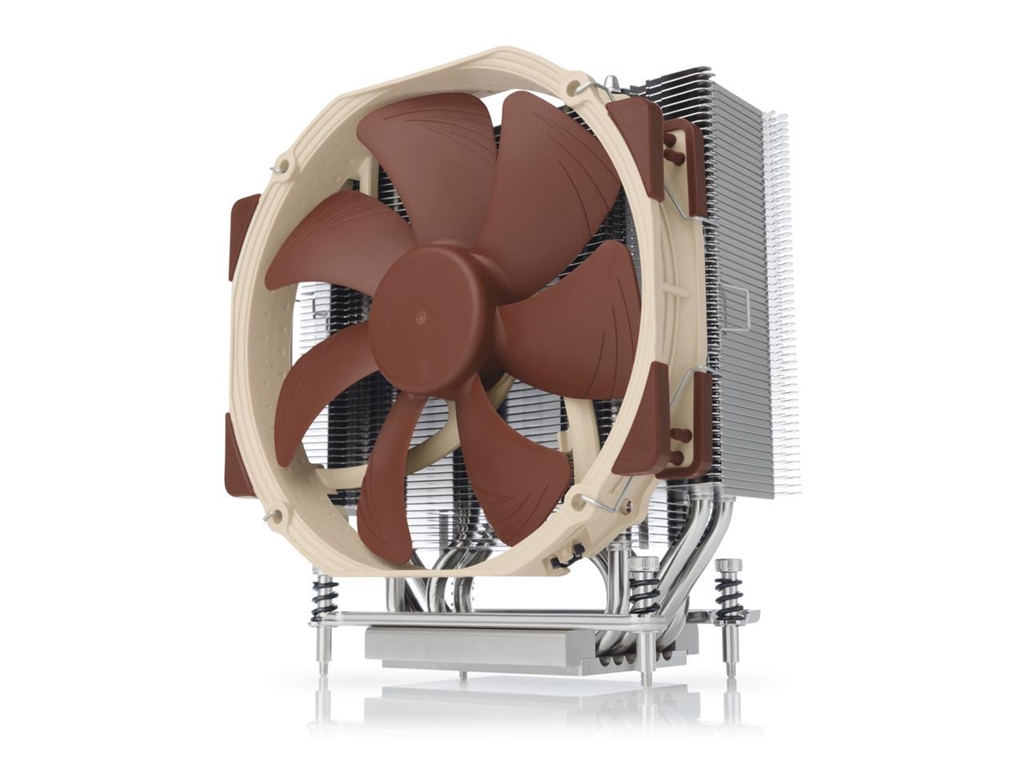

Noctua NH-U14S TR4-SP3 CPU Cooler
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U14S has become a benchmark for high-end 140mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket sTRX4/TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade sTRX4/TR4/SP3 systems.
Noctua NH-U14S TR4-SP3 Features:
Award-winning NH-U series
The NH-U14S is the first 140mm model in Noctua's award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)

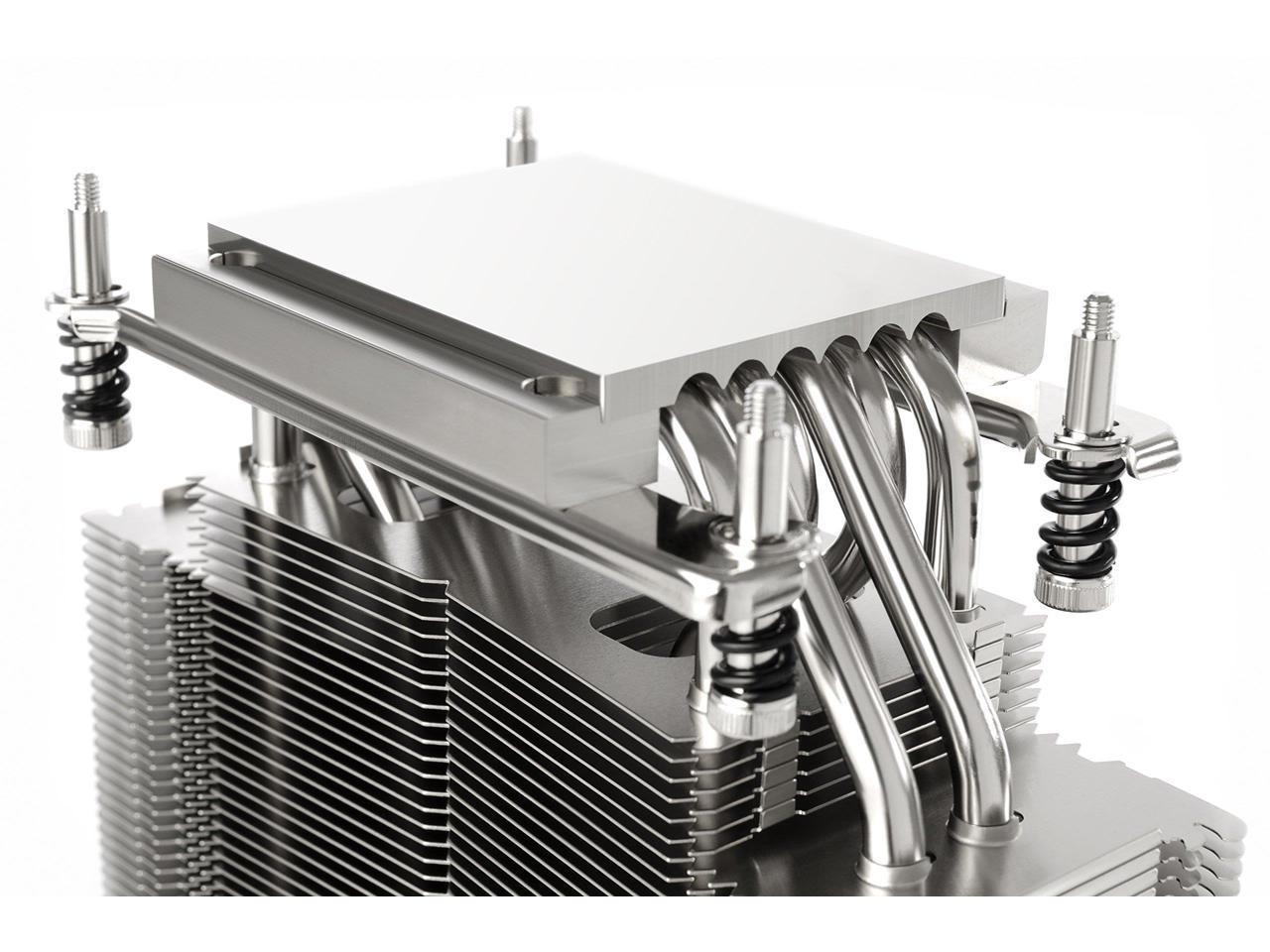

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTRX4/TR4/SP3-based processors, this customized design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
Compact 92mm size for best compatibility
Thanks to a total width of only 95mm, the NH-U9 TR4-SP3 provides 100% PCIe clearance and never overhangs the top PCIe x16 slot. At the same time, its height of only 125mm allows it to fit smaller cases and most 4U size rack-mount enclosures.
140mm size for maximum performance
With six heatpipes, a fin surface area of more than 6000cm² and the large NF-A15 140mm fan, the NH-U14S TR4-SP3 provides a superior level of cooling performance that makes it ideal for the most high-end, enthusiast-grade sTRX4/TR4/SP3 systems.
NF-A15 140mm premium fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.
PWM support and Low-Noise Adaptor
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-A15 (optional)
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*
SecuFirm2™ mounting system for sTRX4/TR4/SP3
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

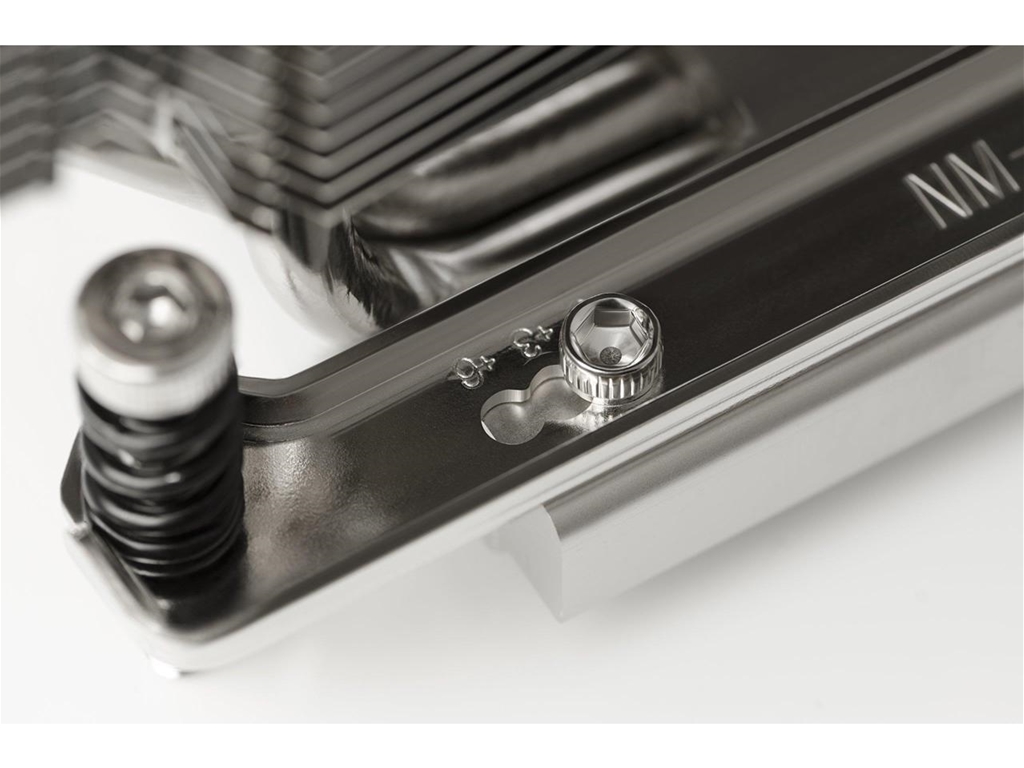

Offset mounting options for better PCIe clearance
In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2™ mounting for sTRX4/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer's warranty.
|Noctua NH-U14S TR4-SP3 Specifications|
|Socket compatibility||AMD sTRX4, TR4, SP3|
|Height (without fan)||165 mm|
|Width (without fan)||150 mm|
|Depth (without fan)||52 mm|
|Height (with fan)||165 mm|
|Width (with fan)||150 mm|
|Depth (with fan)||78 mm|
|Weight (with fan)||1030g|
|Material||Copper (base and heat-pipes), aluminum (cooling fins),
soldered joints & nickel plating
|Max. TDP||see CPU compatibility list.|
|Fan compatibility||140x150x25mm (with 120mm mounting holes),
140x140x25mm (with 120mm mounting holes),
|Scope of Delivery||
|Noctua Fan Specification|
|Model||Noctua NF-A15 PWM|
|Rotational Speed (+/- 10%)||1500 RPM|
|Max Rotational Speed with L.N.A. (+/- 10%)||1200 RPM|
|Min Rotational Speed PWM (+/- 10%)||300 RPM|
|Airflow with L.N.A.||115.5 m³/h|
|Max Acoustical Noise||24.6 dB(A)|
|Max Acoustical Noise with L.N.A.||19.2 dB(A)|
|Input Power||1.56 W|
|Voltage Range||12 V|
|MTBF||> 150.000 h|
Caution: Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
