Noctua NH-D9 DX-3647 4U Premium CPU Cooler

Price: $109.95 - Out of Stock
  • SKUNHD9DX36474U

NH-D9 DX-3647 4U Premium CPU Cooler for Xeon LGA3647

* Out of stock.

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-3647 4U features a larger, custom-designed contact surface and supports both square and narrow type LGA3647 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-3647 4U forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.

Noctua NH-D9 DX-3647 4U Features:

DX series for Intel Xeon

First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

Customized for LGA3647

The new DX-3647 line coolers are dedicated, customized solutions for Intel’s professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight’s Landing or Knight’s Mill).

Enlarged contact surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customized design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Supports square and narrow type LGA3647 sockets

The heatsink’s SecuFirm2™ mounting system includes two sets of brackets in order to support both square and narrow type LGA3647 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.

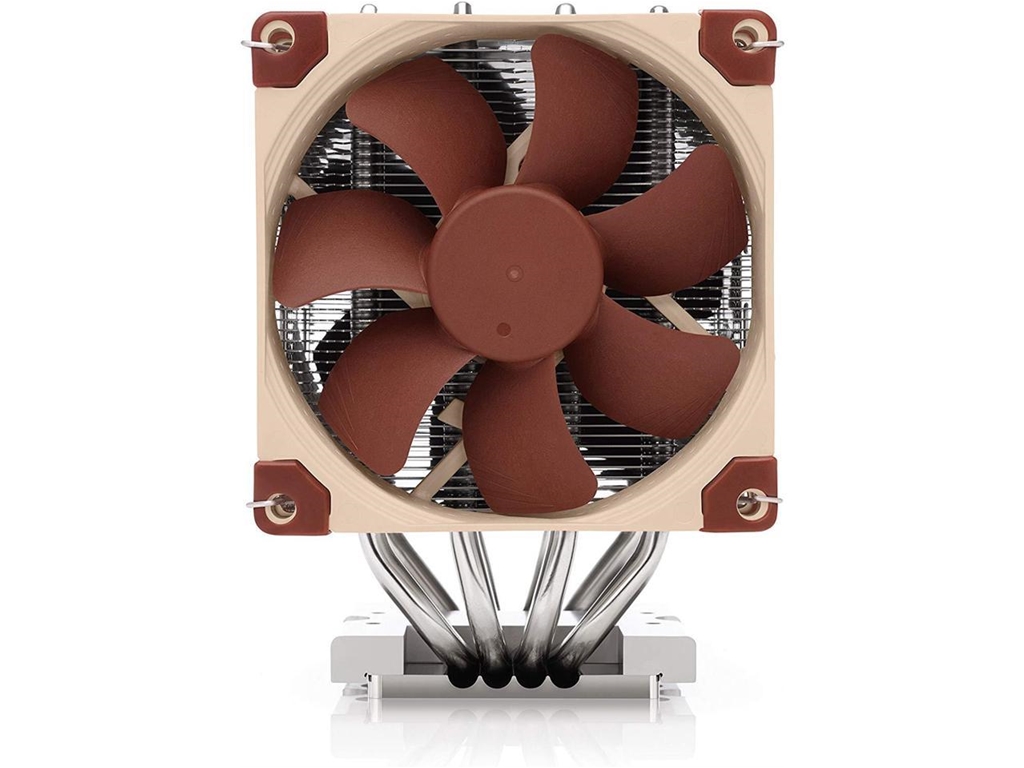

Compact 92mm size for best compatibility

Thanks to its compact footprint (95x95mm with center fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-3647 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.

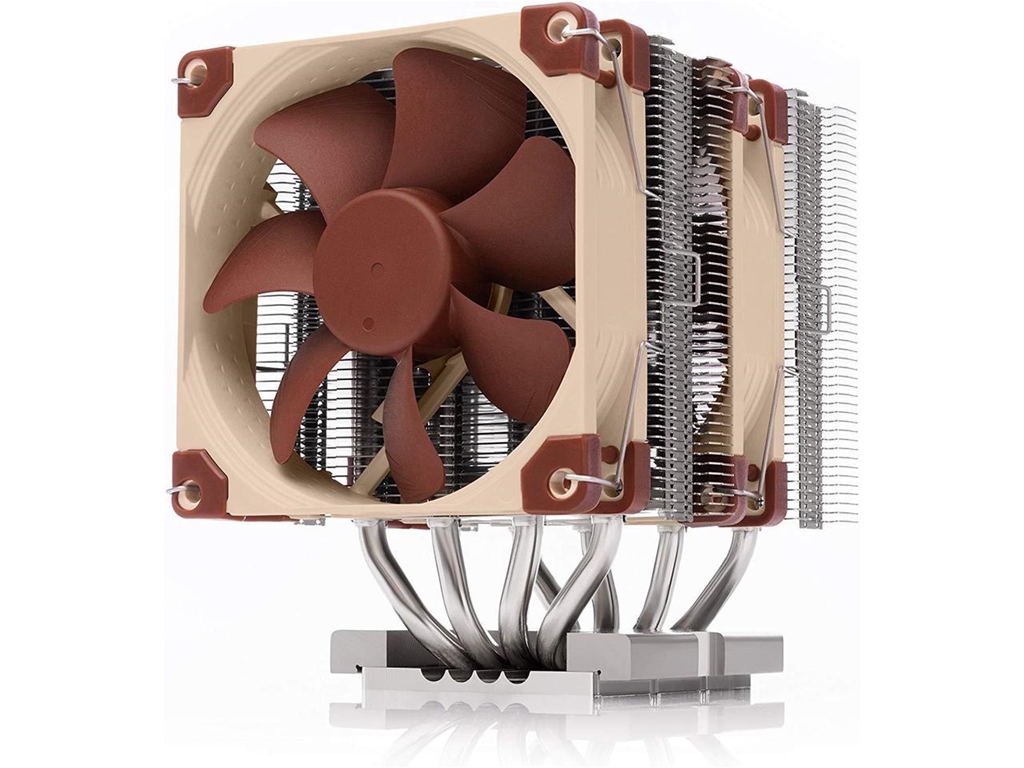

Dual NF-A9 PWM fans

The NH-D9 DX-3647 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-3647.

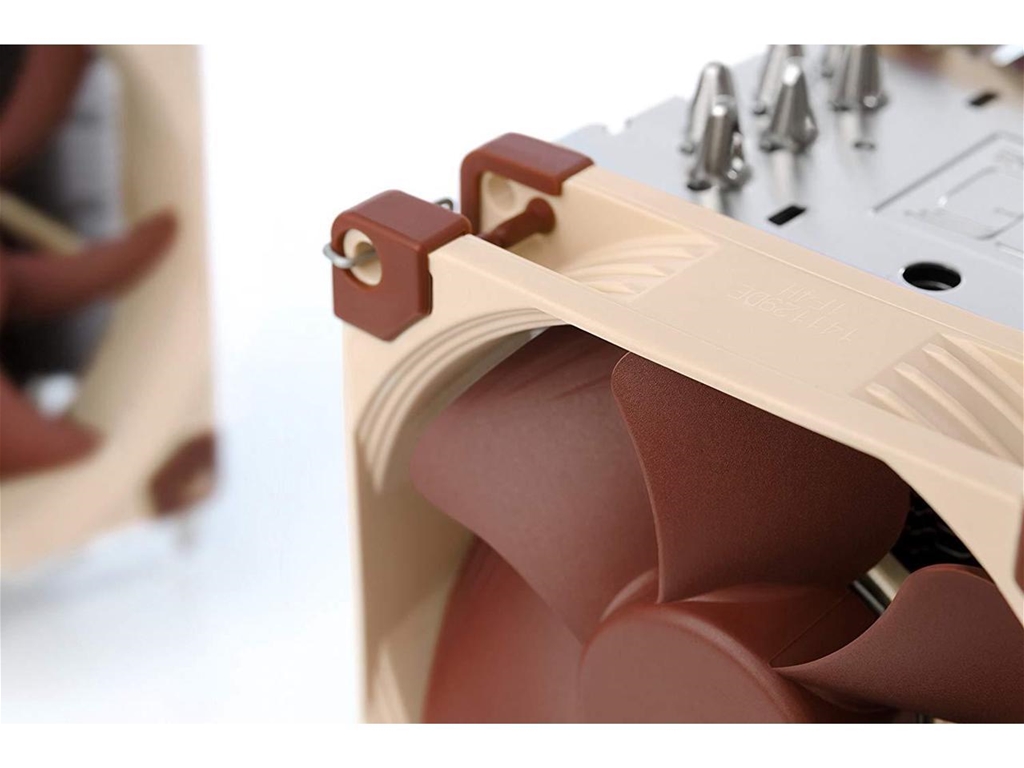

Anti-vibration pads and fan-clips for second NF-A15 (optional)

For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*

PWM support and y-cable

The NF-A9 premium fans supplied with the NH-D9 DX-3647 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.

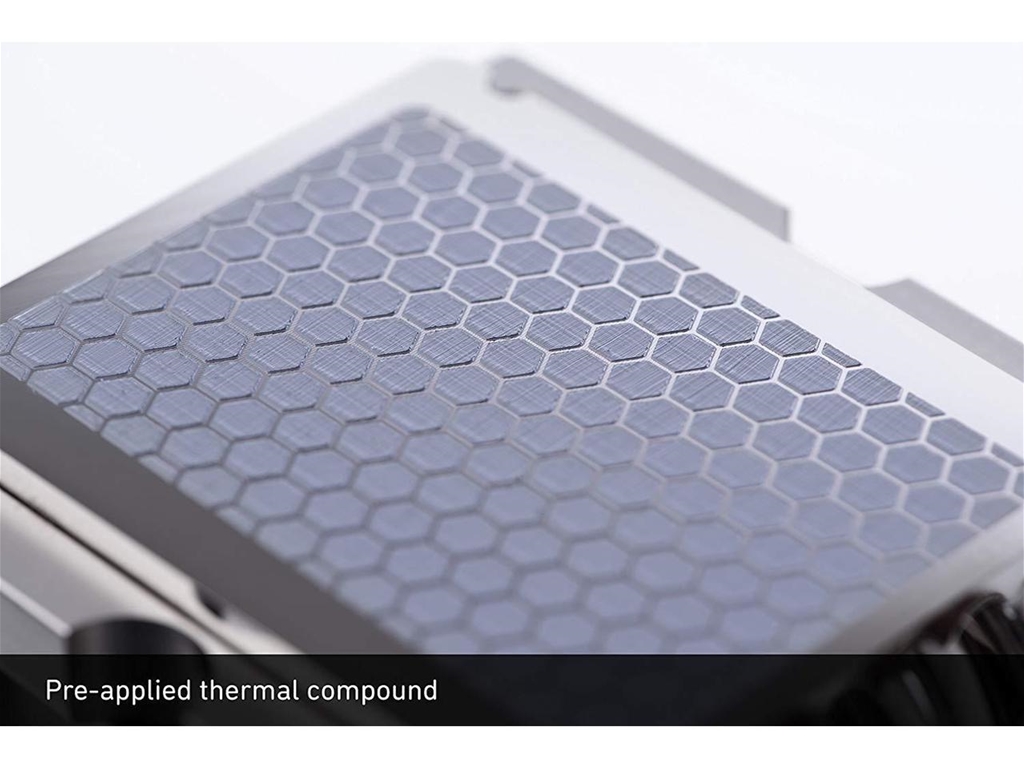

Pre-applied NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integraters!

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-D9 DX-3647 4U heatsink is built to last, and like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

Noctua NH-D9 DX-3647 4U Specifications
Socket compatibility Intel Xeon LGA3647
Height (without fan) 134 mm
Width (without fan) 95 mm
Depth (without fan) 95 mm
Height (with fan) 134 mm
Width (with fan) 95 mm
Depth (with fan) 120 mm
Weight (with fan) 769g
Material Copper (base and heat-pipes), aluminum (cooling fins),
soldered joints & nickel plating
Fan compatibility 2x 92x92x25mm HS PWM

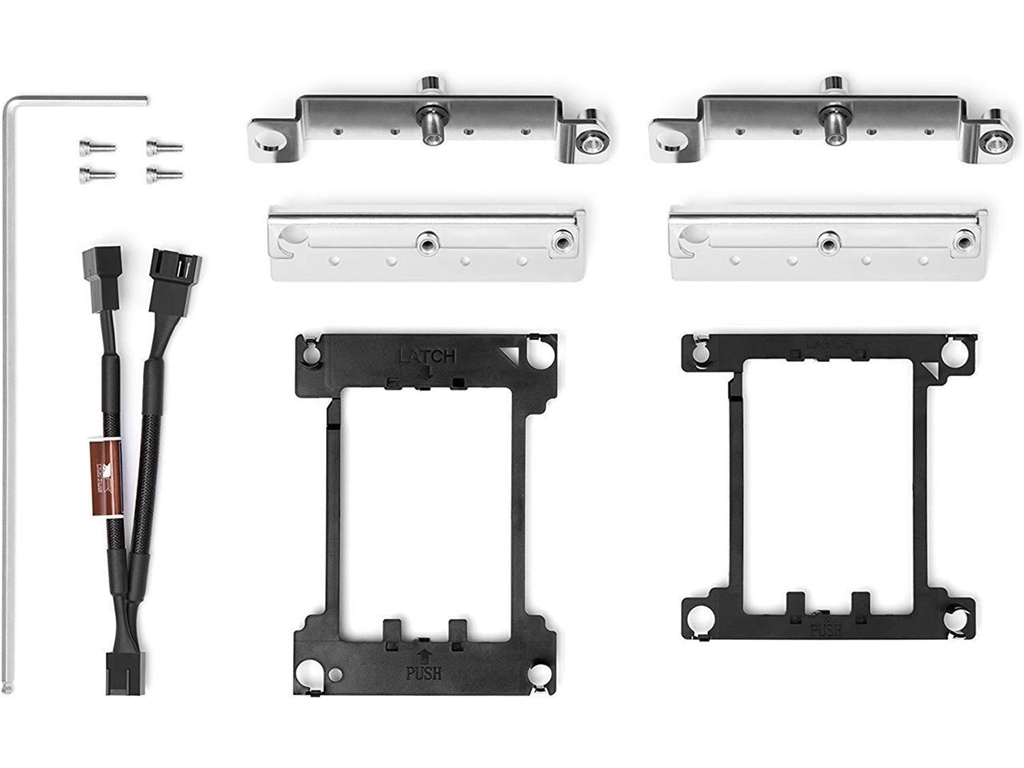

Scope of Delivery
  • 2x NF-A9 PWM premium fan
  • Y-split cable
  • Anti-vibration pads and fan-clips for second NF-A15 (optional)
  • NT-H1 high-grade thermal compound (pre-applied)
  • SecuFirm2™ mounting kit for LGA3647
  • Noctua Metal Case-Badge
Warranty 6 Years
Noctua Fan Specification
Model 2x Noctua NF-A9 HS-PWM
Bearing SSO2
Rotational Speed (+/- 10%) 2500 RPM
Min Rotational Speed PWM (+/- 20%) 400 RPM
Max Airflow 96.3 m³/h
Max Acoustical Noise 30.6 dB(A)
Input Power 1.68 W
Voltage Range 12 V
MTBF > 150.000 h

Caution: Please note that the NH-D9 DX-3647 4U is a dedicated version for the Intel LGA3647 socket. Due to its customized larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.


If you are a reseller or a system builder we offer special pricing on bulk orders of this product. Contact us at sales@quietpcusa.com or call Toll Free (877) 205-2020 for more information.
