Description

The CS-60 is a midi-sized computer case that is perfectly suited to house a fanless PC system although it can of course be used as a conventional PC case too. The main reason for its appeal as the basis for a fanless PC is its many perforated ventilation holes, as you can see from the photograph. These holes allow the warm air generated by the system to be easily and quickly removed from the case without the use of any fans!

The layout out of the case is unconventional in that the ATX power supply is installed toward the bottom of the case, which allows the hot air from the power supply to rise through natural convection. The case is designed to accommodate a Micro ATX sized motherboard only.


Hide Thumbs First Previous Pause Next Last
Slideshow speed: 5 seconds

Move

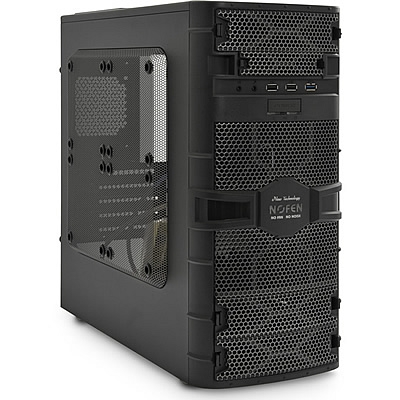

  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan CS-60 mATX Quiet Computer Case
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan CS-60 mATX Quiet Computer Case
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan CS-60 mATX Quiet Computer Case
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan CS-60 mATX Quiet Computer Case
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Stylish curved front design
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    2x USB 2.0, 1x USB 3.0, audio and microphone terminals are easily accessible on the front panel.
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan front panel logo
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    HDD and ODD mounting ports
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    HDD and ODD mounting ports can be extended for easy access.
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Airflow holes throughout the case surface allow for maximum heat exchange with outside air.
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Case top is designed to maximise the cooling performance of a noise-free CPU cooler
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Outside view of tool-free extension slots
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Close up of case feet
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Punched plate on base to allow maximum convection cooling efficiency
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    NoFan CS-60 mATX Quiet Computer Case interior
  • Image shows the NoFan CS-60 mATX Quiet Computer Case
    Tool free HDD installation
Image shows the NoFan CS-60 mATX Quiet Computer Case.



NoFan CS-60 mATX Computer Case Features



  • Ideal mid-size PC case for a fanless/IcePipe PC
  • Compatible with Micro ATX motherboards
  • Excellent quality and sturdy construction
  • Offers convenient front ports: Audio, USB 3.0 and dual USB 2.0
  • 5.1 x 3½" plus 3 x 5¼" drive bays
  • Capable of supporting up to four SSDs


NoFan CS-60 mATX Computer Case Specification



 Technical Specification
Case model
Nofan CS-60
Motherboard compatibility
Micro ATX and Mini ITX
Front USB ports
2 x USB2, 1 x USB3
Front audio ports
Headphone and microphone 3.5mm jacks
3½ / 5¼ inch drive bays
1 / 3
Dimensions (W x D x H)
196 x 426 x 430 mm
Expansion Slots
5
VGA Compatibility
Second PCI-E
Weight
4.2Kg
Maximum PCI card length (PCB only)
330 mm
Warranty
24 months
EAN barcode
8809318200032



NoFan CS-60 mATX Computer Case Components



Image shows the NoFan CS-60 mATX  Computer Case components.
  • Main body
  • Stand (front side 1 / rear side 1)
  • CPU 12V extended cable 1
  • Stand-Off 11
  • A bolt (PH 6-32*12) 12 [HDD fixed]
  • B bolt (PH 6-32*6) 24 [M/B, PSU fixed]
  • C bolt (PWH M3*12) 4 [Foot embedded]
  • D bolt(PWH M3*6) 4 [SSD embedded]
  • Cable tie 10
  • HDD pad
  • User guide
  • Please note: Power supply is not included with case.

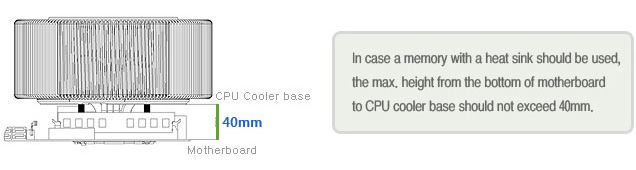

RAM Compatibility

RAM Compatibility
