Streacom DB4 Fanless Chassis
* In stock.

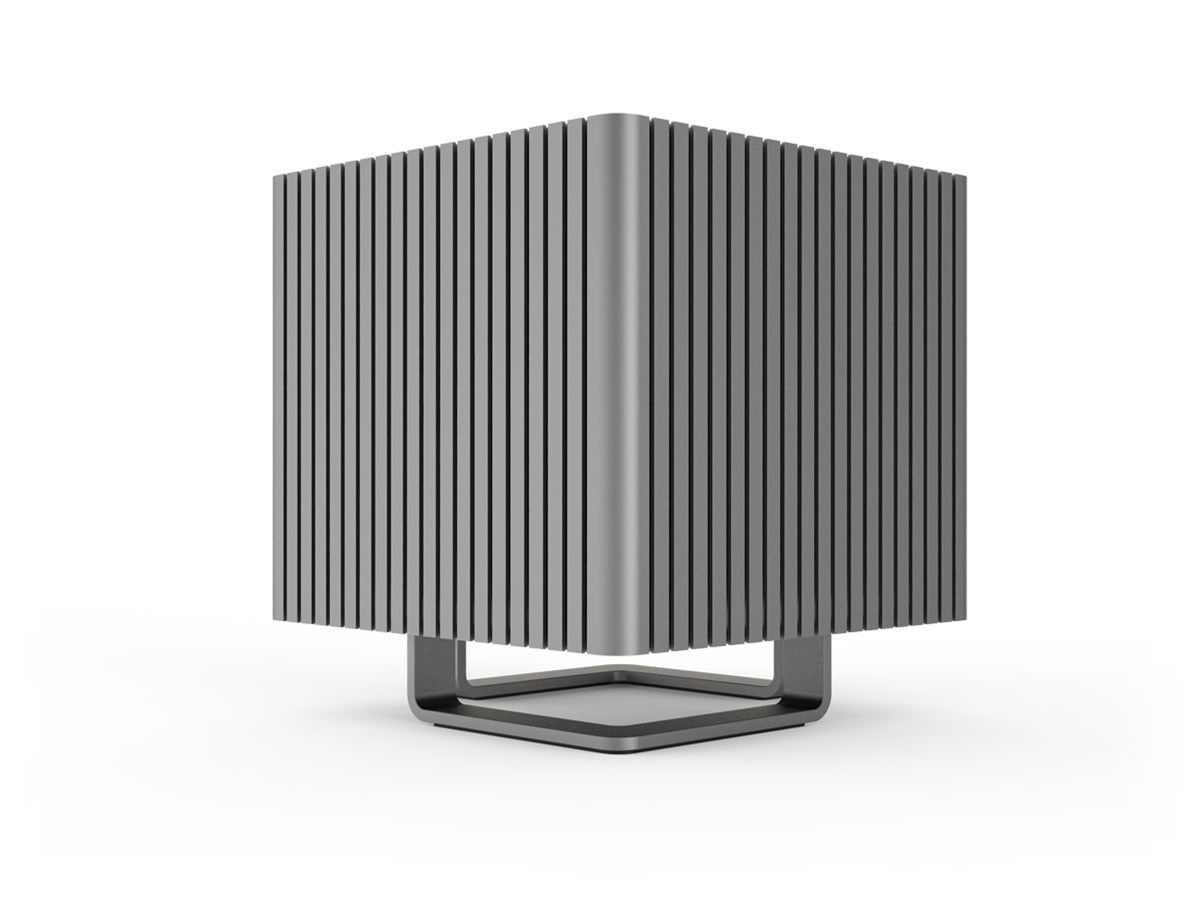

Introducing the DB4, Streacom's most ambitious fanless case to date, featuring a bi-symmetrical design that is uniquely bold and blurs the line between technology and art.
With the DB4 we set out to not only redefine what a PC case could look like, but the performance and compatibility achievable from a fanless solution. Every element of this case subtly screams premium, from the 13mm thick extruded aluminum side panels to the precision CNC’d internal frame, all perfectly blended together with the Streacom characteristically understated design tone.
Features
- An elegant and sophisticated all aluminum chassis
- Compatible with mini-ITX motherboards
- Passively cooled CPU and power supply
- Designed for efficient fanless cooling

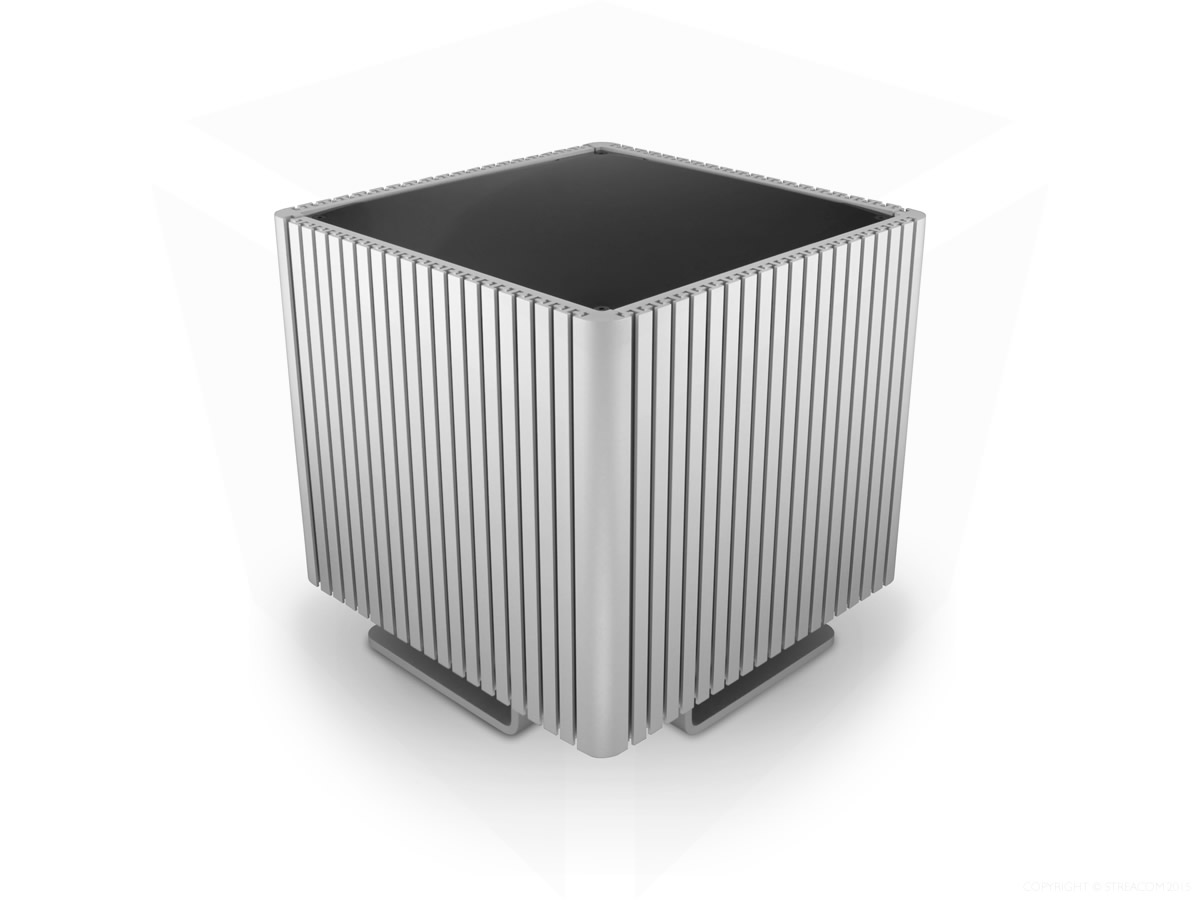

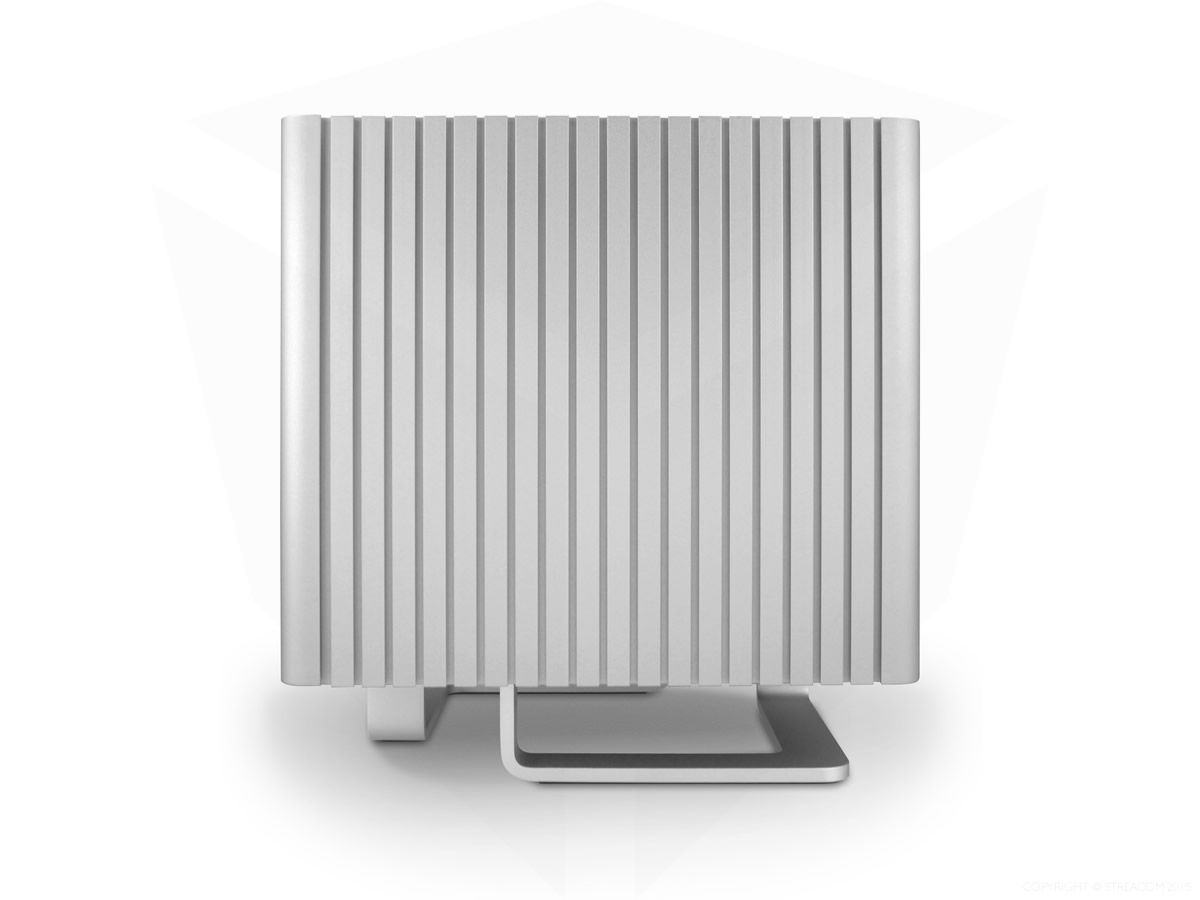

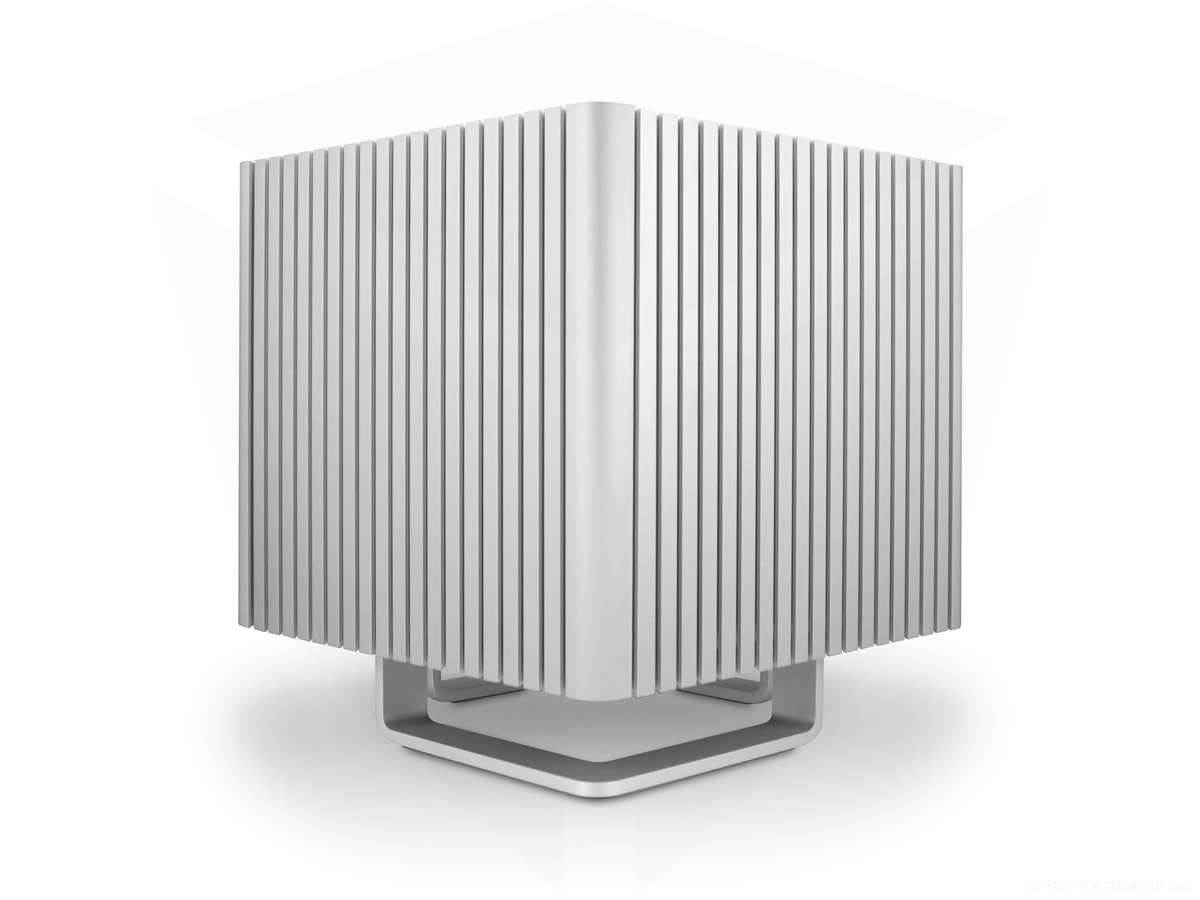

The identical sides of the case serve both as the striking monolithic exterior and the convection surface (or heat sink) for component cooling and is the basis of its fanless operation. The challenge was to create an efficient heat sink that didn’t look industrial, one that would actually be integral to the sleek exterior, and the result speaks for itself. Each side can handle 65W of heat dissipation and can be coupled to provide 110W of total CPU cooling.
Options to consider
- For CPU's with a TDP above 65W the Streacom ST-LH6 CPU Heatpipe Kit is recommended and this kit increases the TDP to 110W.
- For passive cooling your GPU consider the Streacom ST-DB4 GPU Cooling Kit.

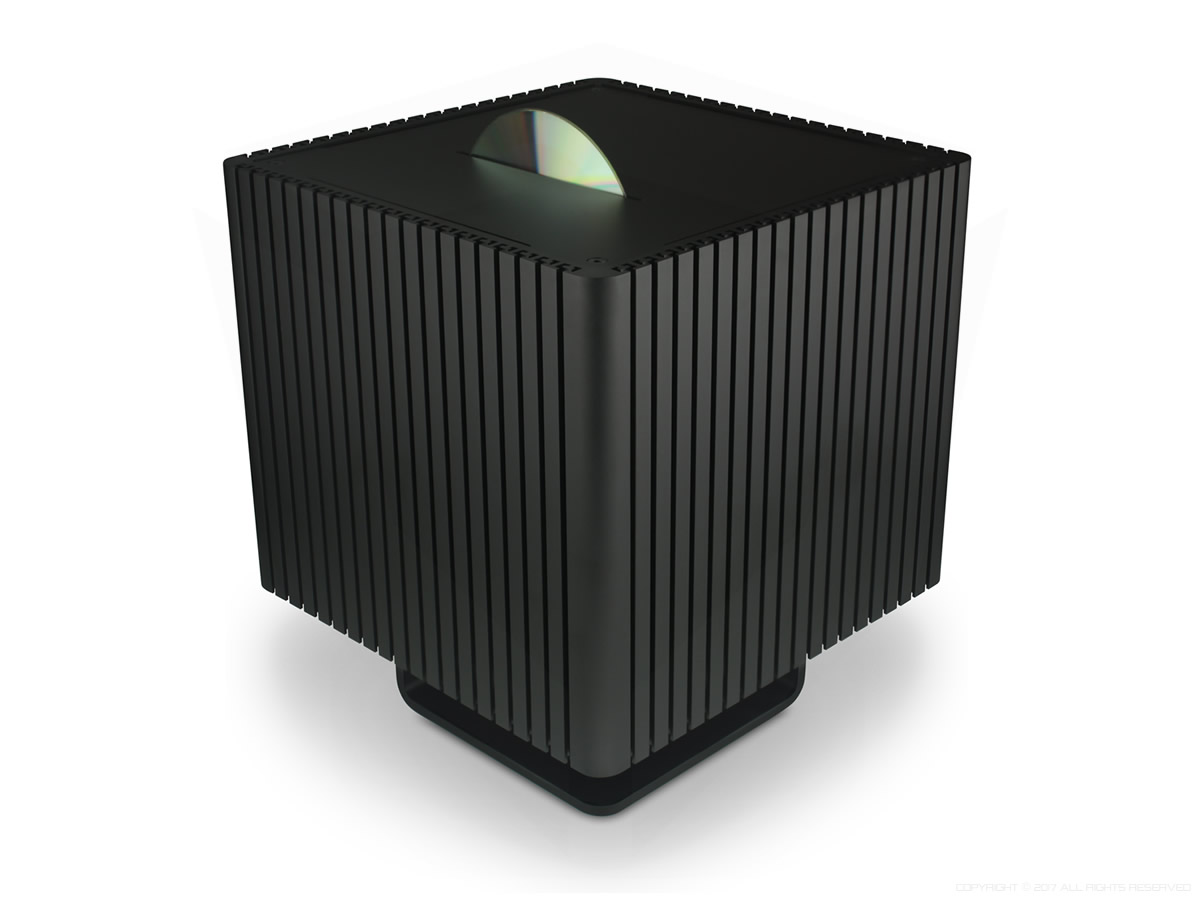

- If building your system with an optical drive the Streacom ST-ODD Kit is available. The DB4 as standard does not have an optical drive slot.
Beyond simply looking impressive, the DB4 solves one of the biggest complexities of building a fanless case.
Traditionally motherboard choice is limited and alternative heat pipes might be required depending on layout, but

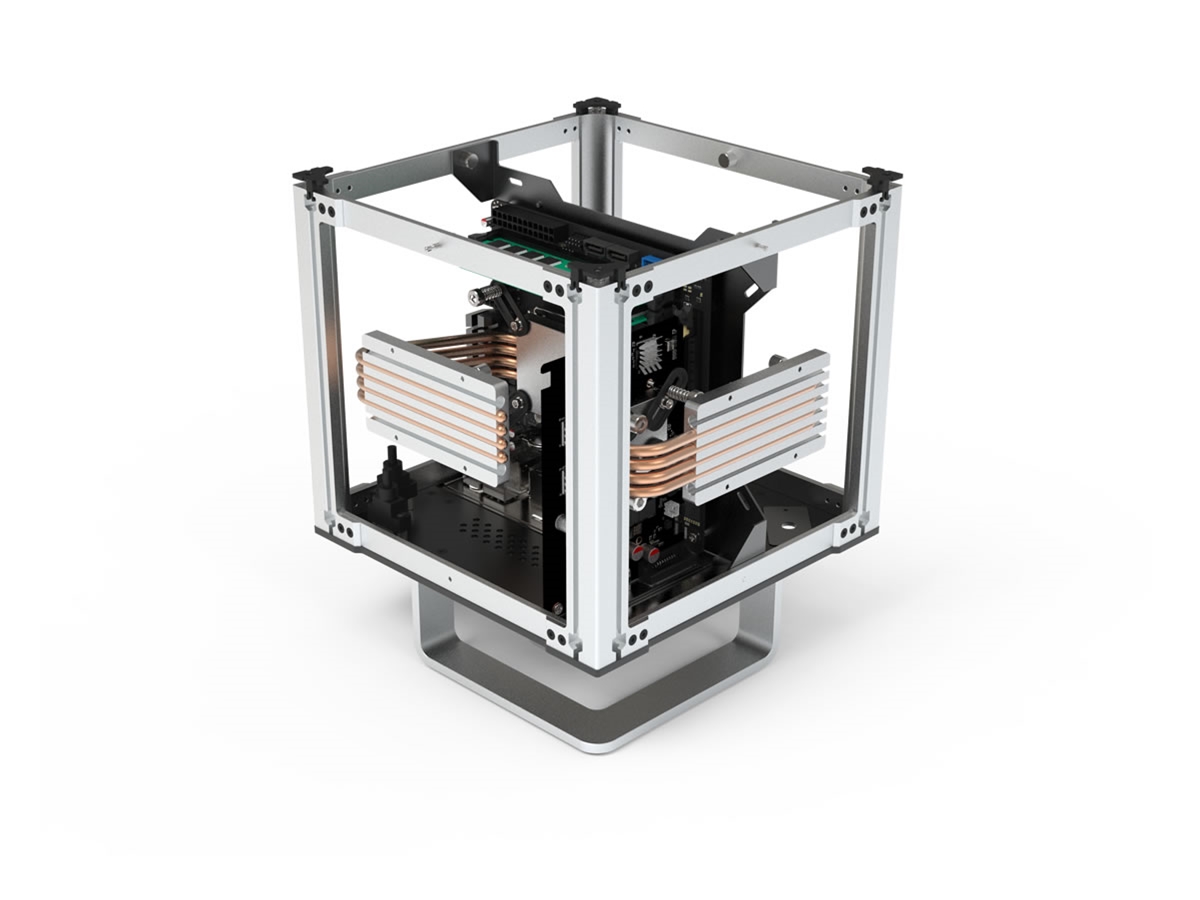

the DB4 rewrites the rules. With both the motherboard and side panels being parallel, the heat pipes run
perpendicular, away from any components and in combination with the flexibility of the universal bracket, means that
virtually all ITX motherboard are compatible with the case.
Our existing CPU mount has also been
re-engineered to be adjustable and universally compatible with any socket. It now features a copper shim interface
between the IHS and heat pipes which creates a more efficient all copper thermal path to the heat sink, greatly

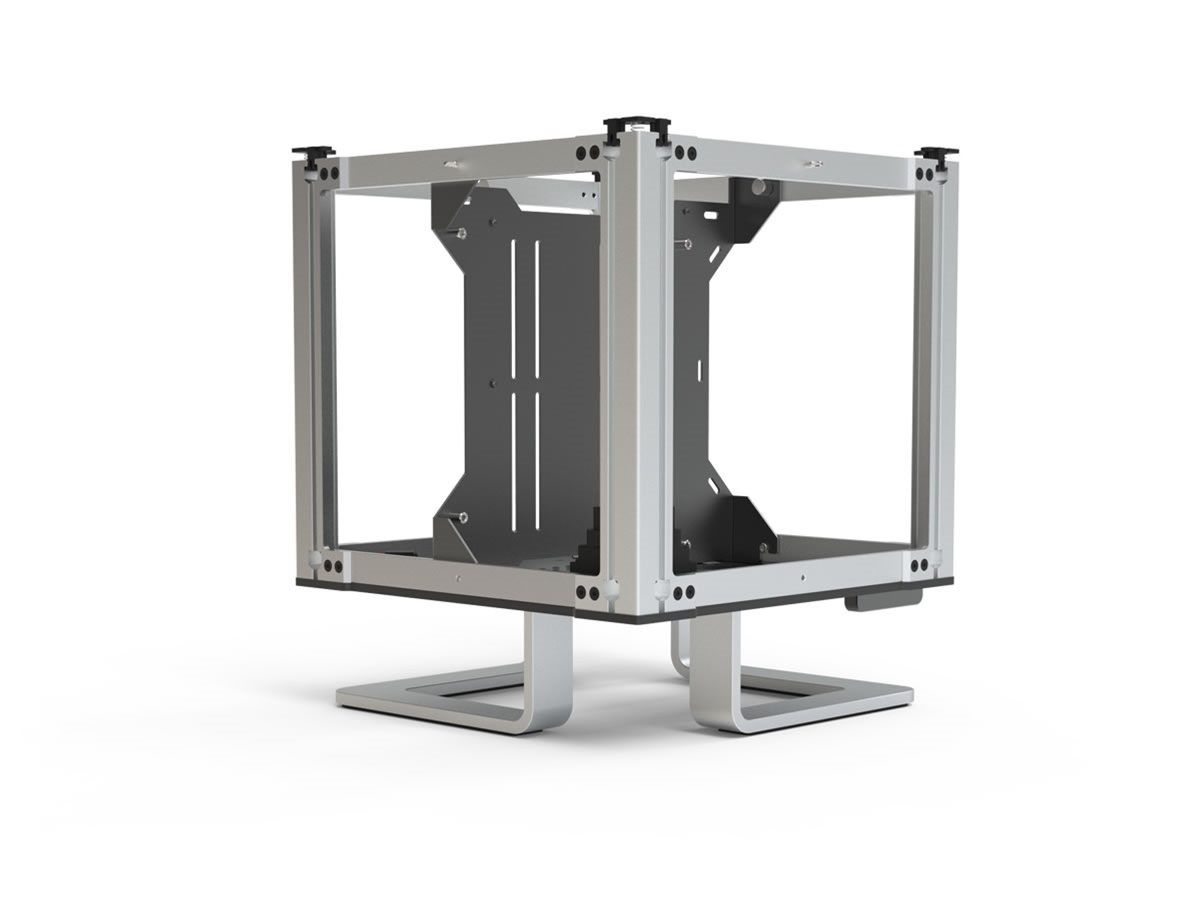

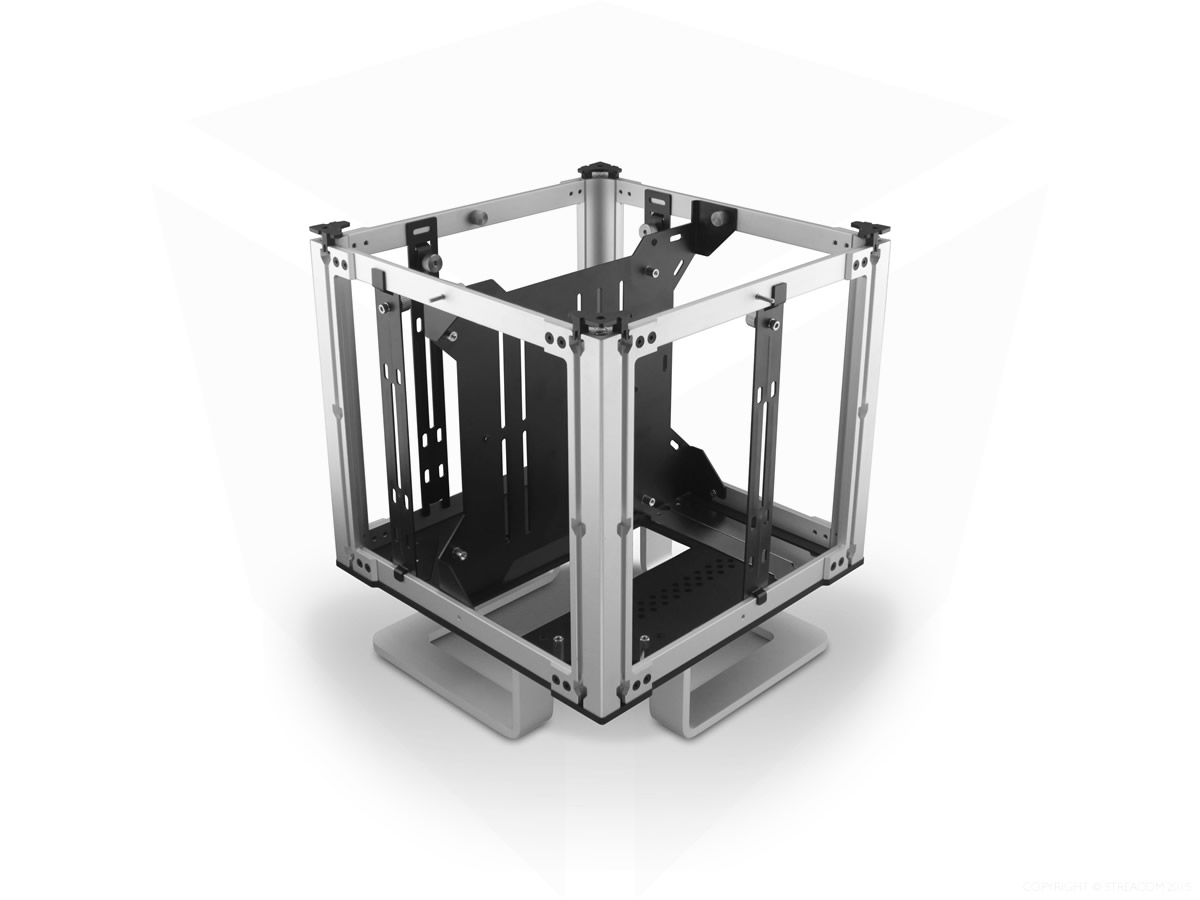

improving cooling performance. To make assembly easier, all the side panels are removable, as is the motherboard
tray, leaving an open frame with plenty of accessibility.
Building on the innovation of our F12C,
components are fitted using a universal bracket system that supports, drives, heat sink mounts and the ZF240,
allowing components to be mounted anywhere along the frame of the case, delivering a truly modular and flexible
layout.
The DB4 measures 260 x 260 x 270mm but still manages to accommodate an ITX motherboard, a dual slot
full height PCI card (max 200mm), up to 5 x 3.5” or 12 x 2.5” drives (lots of combinations in between), and can be
powered by our Nano or ZeroFlex PSU solutions.
Specifications
| Streacom DB4 Fanless Chassis Specifications | |||
|---|---|---|---|
| Model |
DB4
|
||
| Chassis Material |
Premium Grade (6063) All Aluminum, 4mm Thick Extruded Panels
|
||
| Chassis Finish |

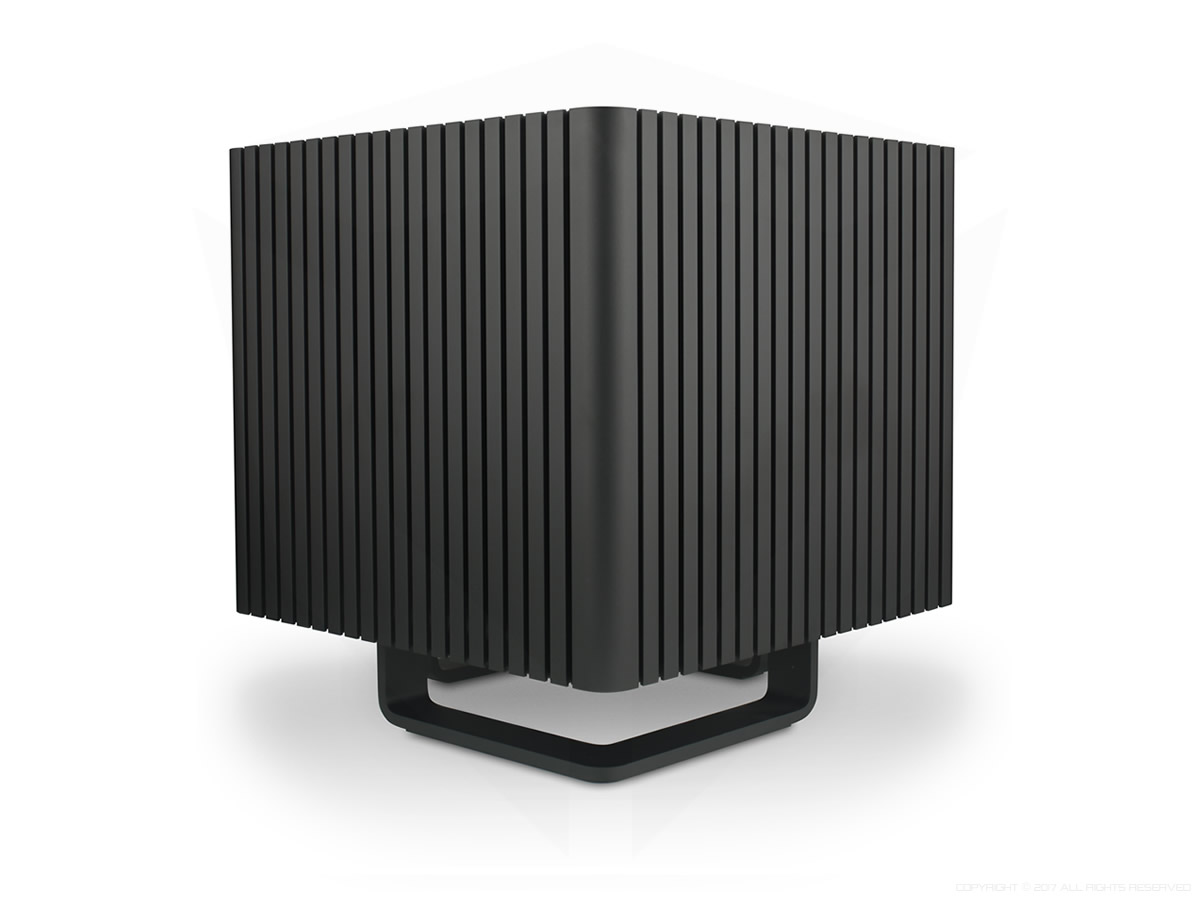

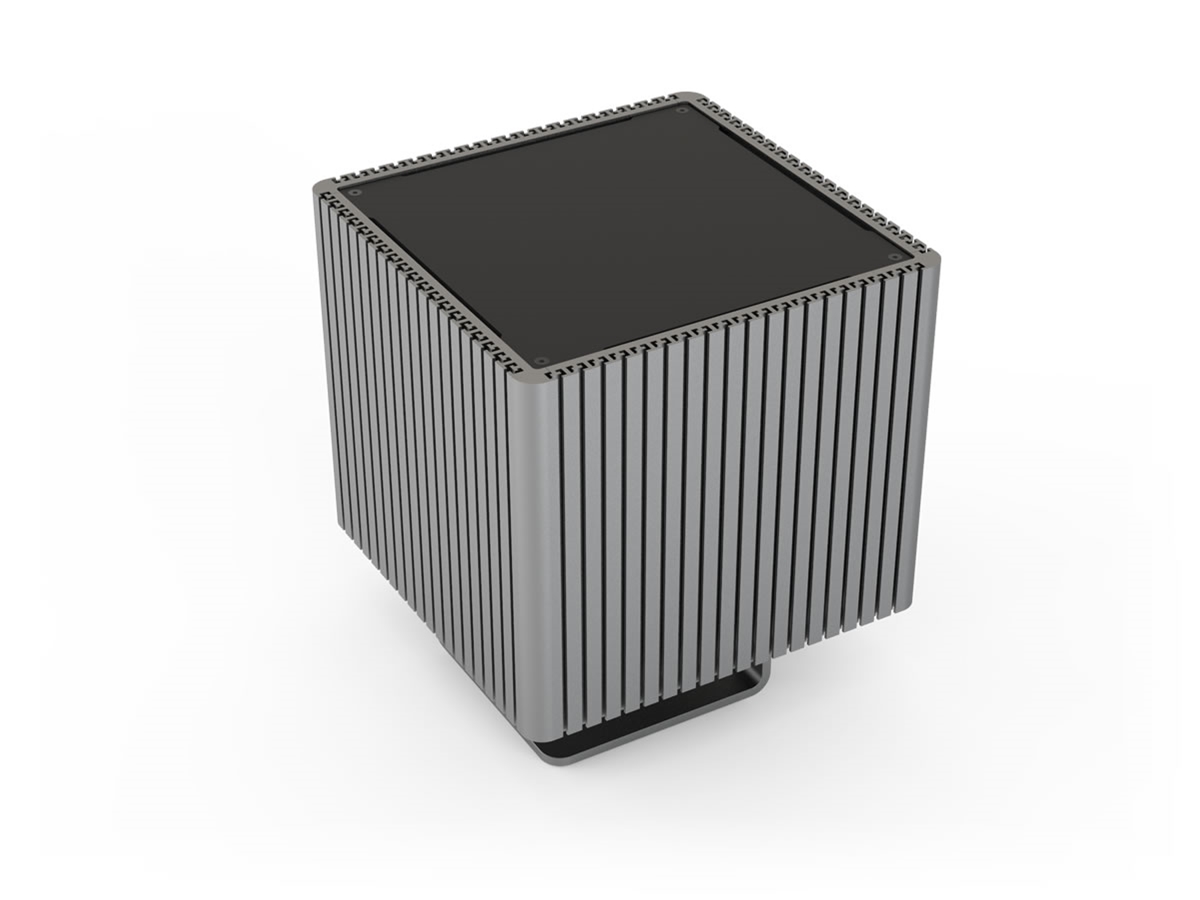

Silver, Black, Titanium - Sandblast Finish
|
||
| Motherboard Support |
Mini-ITX
|
||
| Drive Capacity |
Maximum 5 x 3.5" or 12 x 2.5" *
|
||
| Optical Drive Bays |
Optical Kit for slim slot loading
drive
|
||
| USB Ports |
2 x USB3.0, Bottom Facing
|
||
| Expansion Slot |
2 x Full Height Slots (MAX 200mm Length, 110mm Height)
|
||
| Cooling |
4 x 6mm Heatpipes with 65W / Side Panel,
Expandable to
110W**
|
||
| Power Supply |
ZF240
ZeroFlex or Nano
Series PSU (Not Included)
|
||
| External Dimensions |
260 x 260 x 270mm (W x D x H)
|
||
| Remote Control |
None
|
||
| Net Weight |
7.5kg - 9.7lbs
|
||
| Silver |
EAN: 8718469090457
|
||
| Black |
EAN: 8718469090464
|
||
| Titanium |
EAN: 8718469091492
|
||
* Many different combinations of both
** Additional LH6 heatpipes required. As
with any passive cooling solution, environmental conditions will have an impact on the performance. A location
with adequate air flow and moderate ambient room temperature is required.
