Other products by GizMac
Item #: GM6UP
Reg. Price: $999.99
Our Price: $949.95
Quantity:


Description

The XRackPro2 Rackmount Cabinet is a rackmount enclosure specially designed for noise reduction and security. Rackmount equipment such as 19 inch computer servers and RAID storage become whisper quiet, whilst the lockable doors provide protection for the installed equipment. The XRackPro2 quiet cabinet is available in platinum or black, in a range of sizes - 4U, 6U, 12U & 25U.

Solidly built and providing 4U of industry standard 19" (48.2 cm) wide rackmount cabinet space, the second generation XRackPro 4U is an ideal server rack and computer cabinet for Apple (Xserve server and Xserve RAID), Windows (Dell, HP, IBM, etc.), Linux, Sun, SGI and other PC computer rackmount servers and storage.

Using fully adjustable mounting rails, the XRackPro2 can be configured for individual requirements. Each 1U of rackmount space is clearly marked and cables can be neatly arranged, for ease of set up.


Hide Thumbs First Previous Pause Next Last
Slideshow speed: 5 seconds

Move
  • Image shows XRackPro2 Quiet Rackmount Cabinet.
    XRackPro2 25U Black Quiet Rackmount Cabinet.
  • Image shows the front view of the XRackPro2 25U Platinum Quiet Rack Cabinet.
    Front view of the XRackPro2 25U showing the rear cooling fans.
  • Image shows the front and side view of the XRackPro2 25U Platinum Quiet Rack Cabinet.
    Front and side view of theXRackPro2 25U quiet 19" cabinet.
  • Image shows side view of the XRackPro2 25U Platinum Quiet Rack Cabinet.
    XRackPro2 25U quiet enclosure with side panel removed.
  • Image shows close up of the glass door mechanism.
    View of the lockable glass door and opening mechanism.
  • Image shows rear view with door open.
    The ultra-quiet fans at the rear provide assisted cooling.
  • Image shows XrackPro2 25U with rear door open.
    Rear door with external view of the six ultra-quiet cooling fans.
  • Image shows the air intake at the base of the cabinet.
    The air intake and dust filter at the base of the cabinet.
  • Image shows the XRackPro2 25U Dust Filter.
    The XRackPro2 25U dust filter.
  • Image shows numbered mounting rails.
    Numbered mounting rails for easy installation and use.
  • Image shows the front locking castors.
    Heavy duty front locking castors.
e



Noise from rackmount systems mounted inside the XRackPro2 will be reduced by as much as 80% from the sound dampening design while keeping everything cool at the same time. The interior of the rackmount enclosure is lined with high quality acoustic materials and ultra-quiet fans at the rear of the cabinet provide assisted air-flow for cooling without increasing noise levels.

XRackPro2 is constructed from heavy duty steel and all rackmount servers, storage solutions and other equipment stay visible through the sealed glass front door. Superior strength, carpet safe caster rollers are used to create a rolling rackmount enclosure that is sturdy, yet easy to move when needed. The industrial strength front casters can be locked in to position when the XRackPro2 rack mount enclosure is moved to a desired location, and can be unlocked again later if relocation is needed. Twenty-four cage nuts and screws are included to mount an initial installation of rackmount computer servers, disk arrays, etc.

With the benefits of noise reduction and optional mobility that the XRackPro2 provides, rack mount servers, RAID systems and other components can now be used in environments where they could not before. Video and audio suites, production and creative departments, hospitals, libraries and other locations that need to keep sound levels down can benefit from this innovative product.

Made in the USA

Each XRackPro cabinet is supplied with a dust filter

Each XRackPro2 cabinet is supplied with a dust filter.

Specifications

XRackPro2 Quiet Rackmount Cabinet Specifications
Product Code
XRP2-4U
XRP2-6U
XRP2-12U
XRP2-25U
Maximum Recommended Vertical Capacity
(1U = 44.45mm)
4U
6U
12U
25U
External Cabinet Dimensions in mm
(Height/Width/Depth)
336 x 609 x 939 (including leveler legs supplied as standard)
425 x 609 x 939 (including leveler legs supplied as standard)
731 x 612 x 930 (including castors supplied as standard)
1422 x 609 x 939 (including castors supplied as standard)

362 x 609 x 939 (with optional castors)
450 x 609 x 939 (with optional castors)

Product Weight in lbs:
87
99
145
269
Shipping Weight in lbs:
93
110
175
299
Quiet Cooling Fans
1
2
4
6
Included Accessories

4 Heavy-Duty Surface-Safe Leveler Legs (stackable)

8 x Fixing Nuts/Bolts

Standard Power Cord, 110V

4 Heavy-Duty Surface-Safe Leveler Legs (stackable)

16 x Fixing Nuts/Bolts

Standard Power Cord, 110 V

4 Heavy-Duty Carpet-Safe Castors (2 Locking Swivel, 2 Fixed)

24 x Fixing Nuts/Bolts

Standard Power Cord, 110 V

4 Heavy-Duty Carpet-Safe Castors (2 Locking Swivel, 2 Fixed)

48 x Fixing Nuts/Bolts

Standard Power Cord, 110 V

Integrated Cable Management

Cable Access
1 floor cable access point
3 top and 3 floor cable access points
Useable Depth
812mm
Cabinet Finish
Baked enamel finish in Platinum or Black
Cabinet Features

Heavy Duty Steel Construction

Quick Release, Key-locking front and rear doors

Sealed Glass front door

User-customizable air intake system (25U only)

4 fully adjustable 19” Standard EIA/NEMA rails with U position labels

Dust Ingress Protection
Air Filter (fitted to cabinet air intake)
Access
12U & 25U have removable locking side panels
Delivery
Delivered fully assembled and ready to go

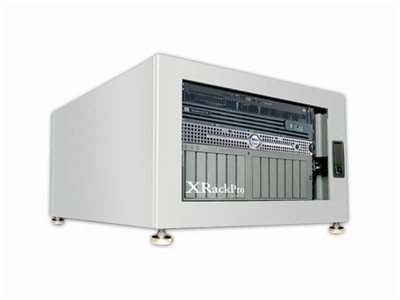

XRackPro2 6U Features

  • Desk-height enclosure with positive ventilation
  • Acoustically engineered to reduce noise
  • 19" (48.2 cm) Standard EIA/NEMA rails
  • 32" (81.2 cm) Maximum Equipment Depth
  • Ultra-Quiet Fans
  • Heavy-Duty adjustable height legs
  • Fully adjustable mounting rails with U position labels
  • Key-Lock Security on doors
  • Ships fully assembled and ready to use
  • Ideal for Audio/Video creative environments

Shipping charges:

  • 4U - $108.00
  • 6U - $165.00
  • 12U - $265.00
  • 25U - $370.00
  • Major metropolitan areas may have higher cost - please call.
  • Liftgate Truck (Freight company requires if no dock is available for freight unloading) - Add $139.00
  • Inside Delivery (Freight company requires if XRackPro is delivered inside of a building) - Add $73.00

Now Available in Custom Colors

XRackPro2 Racks are now available in a wide variety custom powder coated color options. Please contact sales@quietpcusa.com or call toll free 877-205-2020877-205-2020 for pricing and ordering information.
